200AWMSP1 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE SPDT 3A 120V

Part	Electrical Life	Actuator Material	Actuator Length [x]	Illumination	Ingress Protection	Termination Style	Actuator Type	Bushing Thread	Circuit	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Switch Function	Voltage Rating - AC	Voltage Rating - DC

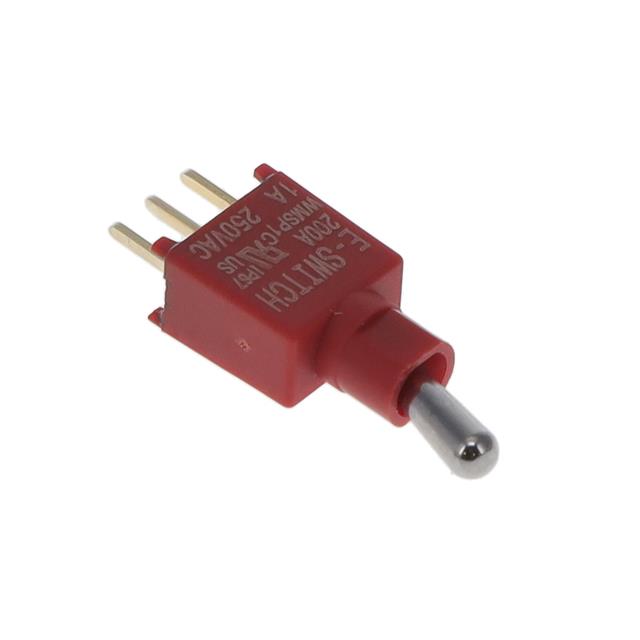

E-Switch 200AWMSP1T2A1M2QE	50000 Cycles	Brass Chrome Plated	6.1 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	PC Pin	Standard Round	Unthreaded	SPDT	Through Hole	3 A	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	120 V	28 V
E-Switch 200AWMSP1T2A1VS2QE	50000 Cycles	Brass Chrome Plated	6.1 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	PC Pin	Standard Round	Unthreaded	SPDT	Through Hole	3 A	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	120 V	28 V

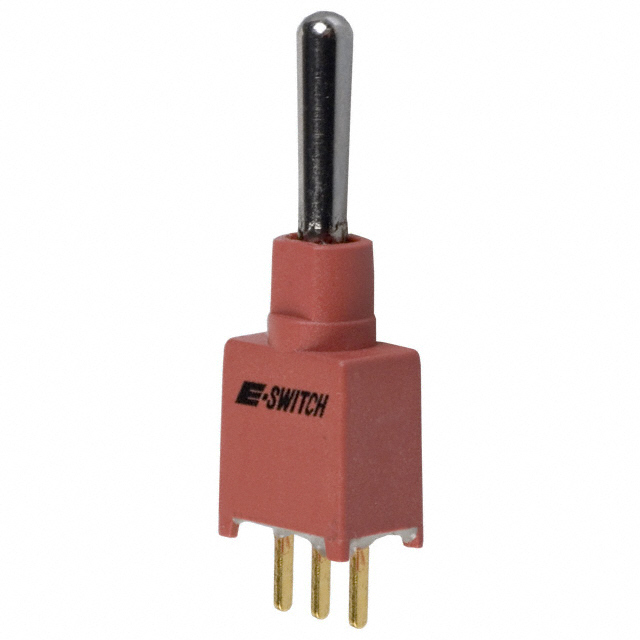

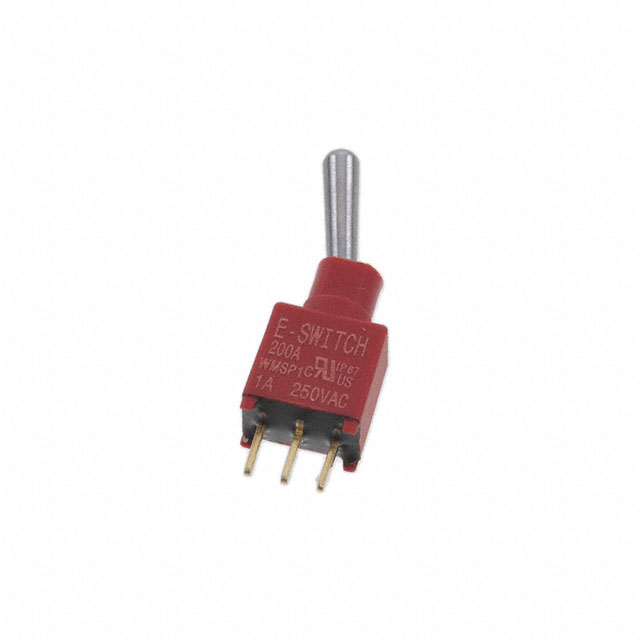

E-Switch 200AWMSP1T1A1M2QE	50000 Cycles	Brass Chrome Plated	10.16 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	PC Pin	Standard Round	Unthreaded	SPDT	Through Hole	3 A	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	120 V	28 V
E-Switch 200AWMSP1T1A1M2RE	50000 Cycles	Brass Chrome Plated	10.16 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	PC Pin	Standard Round	Unthreaded	SPDT	Through Hole	0.4 VA	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	20 V	20 V

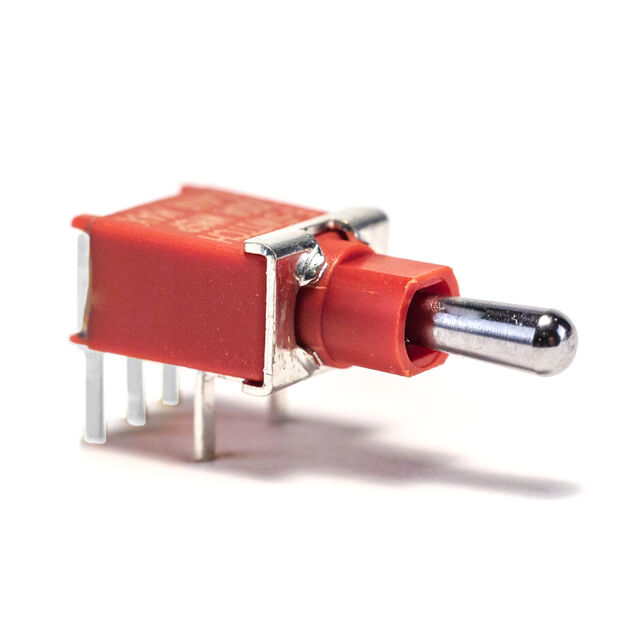

E-Switch 200AWMSP1T2A1M6QE	50000 Cycles	Brass Chrome Plated	6.1 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	PC Pin	Standard Round	Unthreaded	SPDT	Right Angle Through Hole	3 A	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	120 V	28 V

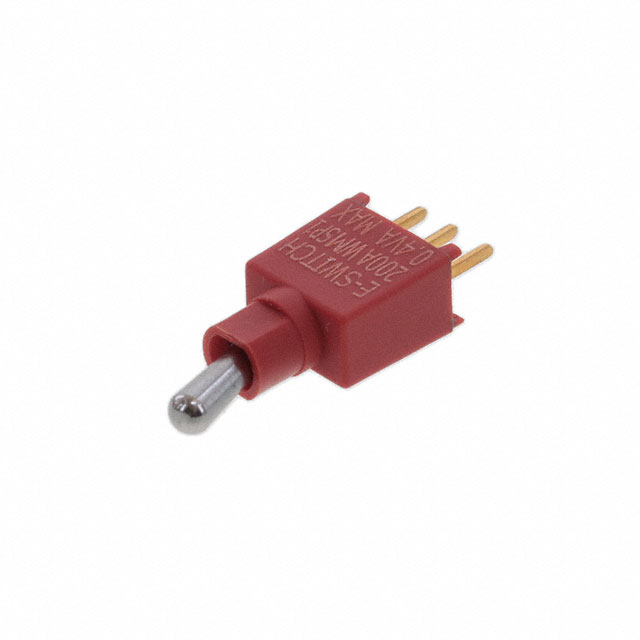

E-Switch 200AWMSP1T2A1M2RE	50000 Cycles	Brass Chrome Plated	6.1 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	PC Pin	Standard Round	Unthreaded	SPDT	Through Hole	0.4 VA	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	20 V	20 V

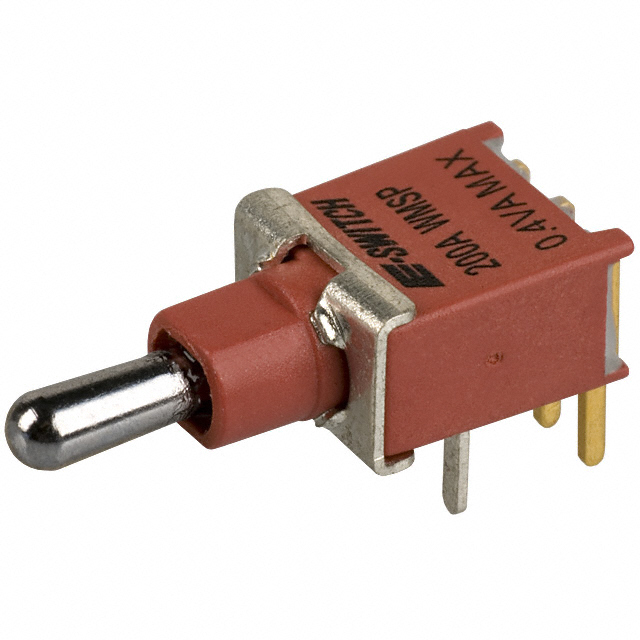

E-Switch 200AWMSP1T2A1M6RE	50000 Cycles	Brass Chrome Plated	6.1 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	PC Pin	Standard Round	Unthreaded	SPDT	Right Angle Through Hole	0.4 VA	85 °C	-30 ░C	Epoxy Sealed Terminals	On-Mom	20 V	20 V
E-Switch 200AWMSP1T1A1M7RE	50000 Cycles	Brass Chrome Plated	10.16 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	PC Pin	Standard Round	Unthreaded	SPDT	Right Angle Through Hole Vertical	0.4 VA	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	20 V	20 V

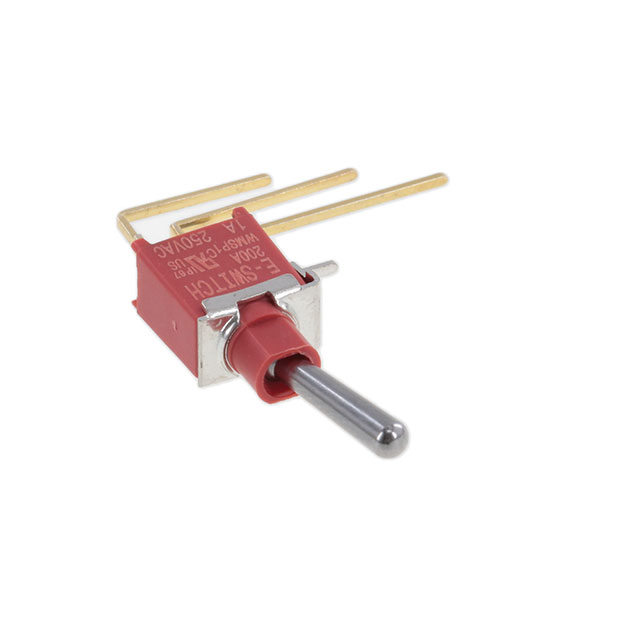

E-Switch 200AWMSP1T1A1M7QE	50000 Cycles	Brass Chrome Plated	10.16 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	PC Pin	Standard Round	Unthreaded	SPDT	Right Angle Through Hole Vertical	3 A	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	120 V	28 V
E-Switch 200AWMSP1T3A1M6QE	50000 Cycles	Brass Chrome Plated	5.08 mm	Non-Illuminated	IP67 - Dust Tight Waterproof	PC Pin	Standard Round	Unthreaded	SPDT	Right Angle Through Hole	3 A	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	120 V	28 V
