325220 Series

Catalog

CONN BARRIER STRP 16CIRC 0.325"

Part	Material Flammability Rating	Terminal Screw Material	Operating Temperature	Mounting Type	Material - Insulation	Number of Rows	Wire Gauge [Min]	Wire Gauge [Max]	Bottom Termination	Current Rating (Amps)	Voltage Rating	Features	Number of Wire Entries	Barrier Type	Pitch	Pitch	Top Termination	Number of Circuits	Terminal Block Type
Curtis Industries 325220-16-0	UL94 V-0	Steel	105 C	Chassis Panel Through Hole	Polypropylene (PP)	1	14 AWG	22 AWG	Wire Wrap	15 A	300 VDC	Flange	16	3 Wall (Tri)	0.325 in	8.26 mm	Screws	16	Barrier Block
Curtis Industries 325220-24-0	UL94 V-0	Steel	105 C	Chassis Panel Through Hole	Polypropylene (PP)	1	14 AWG	22 AWG	Wire Wrap	15 A	300 VDC	Flange		3 Wall (Tri)	0.325 in	8.26 mm	Screws	24	Barrier Block

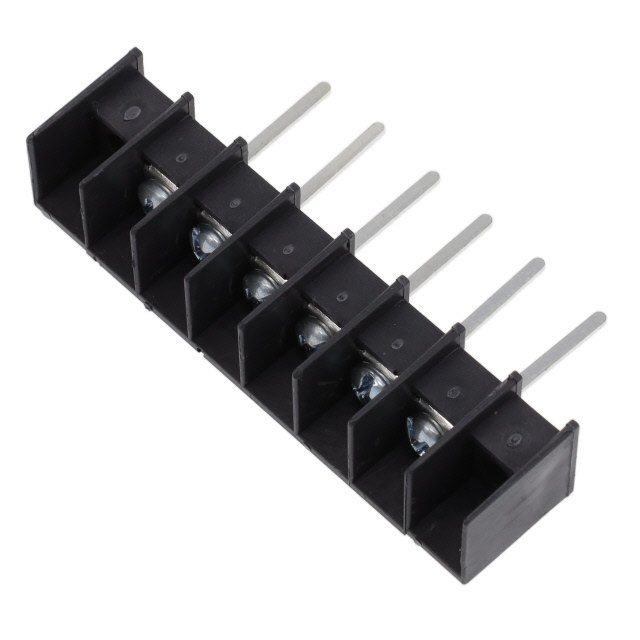

Curtis Industries 325220-06-0	UL94 V-0	Steel	105 C	Chassis Panel Through Hole	Polypropylene (PP)	1	14 AWG	22 AWG	Wire Wrap	15 A	300 VDC	Flange	6	3 Wall (Tri)	0.325 in	8.26 mm	Screws	6	Barrier Block
Curtis Industries 325220-25-0	UL94 V-0	Steel	105 C	Chassis Panel Through Hole	Polypropylene (PP)	1	14 AWG	22 AWG	Wire Wrap	15 A	300 VDC	Flange	25	3 Wall (Tri)	0.325 in	8.26 mm	Screws	25	Barrier Block

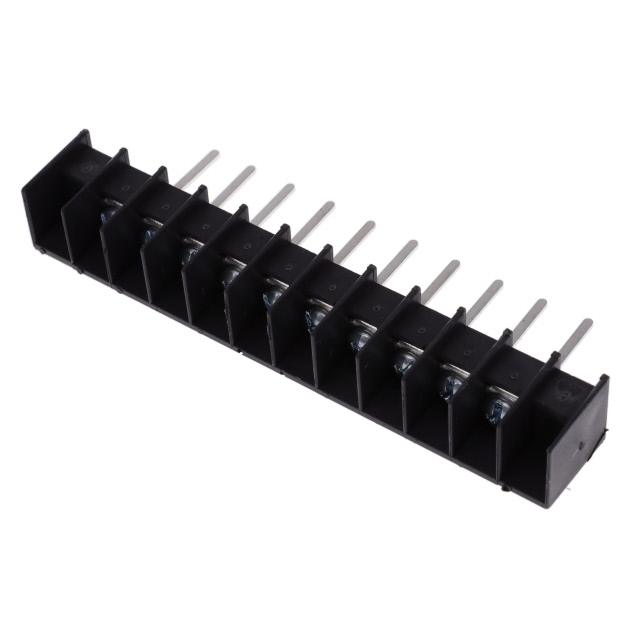

Curtis Industries 325220-10-0	UL94 V-0	Steel	105 C	Chassis Panel Through Hole	Polypropylene (PP)	1	14 AWG	22 AWG	Wire Wrap	15 A	300 VDC	Flange	10	3 Wall (Tri)	0.325 in	8.26 mm	Screws	10	Barrier Block
Curtis Industries 325220-18-0	UL94 V-0	Steel	105 C	Chassis Panel Through Hole	Polypropylene (PP)	1	14 AWG	22 AWG	Wire Wrap	15 A	300 VDC	Flange	18	3 Wall (Tri)	0.325 in	8.26 mm	Screws	18	Barrier Block
Curtis Industries 325220-15-0	UL94 V-0	Steel	105 C	Chassis Panel Through Hole	Polypropylene (PP)	1	14 AWG	22 AWG	Wire Wrap	15 A	300 VDC	Flange	15	3 Wall (Tri)	0.325 in	8.26 mm	Screws	15	Barrier Block
Curtis Industries 325220-01-0	UL94 V-0	Steel	105 C	Chassis Panel Through Hole	Polypropylene (PP)	1	14 AWG	22 AWG	Wire Wrap	15 A	300 VDC	Flange	1	3 Wall (Tri)			Screws	1	Barrier Block
Curtis Industries 325220-20-0	UL94 V-0	Steel	105 C	Chassis Panel Through Hole	Polypropylene (PP)	1	14 AWG	22 AWG	Wire Wrap	15 A	300 VDC	Flange	20	3 Wall (Tri)	0.325 in	8.26 mm	Screws	20	Barrier Block
Curtis Industries 325220-26-0	UL94 V-0	Steel	105 C	Chassis Panel Through Hole	Polypropylene (PP)	1	14 AWG	22 AWG	Wire Wrap	15 A	300 VDC	Flange	26	3 Wall (Tri)	0.325 in	8.26 mm	Screws	26	Barrier Block
