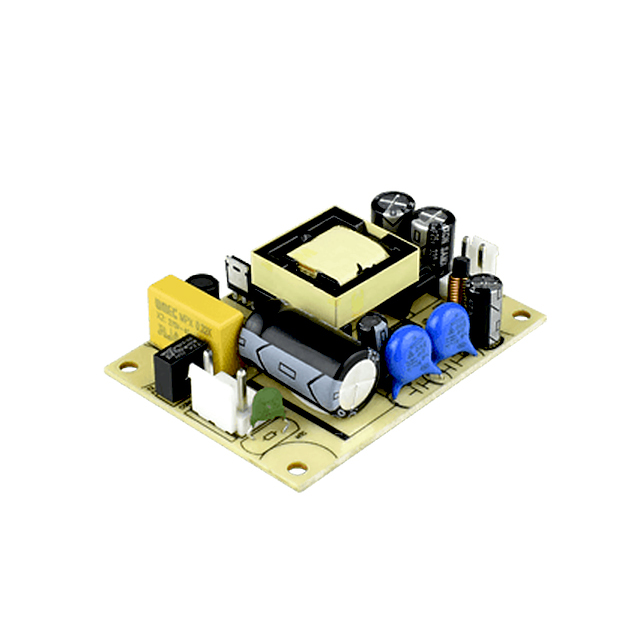

VOF-15C Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 9V 14W

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Applications	Type	Features	Voltage - Output 1	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Standard Number	Approval Agency	Voltage - Isolation	Power (Watts)
CUI Inc. VOF-15C-S9	0.75 "	2.5 "	45.7 mm	63.5 mm	1.8 in	19 mm	1.6 A	Household Appliances ITE (Commercial)	Open Frame	Universal Input	9 V	Chassis Mount	85 VAC 100 V	264 VAC 370 VDC	78 %	70 °C	-25 °C	1	55024 55032 Class A 62368-1	CB Scheme EN IEC UL	3000 V
CUI Inc. VOF-15C-S24	0.75 "	2.5 "	45.7 mm	63.5 mm	1.8 in	19 mm	625 mA	Household Appliances ITE (Commercial)	Open Frame	Universal Input	24 V	Chassis Mount	85 VAC 100 V	264 VAC 370 VDC		70 °C	-25 °C	1	55024 55032 Class A 62368-1	CB Scheme EN IEC UL	3000 V	15 W
CUI Inc. VOF-15C-S15	0.75 "	2.5 "	45.7 mm	63.5 mm	1.8 in	19 mm	1 A	Household Appliances ITE (Commercial)	Open Frame	Universal Input	15 V	Chassis Mount	85 VAC 100 V	264 VAC 370 VDC	81 %	70 °C	-25 °C	1	55024 55032 Class A 62368-1	CB Scheme EN IEC UL	3000 V	15 W
CUI Inc. VOF-15C-S3	0.75 "	2.5 "	45.7 mm	63.5 mm	1.8 in	19 mm	3 A	Household Appliances ITE (Commercial)	Open Frame	Universal Input	3.3 V	Chassis Mount	85 VAC 100 V	264 VAC 370 VDC	72 %	70 °C	-25 °C	1	55024 55032 Class A 62368-1	CB Scheme EN IEC UL	3000 V	10 W
