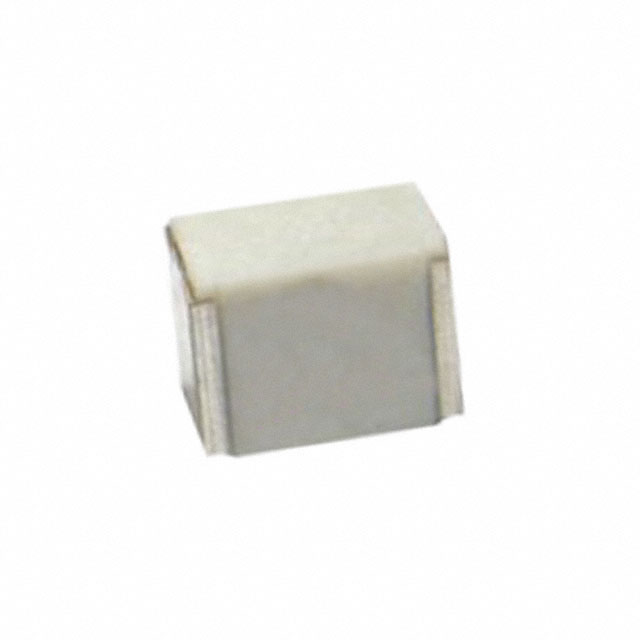

F161 Series

Manufacturer: KEMET

Catalog

FILM CAPACITORS 50VOLTS 0.33UF 5% LS 10.2MM

Part	Capacitance	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Dielectric Material	Tolerance	Voltage Rating - AC	Mounting Type	Applications	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET F161WP334J050V	0.33 µF	50 VDC	0.402 in	9.1 mm	10.2 mm	0.358 in	AEC-Q200	Solder Pads	-55 C	125 °C	5.7 mm	0.224 in	Nonstandard SMD	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	30 V	Surface Mount	Automotive
KEMET F161WP564K050V	560 nF	50 VDC	0.402 in	9.1 mm	10.2 mm	0.358 in	AEC-Q200	Solder Pads	-55 C	125 °C	5.7 mm	0.224 in	Nonstandard SMD	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	30 V	Surface Mount	Automotive
KEMET F161ZS224K400V	0.22 µF	400 V	0.65 in	15 mm	16.5 mm	0.591 in	AEC-Q200	Solder Pads	-55 C	125 °C	7.2 mm	0.283 in	Nonstandard	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	200 V	Surface Mount	Automotive
KEMET F161SL104K100V	100000 pF	100 V	0.287 "	6 mm	7.3 mm	0.236 "	AEC-Q200	Solder Pads	-55 C	125 °C	3.2 mm	0.126 in	2924	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	63 V	Surface Mount	Automotive	7360 Metric
KEMET F161ZS106K050V	10 µF	50 VDC	0.65 in	15 mm	16.5 mm	0.591 in	AEC-Q200	Solder Pads	-55 C	125 °C	7.2 mm	0.283 in	Nonstandard SMD	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	30 V	Surface Mount	Automotive
KEMET F161YR154J400V	0.15 ÁF	400 V	0.5 "	11.5 mm	12.7 mm	0.453 in	AEC-Q200	Solder Pads	-55 C	125 °C			Nonstandard SMD	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	200 V	Surface Mount	Automotive		0.264 in	6.7 mm
KEMET F161WP125J050V	1.2 µF	50 VDC	0.402 in	9.1 mm	10.2 mm	0.358 in	AEC-Q200	Solder Pads	-55 C	125 °C	5.7 mm	0.224 in	Nonstandard SMD	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	30 V	Surface Mount	Automotive
KEMET F161SL224J063V	0.22 µF	63 VDC	0.287 "	6 mm	7.3 mm	0.236 "	AEC-Q200	Solder Pads	-55 C	125 °C	3.2 mm	0.126 in	2924	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	40 V	Surface Mount	Automotive	7360 Metric
KEMET F161WP154J100V	0.15 ÁF	100 V	0.402 in	9.1 mm	10.2 mm	0.358 in	AEC-Q200	Solder Pads	-55 C	125 °C	5.7 mm	0.224 in	Nonstandard SMD	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	63 V	Surface Mount	Automotive
KEMET F161WP274K063V	0.27 µF	63 VDC	0.402 in	9.1 mm	10.2 mm	0.358 in	AEC-Q200	Solder Pads	-55 C	125 °C	5.7 mm	0.224 in	Nonstandard SMD	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	40 V	Surface Mount	Automotive
