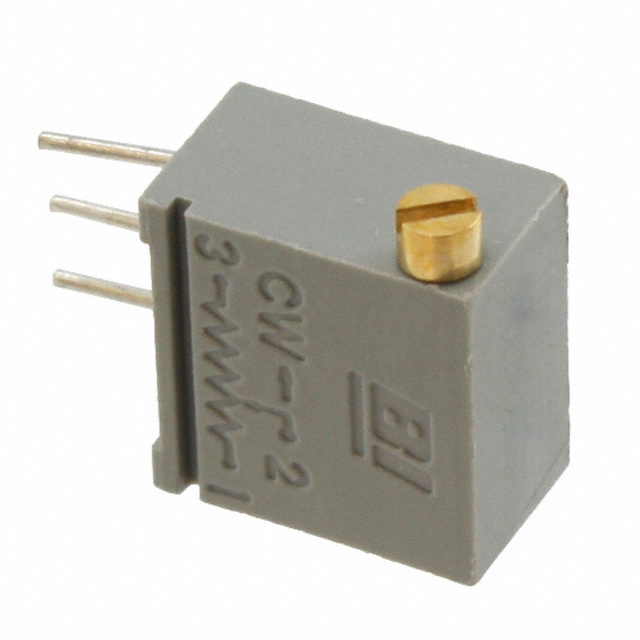

68XR Series

Catalog

TRIMMER 100KOHM 0.5W PC PIN SIDE

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Power (Watts)	Tolerance	Adjustment Type	Temperature Coefficient	Termination Style	Resistance	Resistive Material	Number of Turns	Mounting Type
TT Electronics/BI 68XR100KLFTB	0.375 in	0.245 in	6.22 mm	9.53 mm	0.5 W	0.5 W	10 %	Side Adjustment	100 ppm/°C	PC Pins	100 kOhms	Cermet	20	Through Hole
TT Electronics/BI 68XR2KLF	0.375 in	0.245 in	6.22 mm	9.53 mm	0.5 W	0.5 W	10 %	Side Adjustment	100 ppm/°C	PC Pins	2 kOhms	Cermet	20	Through Hole

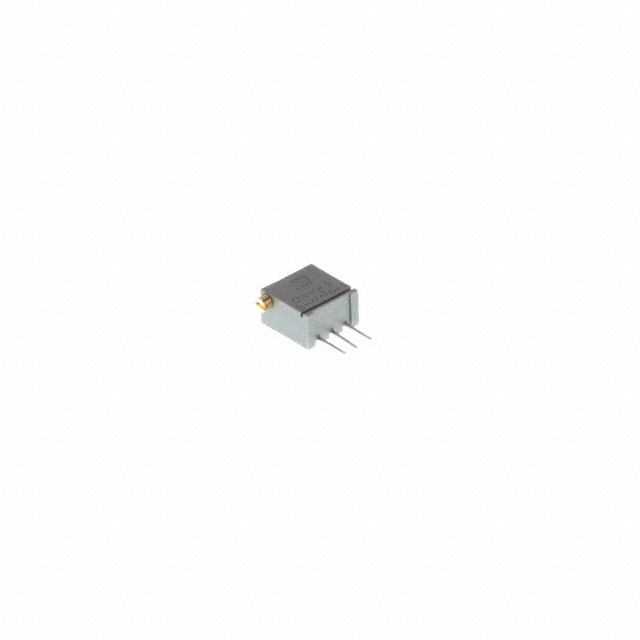

TT Electronics/BI 68XR200LF	0.375 in	0.245 in	6.22 mm	9.53 mm	0.5 W	0.5 W	10 %	Side Adjustment	100 ppm/°C	PC Pins	200 Ohms	Cermet	20	Through Hole
TT Electronics/BI 68XR50LF	0.375 in	0.245 in	6.22 mm	9.53 mm	0.5 W	0.5 W	20 %	Side Adjustment	250 ppm/°C	PC Pins	50 Ohms	Cermet	20	Through Hole
TT Electronics/BI 68XR20KLFTB	0.375 in	0.245 in	6.22 mm	9.53 mm	0.5 W	0.5 W	10 %	Side Adjustment	100 ppm/°C	PC Pins	20 kOhms	Cermet	20	Through Hole

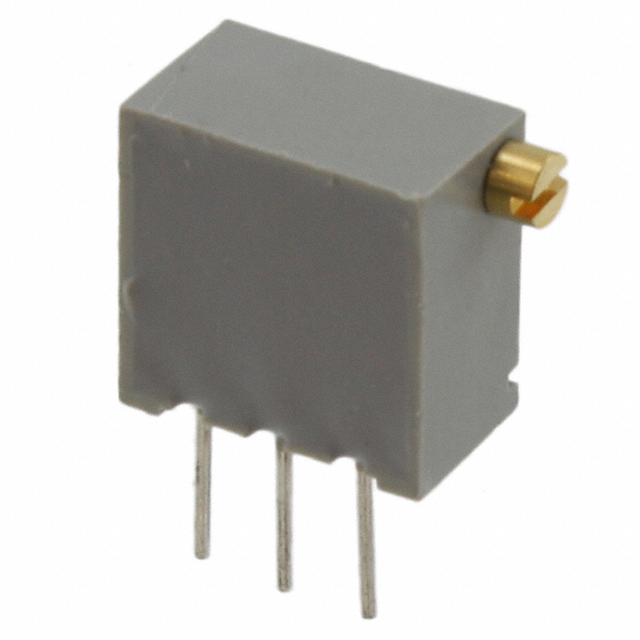

TT Electronics/BI 68XR100LF	0.375 in	0.245 in	6.22 mm	9.53 mm	0.5 W	0.5 W	10 %	Side Adjustment	100 ppm/°C	PC Pins	100 Ohms	Cermet	20	Through Hole
TT Electronics/BI 68XR200KLF	0.375 in	0.245 in	6.22 mm	9.53 mm	0.5 W	0.5 W	10 %	Side Adjustment	100 ppm/°C	PC Pins	200000 Ohms	Cermet	20	Through Hole
TT Electronics/BI 68XR250KLF	0.375 in	0.245 in	6.22 mm	9.53 mm	0.5 W	0.5 W	10 %	Side Adjustment	100 ppm/°C	PC Pins	250000 Ohms	Cermet	20	Through Hole
TT Electronics/BI 68XR20LF	0.375 in	0.245 in	6.22 mm	9.53 mm	0.5 W	0.5 W	20 %	Side Adjustment	250 ppm/°C	PC Pins	20 Ohms	Cermet	20	Through Hole
TT Electronics/BI 68XR50KLF	0.375 in	0.245 in	6.22 mm	9.53 mm	0.5 W	0.5 W	10 %	Side Adjustment	100 ppm/°C	PC Pins	50000 Ohms	Cermet	20	Through Hole
