BAV102 Series

General Purpose High Voltage Diode

Catalog

General Purpose High Voltage Diode

Part	Mounting Type	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Speed	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Capacitance @ Vr, F	Technology
ON Semiconductor BAV102	Surface Mount	100 nA	SOD-80	1.25 V	200 mA	50 ns	Any Speed	200 mA	200 C	-65 C	DO-213AC MINI-MELF SOD-80	5 pF	Standard

Catalog

General Purpose High Voltage Diode

Description

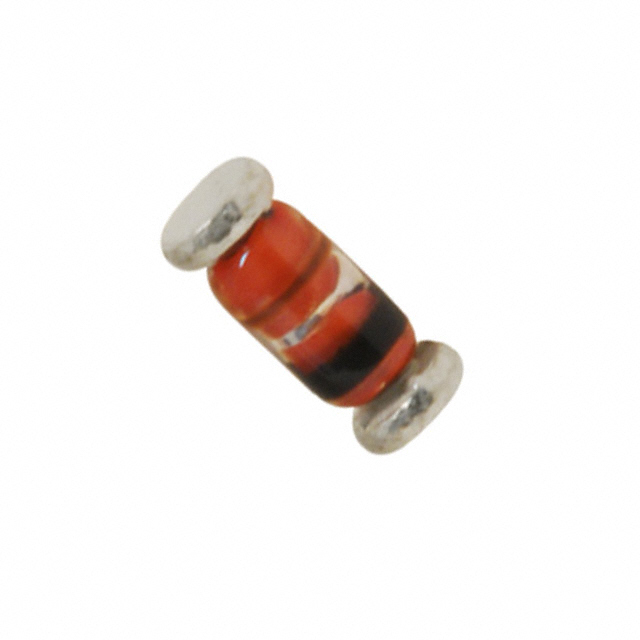

A General Purpose diode that couples high forward conductance fast switching speed and high blocking voltages in a glass leadless LL-34 Surface Mount package. Placement of the Expansion Gap has no relationship to the location of the Cathode Terminal which is indicated by the first color band.
