2314936 Series

Catalog

3P,2MM,B-B,REC,SRHZ,2.8,0.1AU

Part	Connector Type	Voltage Rating	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Insulation Material	Fastening Type	Contact Type	Current Rating (Amps)	Contact Shape	Contact Finish - Mating	Mounting Type	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color

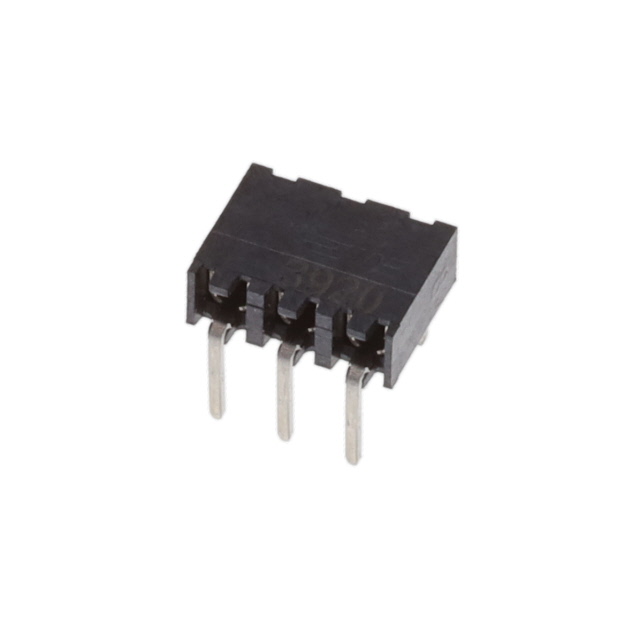

TE Connectivity Raychem Cable Protection 2314936-3	Receptacle	125 VDC	Tin	0.08 in	2.03 mm	Solder	3.94 µin	0.1 µm	0.11 in	2.79 mm	UL94 V-0	3 µm	118.1 µin	Phosphor Bronze	125 °C	-40 °C	All	Liquid Crystal Polymer (LCP)	Push-Pull	Female Socket	2 A	Square	Gold	Through Hole Right Angle	1	0.079 in	2 mm	Black
TE Connectivity Raychem Cable Protection 2314936-5	Receptacle	125 VDC	Tin	0.08 in	2.03 mm	Solder	3.94 µin	0.1 µm	0.11 in	2.79 mm	UL94 V-0	3 µm	118.1 µin	Phosphor Bronze	125 °C	-40 °C	All	Liquid Crystal Polymer (LCP)	Push-Pull	Female Socket	2 A	Square	Gold	Through Hole Right Angle	1	0.079 in	2 mm	Black
