G12JV Series
Manufacturer: NKK Switches
Beta
⌘K

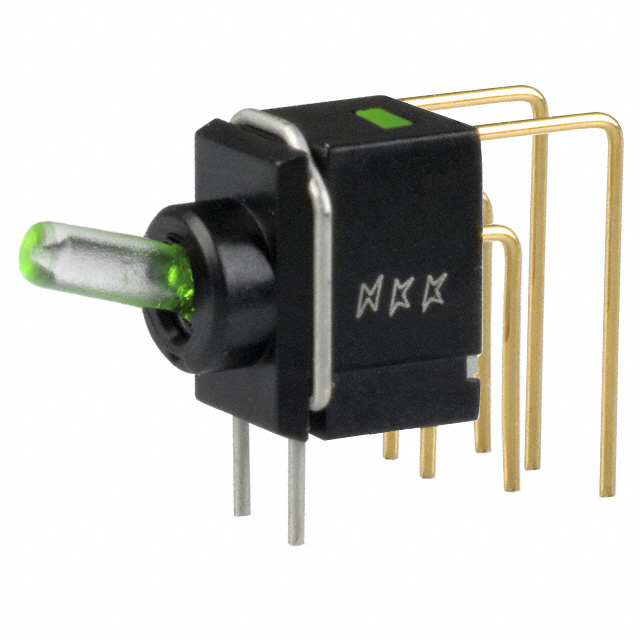

ULTRA-MINIATURE FULLY ILLUMINATED TOGGLE
| Part | Electrical Life | Actuator Material | Voltage Rating - AC | Termination Style | Current Rating (Amps) | Switch Function | Illumination Voltage (Nominal) | Features | Illumination Type, Color | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Actuator Type | Mounting Type | Voltage Rating - DC | Circuit | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | Glass Filled Nylon Polyamide (PA) | 28 V | PC Pin | 0.4 VA | On-On | 2.1 VDC | Process Sealed | Green LED | 3.8 mm | 85 °C | -25 °C | Illuminated | Standard Round | Right Angle Through Hole Vertical | 28 V | SPDT | Unthreaded |
