HLMP-4700 Series

Catalog

LED CBI 5MM RED RA HOUSING

Part	Mounting Type	Voltage Rating	Configuration	Viewing Angle	Lens Type	Millicandela Rating	Current	Wavelength - Peak	Color	Lens Color	Current - Test	Lens Size	Lens Size	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Wavelength - Dominant	Height (Max) [Max]	Lens Style	Package / Case	Lens Transparency

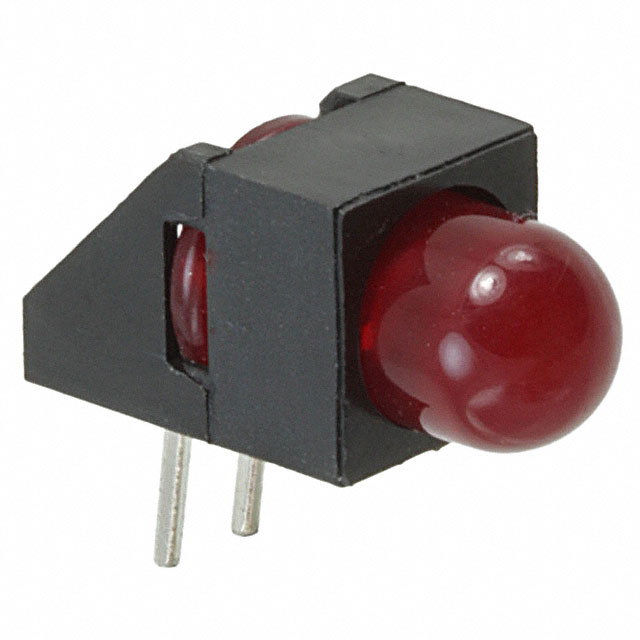

Broadcom Limited HLMP-4700-C00B2	Right Angle Through Hole	1.7 V	Single	50 °	Diffused Tinted	2.3 mcd	2 mA	635 nm	Red

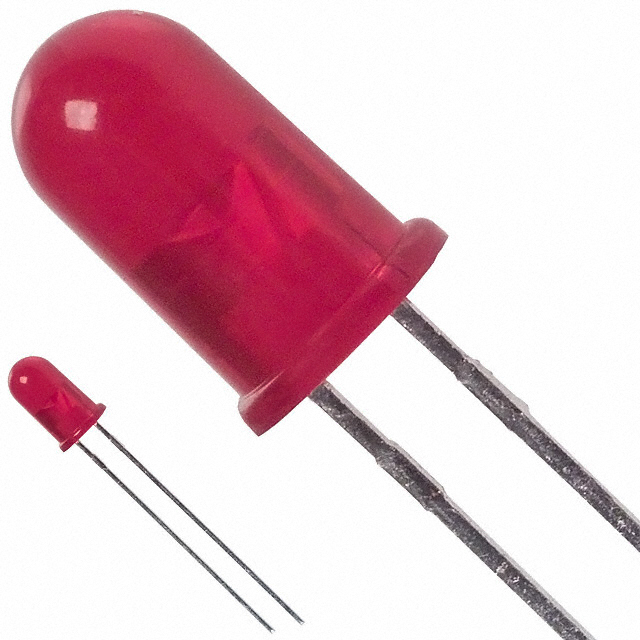

Broadcom Limited HLMP-4700	Through Hole		Standard	50 °		2.3 mcd		635 nm	Red	Red	2 mA	5 mm	T-1 3/4	1.7 V	T-1 3/4	626 nm	9.19 mm	Round with Domed Top	Radial	Diffused

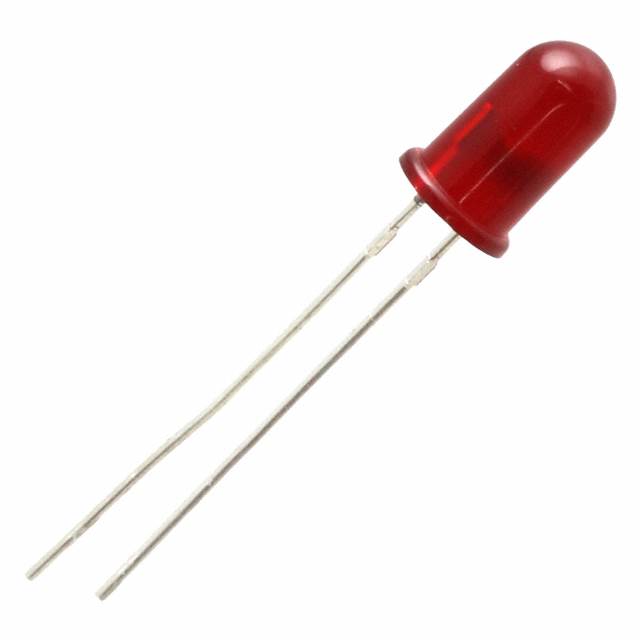

Broadcom Limited HLMP-4700-C0002	Through Hole		Standard	50 °		2.3 mcd		635 nm	Red	Red	2 mA	5 mm	T-1 3/4	1.7 V	T-1 3/4	626 nm	9.19 mm	Round with Domed Top	Radial	Diffused
