315-028 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 28POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Termination	Flange Feature	Color	Contact Type	Number of Positions	Contact Material	Read Out	Number of Positions/Bay/Row	Features	Contact Finish	Mounting Type	Gender	Flange Feature [diameter]	Flange Feature [diameter]

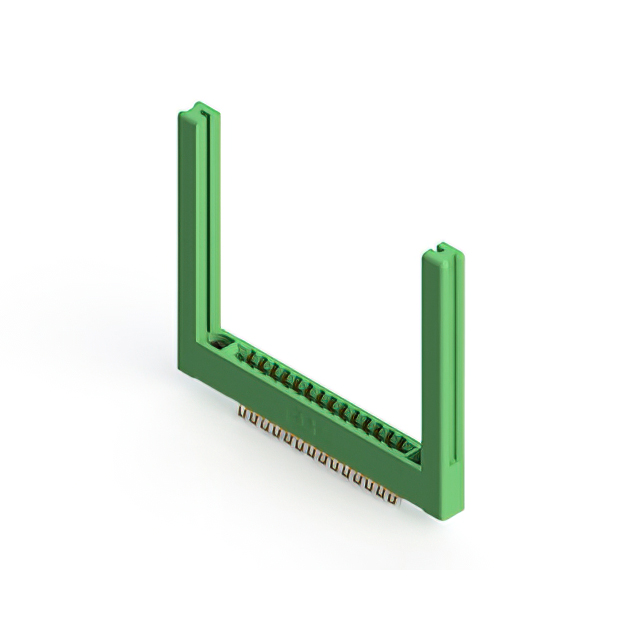

EDAC Inc. 315-028-555-258	2	Polyester Thermoplastic	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	2	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	4-40 Flush Mount Threaded Insert Top Opening	Green	Semi Bellows	28	Copper Alloy	Dual	14	Card Extender Card Guides	Gold	Board Edge Straddle Mount	Female
EDAC Inc. 315-028-520-208	2	Polyester Thermoplastic	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	2	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	4-40 Flush Mount Threaded Insert Top Opening	Green	Semi Bellows	28	Copper Alloy	Dual	14		Gold	Panel Mount Through Hole	Female

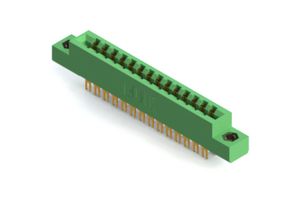

EDAC Inc. 315-028-500-207	2	Polyester Thermoplastic	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	2	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder Eyelet(s)	Flush Mount M3 Threaded Insert Top Opening	Green	Semi Bellows	28	Copper Alloy	Dual	14		Gold	Panel Mount	Female

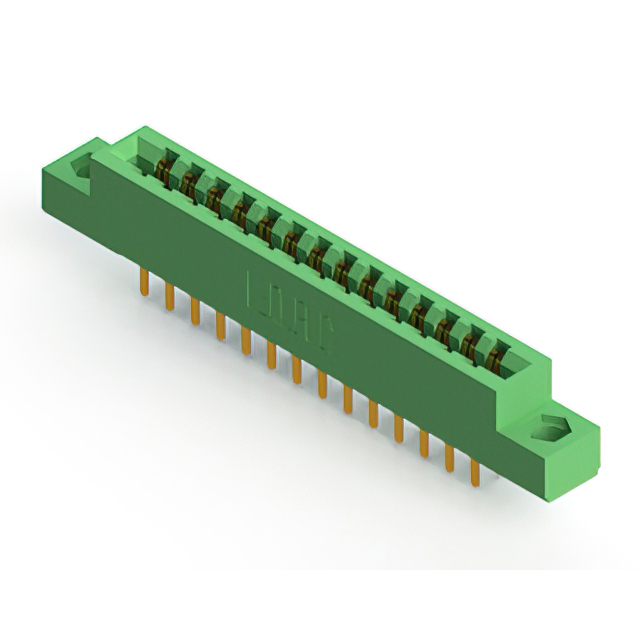

EDAC Inc. 315-028-520-204	2	Polyester Thermoplastic	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	2	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	Flush Mount Top Opening Unthreaded	Green	Semi Bellows	28	Copper Alloy	Dual	14		Gold	Panel Mount Through Hole	Female	0.156 "	3.96 mm
EDAC Inc. 315-028-521-258	2	Polyester Thermoplastic	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	2	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	4-40 Flush Mount Threaded Insert Top Opening	Green	Semi Bellows	28	Copper Alloy	Dual	14		Gold	Panel Mount Through Hole	Female

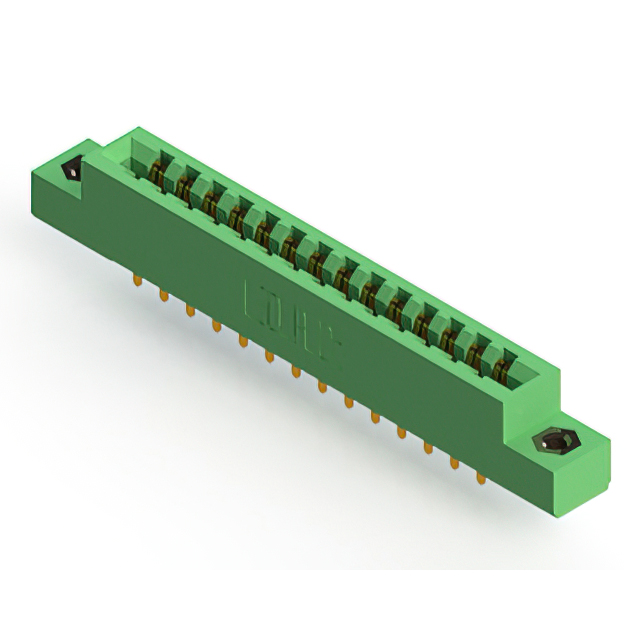

EDAC Inc. 315-028-521-208	2	Polyester Thermoplastic	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	2	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	4-40 Flush Mount Threaded Insert Top Opening	Green	Semi Bellows	28	Copper Alloy	Dual	14		Gold	Panel Mount Through Hole	Female

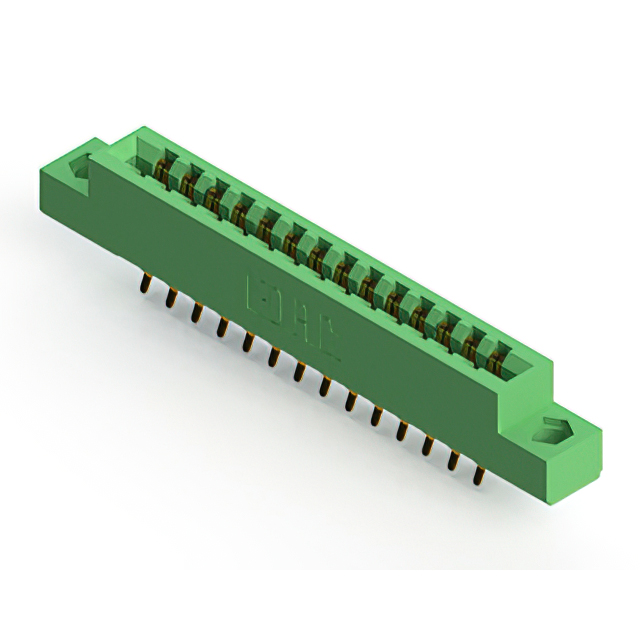

EDAC Inc. 315-028-556-204	2	Polyester Thermoplastic	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	2	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	Flush Mount Top Opening Unthreaded	Green	Semi Bellows	28	Copper Alloy	Dual	14	Card Extender	Gold	Board Edge Straddle Mount	Female	0.156 "	3.96 mm

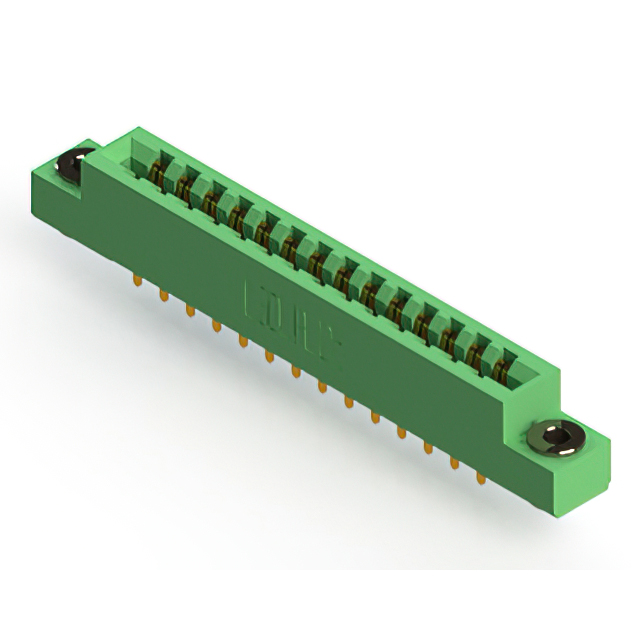

EDAC Inc. 315-028-521-203	2	Polyester Thermoplastic	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	2	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	Floating Bobbin Flush Mount	Green	Semi Bellows	28	Copper Alloy	Dual	14		Gold	Panel Mount Through Hole	Female	0.116 "	2.95 mm
EDAC Inc. 315-028-556-208	2	Polyester Thermoplastic	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	2	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	4-40 Flush Mount Threaded Insert Top Opening	Green	Semi Bellows	28	Copper Alloy	Dual	14	Card Extender	Gold	Board Edge Straddle Mount	Female

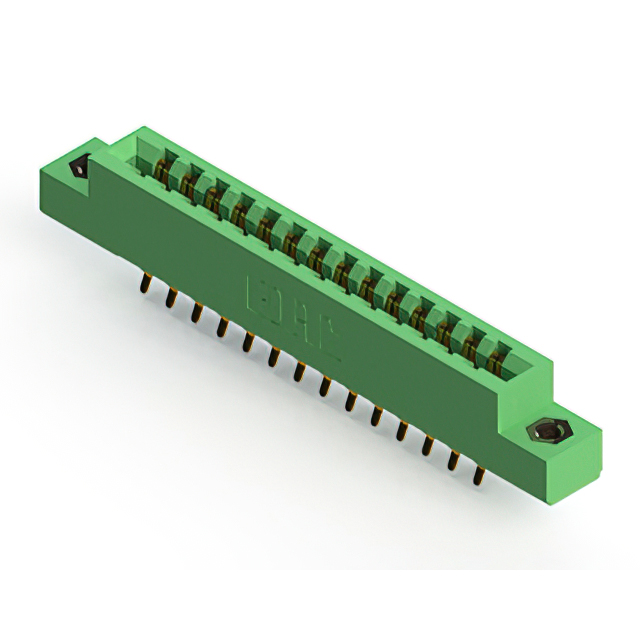

EDAC Inc. 315-028-556-207	2	Polyester Thermoplastic	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	2	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	Flush Mount M3 Threaded Insert Top Opening	Green	Semi Bellows	28	Copper Alloy	Dual	14	Card Extender	Gold	Board Edge Straddle Mount	Female
