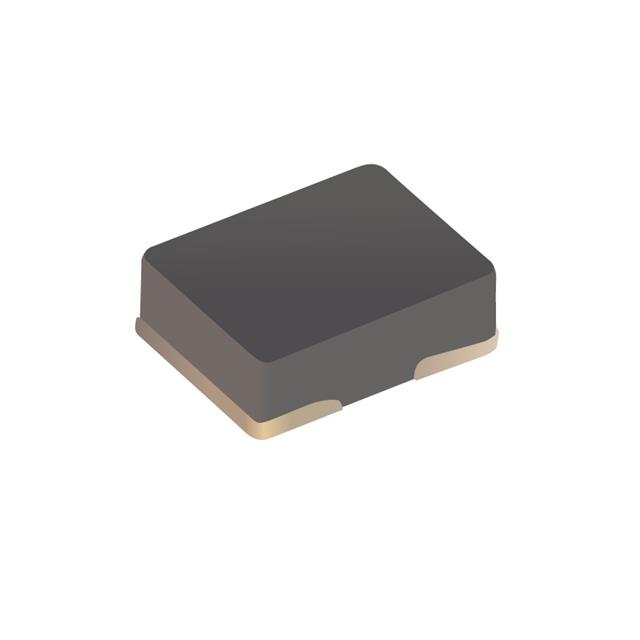

SRP3212A Series

Catalog

POWER INDUCTORS - SMD IND,3.2X2.5X1MM,1.5UH+/-20%,4.4A,SHD AEC-Q200

Part	Ratings	Tolerance	Current Rating (Amps)	Inductance Frequency - Test	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	Material - Core	Features	Operating Temperature [Min]	Operating Temperature [Max]	Q @ Freq	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Frequency - Self Resonant	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance	Package / Case	Package / Case	Mounting Type	DC Resistance (DCR)
Bourns Inc. SRP3212A-1R5M	AEC-Q200	20 %	4.4 A	100 kHz	5 A	53 mOhm	Metal	Flat Wire	-40 C	150 °C	5 100 kHz	1.2 mm	0.047 "	Shielded	43 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	1.5 µH	1210	3225 Metric	Surface Mount
Bourns Inc. SRP3212A-3R3M	AEC-Q200	20 %	3.1 A	100 kHz	3.4 A		Metal	Flat Wire	-40 C	150 °C	5 100 kHz	1.2 mm	0.047 "	Shielded	28 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	3.3 µH	1210	3225 Metric	Surface Mount
Bourns Inc. SRP3212A-4R7M	AEC-Q200	20 %	2.2 A	100 kHz	2.8 A		Metal	Flat Wire	-40 C	150 °C	5 100 kHz	1.2 mm	0.047 "	Shielded	25 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	4.7 ÁH	1210	3225 Metric	Surface Mount	146 mOhm
Bourns Inc. SRP3212A-1R0M	AEC-Q200	20 %	5.5 Amps	100 kHz	6.5 A		Metal	Flat Wire	-40 C	150 °C	5 100 kHz	1.2 mm	0.047 "	Shielded	63 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	1 µH	1210	3225 Metric	Surface Mount	32 mOhm
Bourns Inc. SRP3212A-R47M	AEC-Q200	20 %	7 A	100 kHz	8.2 A		Metal	Flat Wire	-40 C	150 °C	3	1.2 mm	0.047 "	Shielded	100 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	470 nH	1210	3225 Metric	Surface Mount	19 mOhm
Bourns Inc. SRP3212A-R68M	AEC-Q200	20 %	6.2 Amps	100 kHz			Metal	Flat Wire	-40 C	150 °C	5 100 kHz	1.2 mm	0.047 "	Shielded		2.5 mm	0.098 in	3.2 mm	0.126 "	0.68 µH	1210	3225 Metric	Surface Mount	24 mOhm
Bourns Inc. SRP3212A-2R2M	AEC-Q200	20 %	4 A	100 kHz	4.8 A	73 mOhm	Metal	Flat Wire	-40 C	150 °C	5 100 kHz	1.2 mm	0.047 "	Shielded	41 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	2.2 µH	1210	3225 Metric	Surface Mount
