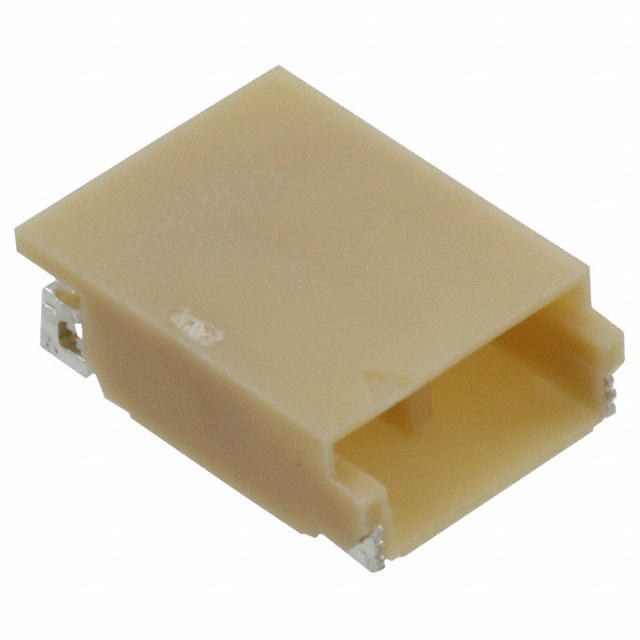

SM02B-BH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 2POS 3.5MM
| Part | Mounting Type | Number of Positions Loaded | Insulation Material | Number of Rows | Contact Type | Number of Positions | Features | Style | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Connector Type | Insulation Color | Shrouding | Voltage Rating | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Shape | Contact Finish - Post | Insulation Height [z] | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Right Angle Surface Mount | All | Polyphthalamide (PPA) | 1 | Male Pin | 2 | Solder Retention | Board to Cable/Wire | Brass | 85 °C | -25 °C | Solder | Header | Natural | Shrouded - 4 Wall | 1400 V | UL94 V-0 | 0.138 in | 3.5 mm | Detent Lock | Square | Tin | 0.126 " | 3.2 mm |
