VDMR10 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

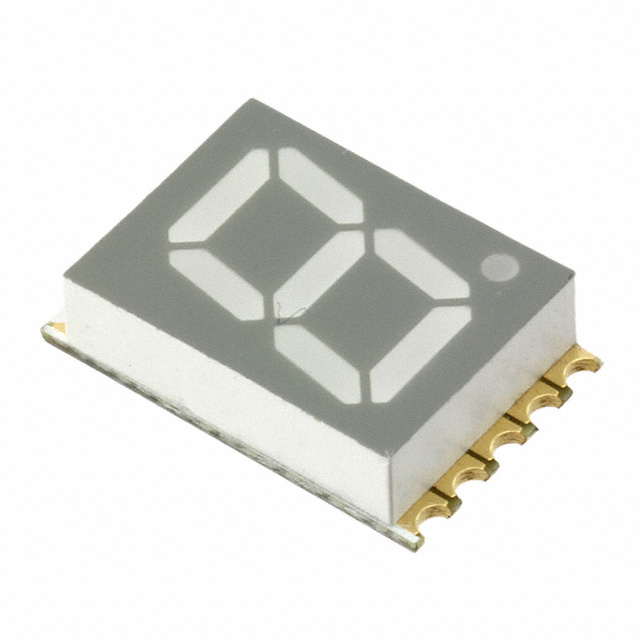

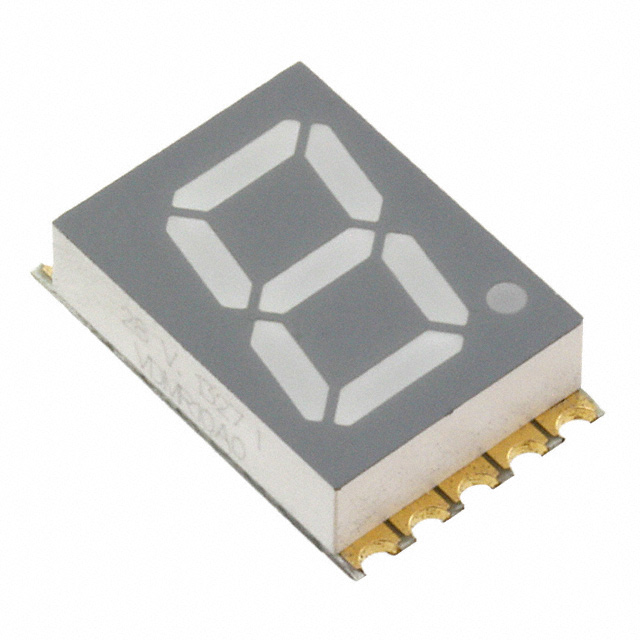

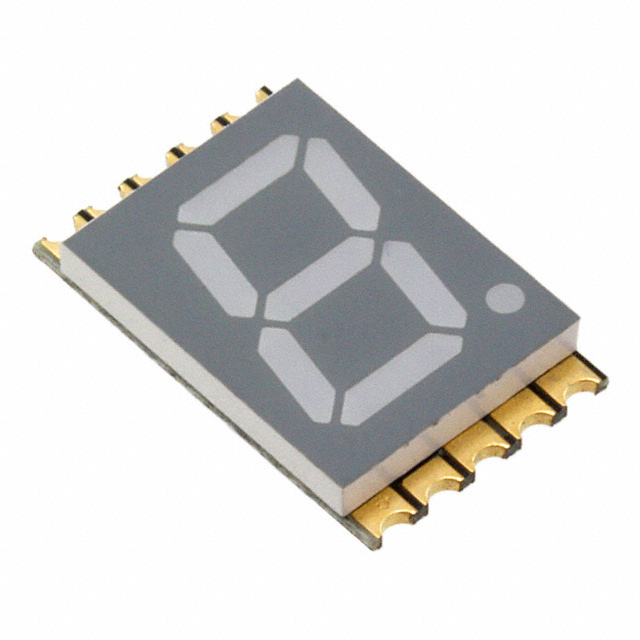

DISPLAY 7SEG 0.39" SGL RED 10SMD
| Part | Wavelength - Peak | Display Type | Current - Test | Common Pin | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Color | Voltage - Forward (Vf) (Typ) | Digit/Alpha Size | Digit/Alpha Size | Power Dissipation (Max) [Max] | Millicandela Rating | Number of Characters [custom] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 639 nm | 7-Segment | 20 mA | Common Cathode | 15 mm | 0.124 in | 3.15 mm | 0.591 in | 0.386 in | 9.8 mm | Red | 2 V | 0.39 in | 10 mm | 70 mW | 0.65 mcd | 1 | 10-SMD No Lead |
 Vishay General Semiconductor - Diodes Division | 631 nm | 7-Segment | 20 mA | Common Anode | 15 mm | 0.124 in | 3.15 mm | 0.591 in | 0.386 in | 9.8 mm | Red | 2 V | 0.39 in | 10 mm | 70 mW | 0.65 mcd | 1 | 10-SMD No Lead |
