SFH 203 Series

Catalog

SENSOR PHOTODIODE 850NM RADIAL

Part	Responsivity @ nm	Diode Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Dark (Typ)	Response Time	Viewing Angle	Active Area	Spectral Range [Max]	Spectral Range [Min]	Wavelength	Package / Case

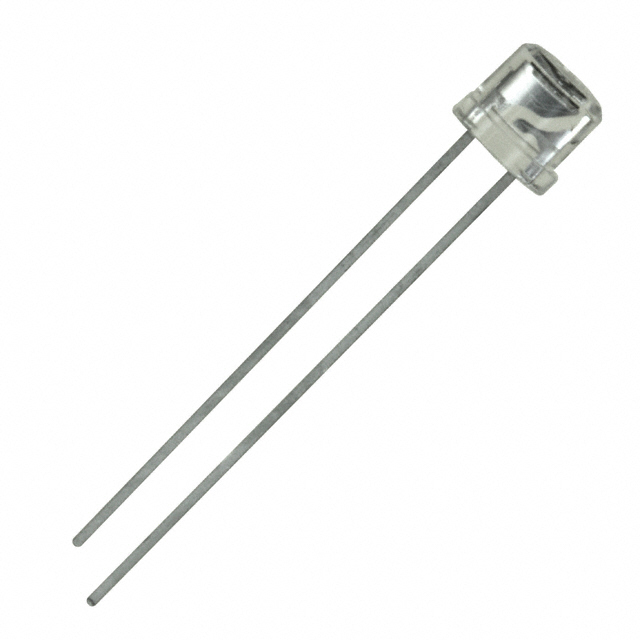

ams-OSRAM USA INC. SFH 203 P	0.62 A/W	PIN	Through Hole	-40 C	100 °C	50 V	1 nA	5 ns	150 °	1 mm˛	1100 nm	400 nm	850 nm	Radial

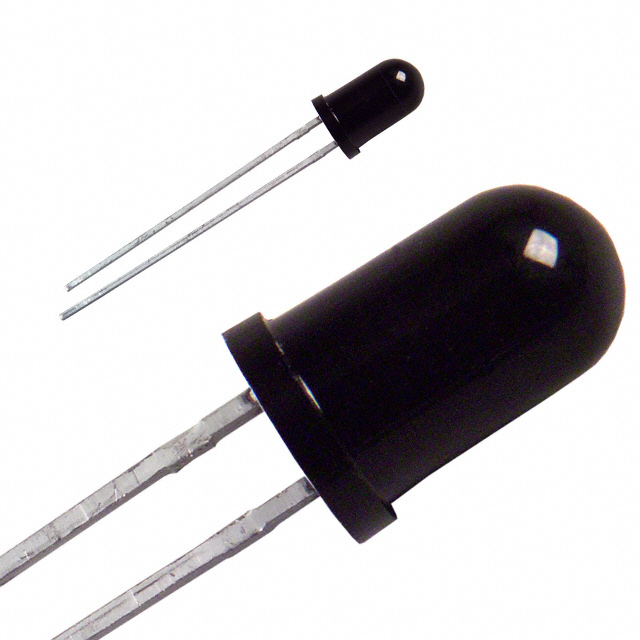

ams-OSRAM USA INC. SFH 203 FA	0.6 A/W	PIN	Through Hole	-40 C	100 °C	50 V	1 nA	5 ns	40 °	1 mm˛	1100 nm	800 nm	900 nm	Radial

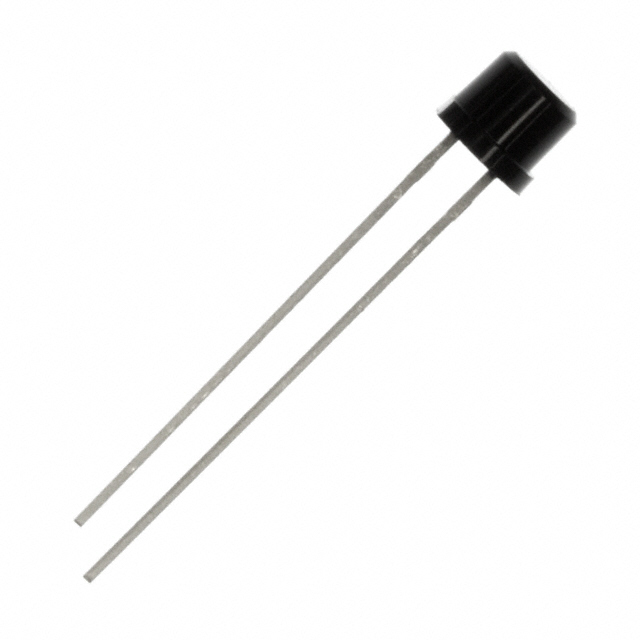

ams-OSRAM USA INC. SFH 203 PFA	0.62 A/W	PIN	Through Hole	-40 C	100 °C	50 V	1 nA	5 ns	150 °	1 mm˛	1100 nm	750 nm	850 nm	Radial
