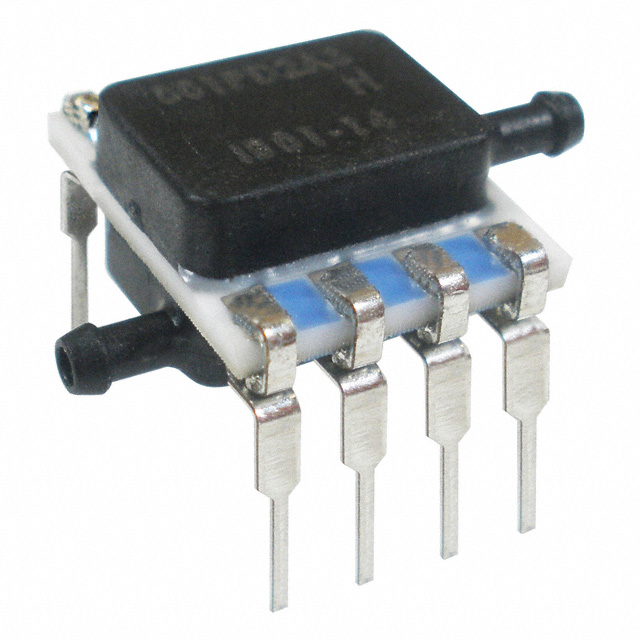

HSCDDRN Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SENSOR 3.63PSID 0.08" 12BIT 8DIP
| Part | Applications | Mounting Type | Port Size | Port Size | Port Size | Port Style | Operating Pressure | Operating Pressure | Output Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Package / Case | Supplier Device Package | Accuracy | Termination Style | Maximum Pressure | Maximum Pressure | Features | Operating Temperature [Max] | Operating Temperature [Min] | Pressure Type | Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Board Mount | Through Hole | 1.93 mm | Dual Male Tube | 0.08 " | Barbed | 25 kPa | 3.63 PSI | SPI | 4.75 V | 5.25 V | 0.524 " 13.3 mm | 8-DIP Dual Ports Opposite Sides | 8-DIP | 0.25 % | PC Pin | 20.31 PSI | 140 kPa | Amplified Output Temperature Compensated | 85 °C | -20 C | Differential | 12 b |
