D15P13 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

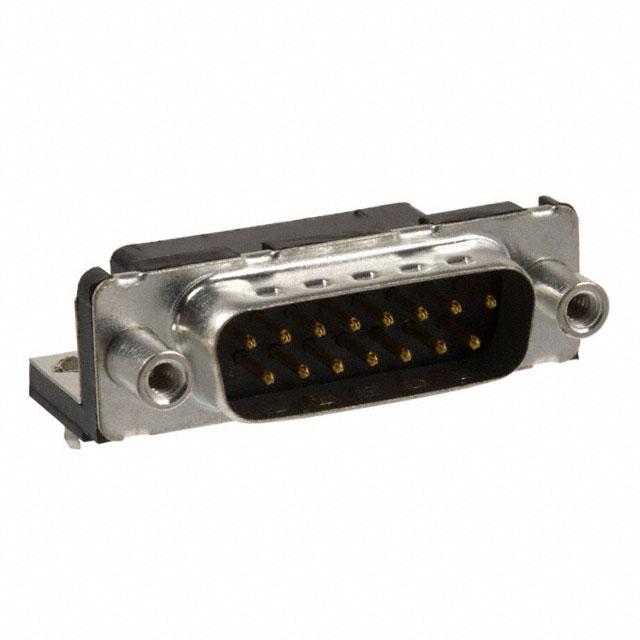

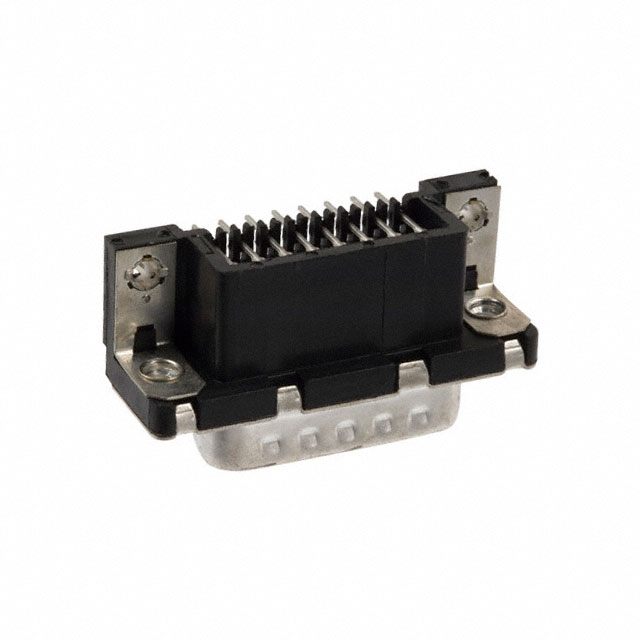

CONN D-SUB PLUG 15POS R/A SLDR
| Part | Connector Style | Contact Type | Number of Positions | Flange Feature | Voltage Rating | Mounting Type | Shell Size, Connector Layout | Current Rating (Amps) | Material Flammability Rating | Contact Finish Thickness | Backset Spacing | Backset Spacing | Connector Type | Number of Rows | Shell Material, Finish | Operating Temperature [Min] | Operating Temperature [Max] | Features | Termination | Contact Finish | Contact Material | Dielectric Material | Color | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | D-Sub | Signal | 15 | Housing/Shell (4-40) | 300 VDC | Through Hole Right Angle | 2 | 5 A | UL94 V-0 | Flash | 0.409 in | 10.4 mm | Male Pins Plug | 2 | Steel Tin-Nickel Plated | -55 °C | 125 °C | Board Lock Grounding Indents Mounting Brackets | Solder | Gold | Brass | Polybutylene Terephthalate (PBT) | Black | |||
Amphenol ICC (FCI) | D-Sub | Signal | 15 | Female Screwlock (4-40) Mating Side | 300 VDC | Through Hole Right Angle | 2 | 5 A | UL94 V-0 | Flash | 0.409 in | 10.4 mm | Male Pins Plug | 2 | -55 °C | 125 °C | Grounding Indents | Solder | Gold | Brass | Thermoplastic | Black | ||||
Amphenol ICC (FCI) | D-Sub | Signal | 15 | Housing/Shell (Unthreaded) | 300 VDC | Through Hole Right Angle | 2 | 5 A | UL94 V-0 | Flash | 0.409 in | 10.4 mm | Male Pins Plug | 2 | -55 °C | 125 °C | Grounding Indents | Solder | Gold | Brass | Polyester | Black | ||||
Amphenol ICC (FCI) | D-Sub | Signal | 15 | Housing/Shell (M3) | 300 VDC | Through Hole Right Angle | 2 | 5 A | UL94 V-0 | 0.409 in | 10.4 mm | Male Pins Plug | 2 | -55 °C | 125 °C | Board Lock Grounding Indents Mounting Brackets | Solder | Gold or Gold GXT™ | Brass | Polyester | Black | 0.76 Ám | 30 Áin | |||
 Amphenol ICC (FCI) | D-Sub | Signal | 15 | Female Screwlock (4-40) Mating Side | 300 VDC | Through Hole Right Angle | 2 | 5 A | UL94 V-0 | Flash | 0.409 in | 10.4 mm | Male Pins Plug | 2 | Steel Tin-Nickel Plated | -55 °C | 125 °C | Board Lock Grounding Indents Mounting Brackets | Solder | Gold | Brass | Polybutylene Terephthalate (PBT) | Black | |||
Amphenol ICC (FCI) | D-Sub | Signal | 15 | Housing/Shell (4-40) | 300 VDC | Through Hole Right Angle | 2 | 5 A | UL94 V-0 | 0.409 in | 10.4 mm | Male Pins Plug | 2 | -55 °C | 125 °C | Board Lock Grounding Indents Mounting Brackets | Solder | Gold | Brass | Polyester | Black | 0.76 Ám | 30 Áin | |||
Amphenol ICC (FCI) | D-Sub | Signal | 15 | Housing/Shell (M3) | 300 VDC | Through Hole Right Angle | 2 | 5 A | UL94 V-0 | 0.409 in | 10.4 mm | Male Pins Plug | 2 | -55 °C | 125 °C | Board Lock Grounding Indents Mounting Brackets | Solder | Gold or Gold GXT™ | Brass | Polybutylene Terephthalate (PBT) | Black | 0.76 Ám | 30 Áin | |||
Amphenol ICC (FCI) | D-Sub | Signal | 15 | Female Screwlock (4-40) Mating Side | 300 VDC | Through Hole Right Angle | 2 | 5 A | UL94 V-0 | 0.409 in | 10.4 mm | Male Pins Plug | 2 | Nickel Plated Steel | Board Guide Grounding Indents Mounting Brackets | Solder Paste | Gold | Brass | Thermoplastic Glass Filled | Black | 0.76 Ám | 30 Áin | -55 °C | |||
Amphenol ICC (FCI) | D-Sub | Signal | 15 | Housing/Shell (Unthreaded) | 300 VDC | Through Hole Right Angle | 2 | 5 A | UL94 V-0 | Flash | 0.409 in | 10.4 mm | Male Pins Plug | 2 | -55 °C | 125 °C | Grounding Indents | Solder | Gold | Brass | Polybutylene Terephthalate (PBT) | Black | ||||
Amphenol ICC (FCI) | D-Sub | Signal | 15 | Housing/Shell (4-40) | 300 VDC | Through Hole Right Angle | 2 | 5 A | UL94 V-0 | 0.409 in | 10.4 mm | Male Pins Plug | 2 | -55 °C | 125 °C | Board Lock Grounding Indents Mounting Brackets | Solder | Gold or Gold GXT™ | Brass | Polybutylene Terephthalate (PBT) | Black | 0.76 Ám | 30 Áin |
