R16454 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

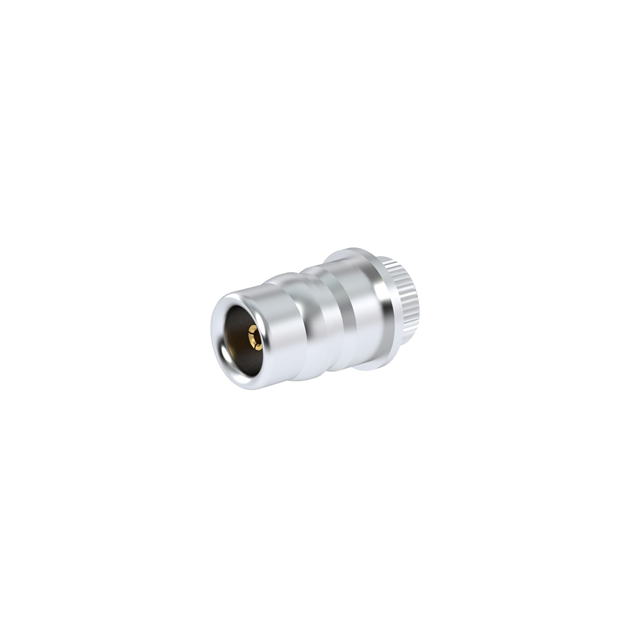

QN / PRESS-IN RECEPTACLE
| Part | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Voltage Rating | Body Finish | Contact Termination | Housing Color | Fastening Type | Frequency - Max [Max] | Ingress Protection | Center Contact Material | Impedance | Connector Type | Shield Termination | Mounting Type | Connector Style | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Gold | 1000 VDC | White Bronze | Solder | Silver | Snap-On | 6000 MHz | IP68 - Dust Tight Waterproof | Beryllium Copper | 50 Ohms | Receptacle Female Socket | Solder | Panel Mount | QN | 1 |
 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Gold | 1000 VDC | White Bronze | Solder | Silver | Snap-On | 6000 MHz | IP68 - Dust Tight Waterproof | Beryllium Copper | 50 Ohms | Receptacle Female Socket | Solder | Panel Mount | QN | 1 |
