TXC-V86 Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

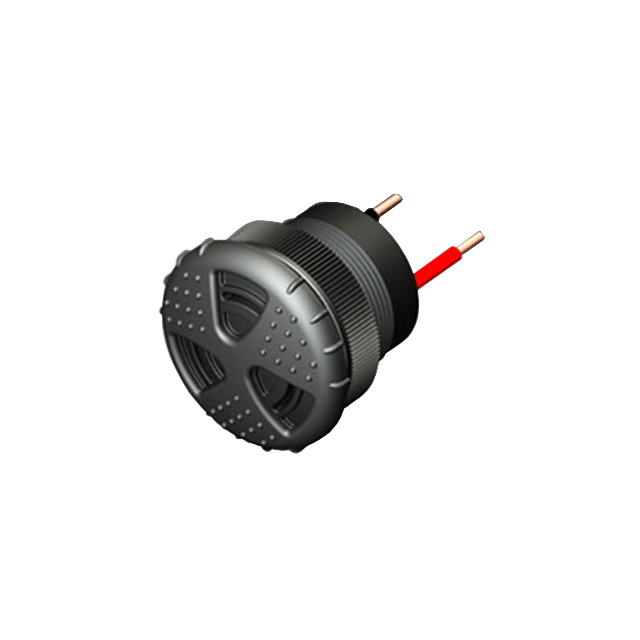

BUZZER PIEZO 35.81MM PNL MNT
| Part | Ingress Protection | Technology | Current - Supply [Max] | Current - Supply [Min] | Mounting Type | Input Type | Sound Pressure Level (SPL) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Port Location | Approval Agency | Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Mode | Voltage Range [Min] | Voltage Range [Max] | Termination | Driver Circuitry | Termination | Termination | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | IP68 - Dust Tight Waterproof | Piezo | 50 mA | 10 mA | Panel Mount | DC | 103 dB | 1.25 " | 31.75 mm | Top | UL UR | 2.9 kHz | 1.41 in | 35.81 mm | Single Tone | 5 VDC | 15 V | Wire Leads | Indicator Internally Driven | |||
 Floyd Bell Inc | IP68 - Dust Tight Waterproof | Piezo | 50 mA | 10 mA | Panel Mount | DC | 103 dB | 1.25 " | 31.75 mm | Top | UL UR | 2.9 kHz | 1.41 in | 35.81 mm | Single Tone | 5 VDC | 15 V | Screw Terminal Quick Connect Tab | Indicator Internally Driven | 0.25 " | 6.35 mm | |
 Floyd Bell Inc | IP68 - Dust Tight Waterproof | Piezo | 50 mA | 10 mA | Panel Mount | DC | 103 dB | 1.25 " | 31.75 mm | Top | UL UR | 2.9 kHz | 1.409 in | Single Tone | 5 VDC | 15 V | Quick Connect Tab | Indicator Internally Driven | 0.25 " | 6.35 mm | 35.8 mm |
