926790 Series

Catalog

CONN QC RCPT 13.5-17AWG 0.250

Part	Insulation Diameter [Max]	Insulation Diameter	Insulation Diameter [Min]	Tab Thickness	Tab Thickness	Gender	Insulation	Terminal Type	Tab Width [x]	Tab Width [x]	Contact Material	Termination	Mounting Type	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]

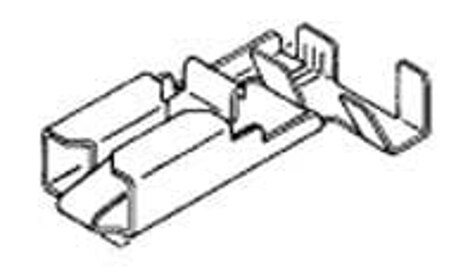

TE Connectivity AMP Connectors 926790-1	0.169 in	3 mm 4.29 mm	0.118 in	0.81 mm	0.032 in	Female	Non-Insulated	Angled - 90° Flag	6.35 mm	0.25 in	Phosphor Bronze	Crimp	Free Hanging (In-Line) Right Angle	Tin	17 AWG	14 AWG
TE Connectivity AMP Connectors 926790-3	0.169 in	3 mm 4.29 mm	0.118 in	0.81 mm	0.032 in	Female	Non-Insulated	Angled - 90° Flag	6.35 mm	0.25 in	Phosphor Bronze	Crimp	Free Hanging (In-Line) Right Angle	Tin	17 AWG	14 AWG
