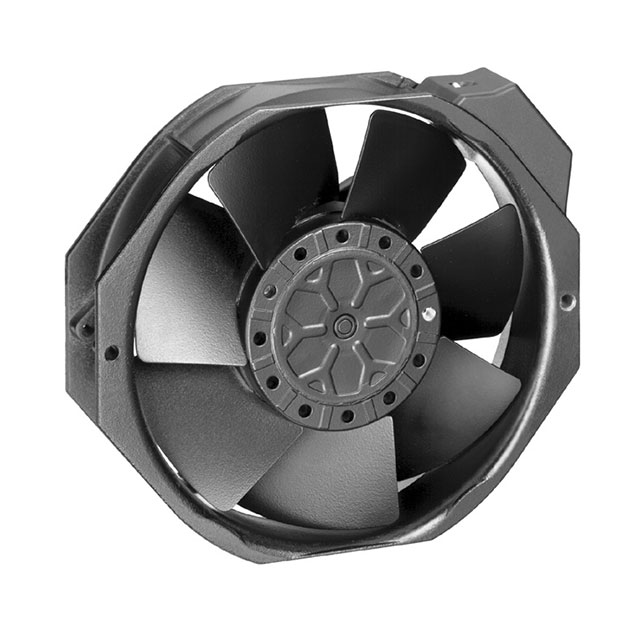

W2E142 Series

Catalog

AC AXIAL FAN, 230V, RECTANGULAR WITH ROUNDED ENDS, 172 MM, 38 MM, BALL BEARING, 175 CFM

Part	Material - Blade	Material - Frame	Air Flow	Air Flow	Noise	Approval Agency	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Termination	Voltage - Rated	Bearing Type	Fan Type	Width [y]	Weight	Weight	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	RPM	Features	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]
ebm-papst Inc. W2E142-CC15-16	Steel	Aluminum	175 CFM	4.9 mł/min	54 dB	CE CSA UL	Rectangular/Rounded	150 mm	172 mm	16 W	2	230 VAC	Ball	Tubeaxial	38 mm	907.2 g	2 lbs
ebm-papst Inc. W2E142-BB05-28	Steel	Aluminum				CSA UL	Rectangular/Rounded	150 mm	172 mm	28 W	2	115 VAC	Ball	Tubeaxial	38 mm	816.5 g	1.8 lbs	0.25 A	65 °C 150 °F	-25 °C	IP22	3350 RPM
ebm-papst Inc. W2E142-BB01-31	Steel	Aluminum				CCC CSA UL VDE	Rectangular/Rounded	150 mm	172 mm	28 W	2	230 VAC	Ball	Tubeaxial	38 mm	816.5 g	1.8 lbs				IP22	3350 RPM

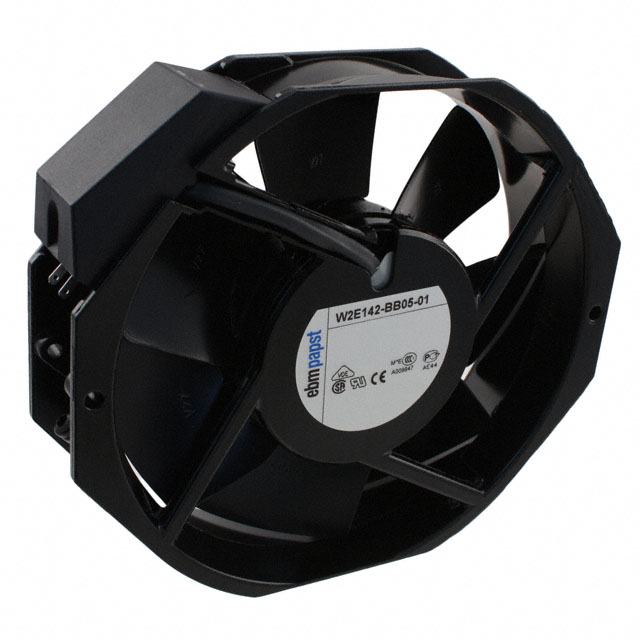

ebm-papst Inc. W2E142-BB05-01	Steel	Aluminum	230 CFM	6.44 m³/min	57 dB	CCC CE CSA GOST UL VDE	Rectangular/Rounded	150 mm	172 mm	28 W	2	115 VAC	Ball	Tubeaxial	38 mm	816.5 g	1.8 lbs	0.25 A	80 °C	-40 C		3350 RPM

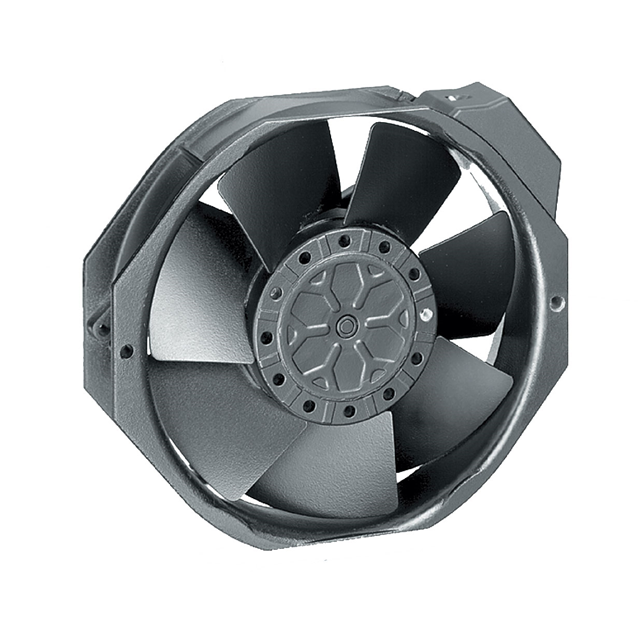

ebm-papst Inc. W2E142-BB01-11	Steel	Aluminum				CE EAC	Rectangular/Rounded	150 mm	172 mm	28 W	2	230 VAC	Ball	Tubeaxial	38 mm				85 °C	-25 °C	IP22	3350 RPM	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. W2E142-BB05-10	Steel	Aluminum					Rectangular/Rounded	150 mm	172 mm	28 W	2	115 VAC	Ball	Tubeaxial	38 mm	816.5 g	1.8 lbs	0.25 A	65 °C 150 °F	-25 °C	IP22	3350 RPM
ebm-papst Inc. W2E142-BB05-87	Steel	Aluminum	230 CFM	6.44 m³/min	57 dB	CE CSA UL	Rectangular/Rounded	150 mm	172 mm	28 W	2	115 VAC	Ball	Tubeaxial	38 mm	816.5 g	1.8 lbs	0.25 A	80 °C	-40 C		3350 RPM

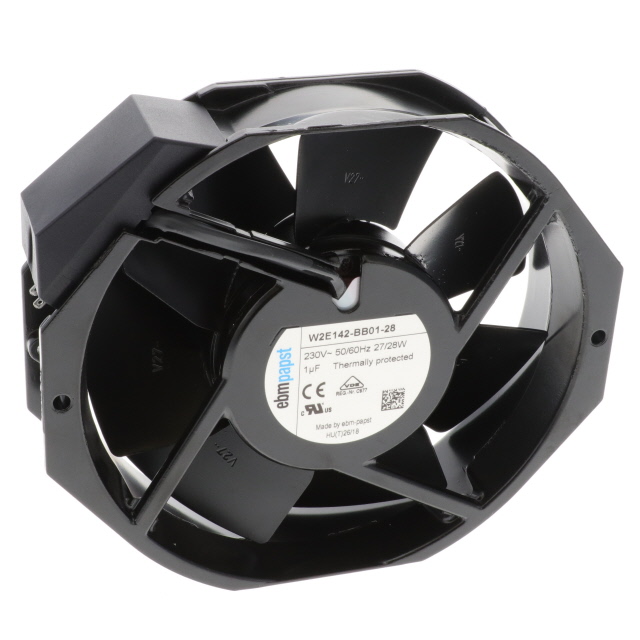

ebm-papst Inc. W2E142-BB01-28	Steel	Aluminum				CE CSA UL VDE	Rectangular		172 mm	28 W	2	230 VAC	Ball	Tubeaxial	38 mm				65 °C	-25 °C	IP22	3350 RPM	Capacitor Thermal Overload Protector (TOP)	150 mm	-25 °C	65 °C
ebm-papst Inc. W2E142-BB01-87	Steel	Aluminum	230 CFM	6.44 m³/min	57 dB		Rectangular/Rounded	150 mm	172 mm	28 W	2	230 VAC	Ball	Tubeaxial	38 mm	907.2 g	2 lbs		80 °C	-40 C
