78269 Series

Catalog

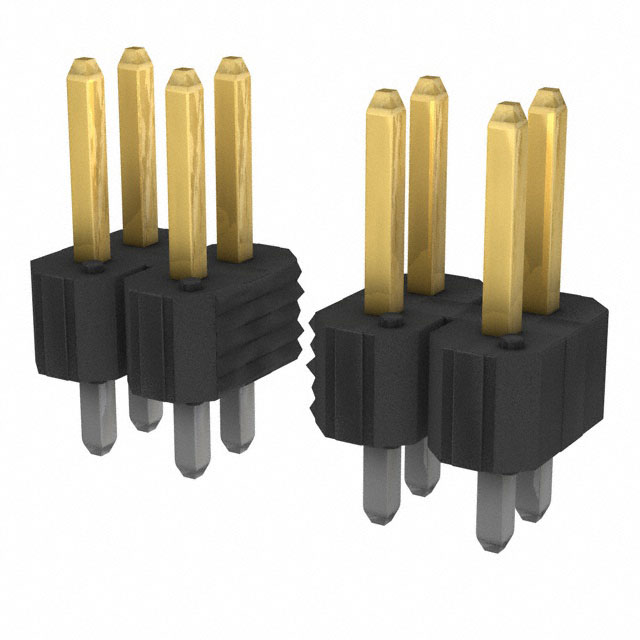

CONN HEADER VERT 72POS 2.54MM

Part	Number of Rows	Contact Material	Shrouding	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Positions	Insulation Height	Insulation Height	Connector Type	Mounting Type	Termination	Fastening Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post
Amphenol ICC (FCI) 78269-272H	2	Phosphor Bronze	Unshrouded	All	2.54 mm	0.1 in	Male Pin	Square	0.1 in	2.54 mm	2.41 mm	0.095 in	Black	0.19 "	4.83 mm	UL94 V-0	72	0.1 in	2.54 mm	Header	Through Hole	Solder	Push-Pull	Gold or Gold GXT™	15 µin	0.38 µm

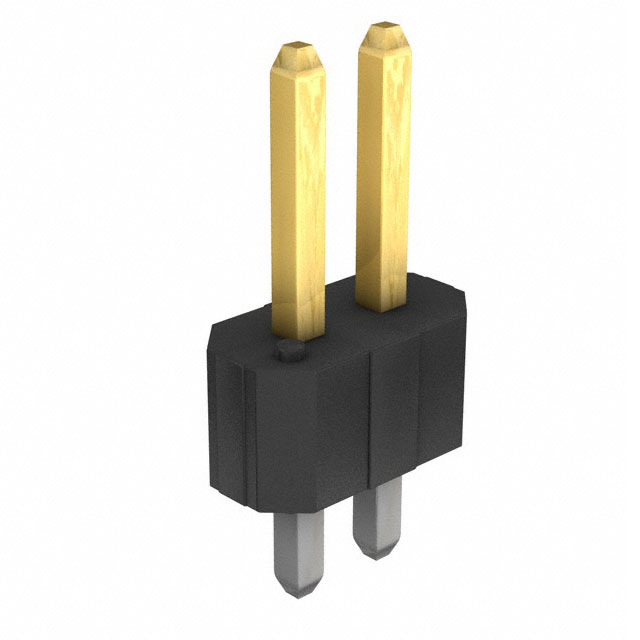

Amphenol ICC (FCI) 78269-202HLF	2	Phosphor Bronze	Unshrouded	All	2.54 mm	0.1 in	Male Pin	Square			2.41 mm	0.095 in	Black	0.19 "	4.83 mm	UL94 V-0	2	0.1 in	2.54 mm	Header	Through Hole	Solder	Push-Pull	Gold or Gold GXT™	15 µin	0.38 µm

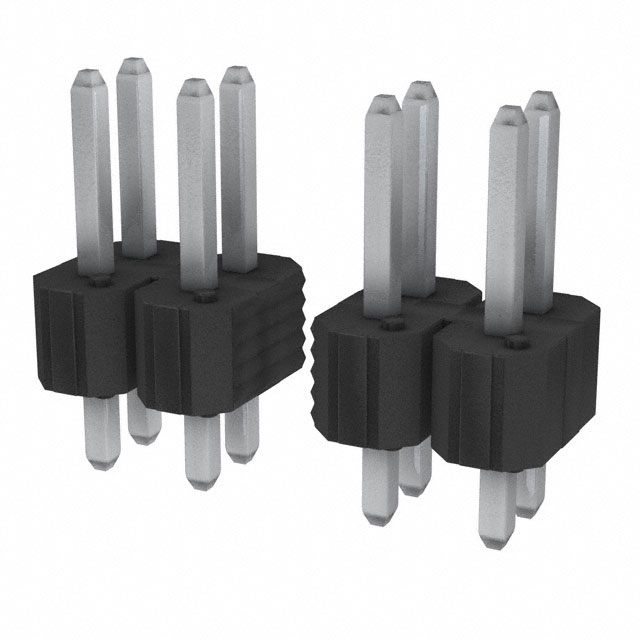

Amphenol ICC (FCI) 78269-434HLF	2	Phosphor Bronze	Unshrouded	All	2.54 mm	0.1 in	Male Pin	Square	0.1 in	2.54 mm	2.41 mm	0.095 in	Black	0.19 "	4.83 mm	UL94 V-0	34	0.1 in	2.54 mm	Header	Through Hole	Solder	Push-Pull		100 çin	2.54 çm	Tin
Amphenol ICC (FCI) 78269-130HLF	2	Phosphor Bronze	Unshrouded	All	2.54 mm	0.1 in	Male Pin	Square	0.1 in	2.54 mm	2.41 mm	0.095 in	Black	0.19 "	4.83 mm	UL94 V-0	30	0.1 in	2.54 mm	Header	Through Hole	Solder	Push-Pull	Gold or Gold GXT™	30 Áin	0.76 Ám
Amphenol ICC (FCI) 78269-172HLF	2	Phosphor Bronze	Unshrouded	All	2.54 mm	0.1 in	Male Pin	Square	0.1 in	2.54 mm	2.41 mm	0.095 in	Black	0.19 "	4.83 mm	UL94 V-0	72	0.1 in	2.54 mm	Header	Through Hole	Solder	Push-Pull	Gold or Gold GXT™	30 Áin	0.76 Ám
Amphenol ICC (FCI) 78269-428HLF	2	Phosphor Bronze	Unshrouded	All	2.54 mm	0.1 in	Male Pin	Square	0.1 in	2.54 mm	2.41 mm	0.095 in	Black	0.19 "	4.83 mm	UL94 V-0	28	0.1 in	2.54 mm	Header	Through Hole	Solder	Push-Pull		100 çin	2.54 çm	Tin
Amphenol ICC (FCI) 78269-420HLF	2	Phosphor Bronze	Unshrouded	All	2.54 mm	0.1 in	Male Pin	Square	0.1 in	2.54 mm	2.41 mm	0.095 in	Black	0.19 "	4.83 mm	UL94 V-0	20	0.1 in	2.54 mm	Header	Through Hole	Solder	Push-Pull		100 çin	2.54 çm	Tin
Amphenol ICC (FCI) 78269-472H	2	Phosphor Bronze	Unshrouded	All	2.54 mm	0.1 in	Male Pin	Square	0.1 in	2.54 mm	2.41 mm	0.095 in	Black	0.19 "	4.83 mm	UL94 V-0	72	0.1 in	2.54 mm	Header	Through Hole	Solder	Push-Pull		100 çin	2.54 çm
