BNC Series
Manufacturer: Rosenberger
Beta
⌘K
RF ADAPTERS - IN SERIES 75 OHM BNC JACK TO JACK ST ADAPTER
| Part | Dielectric Material | Center Contact Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Includes | Mating Cycles | Adapter Series | Adapter Type | Convert To (Adapter End) | Impedance | Center Gender | Conversion Type | Fastening Type | Frequency - Max [Max] | Style | Center Contact Plating | Mounting Type | Mounting Feature | Convert From (Adapter End) | Voltage Rating | Connector Type | Cable Group | Number of Ports | Connector Style | Shield Termination | Housing Color | Contact Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Brass | -25 °C | 110 °C | White Bronze | 1 Connector 1 Lockwasher 1 Nut | 500 | BNC to BNC | Jack to Jack | BNC Jack Female Socket | 75 Ohms | Female to Female | Same Series | Bayonet Lock | 4 GHz | Straight | Gold | Panel Mount | Flange | BNC Jack Female Socket | |||||||||

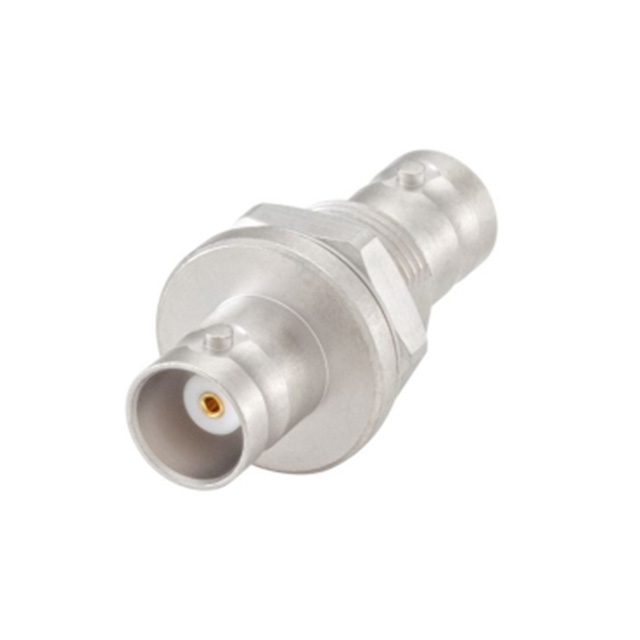

 Rosenberger | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Brass | -25 °C | 110 °C | White Bronze | 1 Connector 1 Lockwasher 1 Nut | 500 | BNC to BNC | Jack to Jack | BNC Jack Female Socket | 50 Ohms | Female to Female | Same Series | Bayonet Lock | 10 GHz | Straight | Gold | Panel Mount | Bulkhead | BNC Jack Female Socket | |||||||||
 Rosenberger | Polytetrafluoroethylene (PTFE) | Brass | Brass | -55 C | 155 C | White Bronze | 1 Connector 1 Contact 1 Ferrule | 500 | 50 Ohms | Bayonet Lock | 10 GHz | Gold | Free Hanging (In-Line) | 400 V | Plug Male Pin | 141 RG-58C | 1 | BNC | Crimp | Silver | Crimp | |||||||||

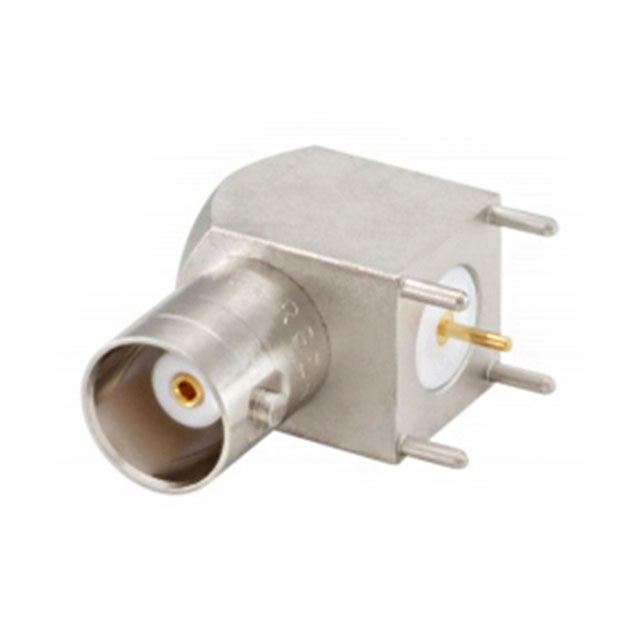

 Rosenberger | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Brass | -55 C | 155 C | Nickel | 500 | 50 Ohms | Bayonet Lock | 10 GHz | Gold | Right Angle Through Hole | 400 V | Female Socket Jack | 1 | BNC | Solder | Silver | Solder | |||||||||||
 Rosenberger | Beryllium Copper | 50 Ohms | Bayonet Lock | 10 GHz | Through Hole | Female Socket Jack | 1 | BNC | Solder | Silver | Solder | |||||||||||||||||||
 Rosenberger | Beryllium Copper | 50 Ohms | Bayonet Lock | 10 GHz | Panel Mount | Bulkhead - Rear Side Nut | Female Socket Jack | 1 | BNC | Solder | Silver | Solder Cup | Extended Insulation | |||||||||||||||||
 Rosenberger | Bronze | 50 Ohms | Bayonet Lock | 10 GHz | Free Hanging (In-Line) Right Angle | Plug Male Pin | 141 RG-58C | 1 | BNC | Clamp | Silver | Solder | ||||||||||||||||||

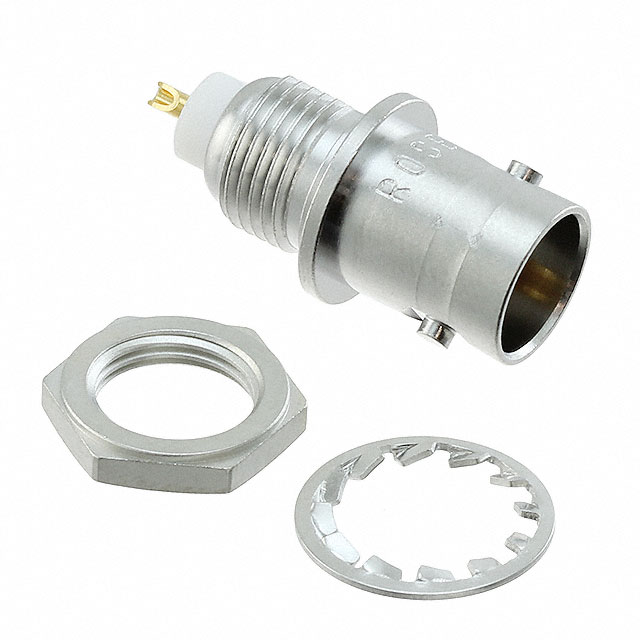

 Rosenberger | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Brass | -65 ░C | 165 °C | White Bronze | 1 Connector 1 Lockwasher 1 Nut | 500 | 75 Ohms | Bayonet Lock | 4 GHz | Gold | Panel Mount | Bulkhead - Rear Side Nut | 400 V | Female Socket Jack | 1 | BNC | Solder | Silver | Solder Cup | Extended Insulation |
