C4PXG-1 Series

Catalog

DIP CABLE - CDP16G/AE16M/X

Part	Cable Termination	Color	Shielding	Pitch - Cable	Pitch - Cable	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Usage	Pitch - Connector	Pitch - Connector	Number of Positions	Contact Finish	Connector Type	Length [x]	Length [x]	Length	Length	Length
CW Industries C4PXG-1618M	IDC	Multiple Ribbon	Unshielded	0.05 in	1.27 mm	2	0.25 Ám	10 Áin	Board In Socket (0.3")	0.1 in	2.54 mm	16	Gold	DIP to Cable	457.2 mm	1.5 ft
CW Industries C4PXG-1606M	IDC	Multiple Ribbon	Unshielded	0.05 in	1.27 mm	2	0.25 Ám	10 Áin	Board In Socket (0.3")	0.1 in	2.54 mm	16	Gold	DIP to Cable			152.4 mm	0.5 '	6 "

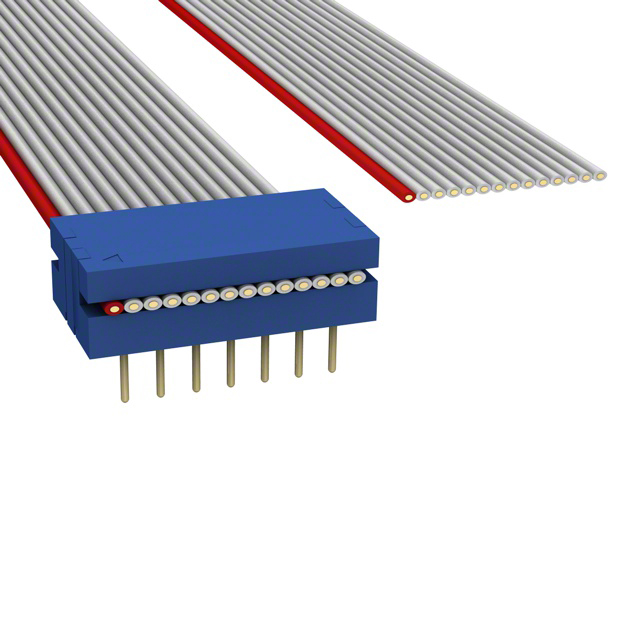

CW Industries C4PXG-1436G	IDC		Unshielded	0.05 in	1.27 mm	2	0.25 Ám	10 Áin	Board In Socket (0.3")	0.1 in	2.54 mm	14	Gold	DIP to Cable			91.44 cm	3 ft
CW Industries C4PXG-1418G	IDC		Unshielded	0.05 in	1.27 mm	2	0.25 Ám	10 Áin	Board In Socket (0.3")	0.1 in	2.54 mm	14	Gold	DIP to Cable	457.2 mm	1.5 ft
CW Industries C4PXG-1618G	IDC		Unshielded	0.05 in	1.27 mm	2	0.25 Ám	10 Áin	Board In Socket (0.3")	0.1 in	2.54 mm	16	Gold	DIP to Cable	457.2 mm	1.5 ft

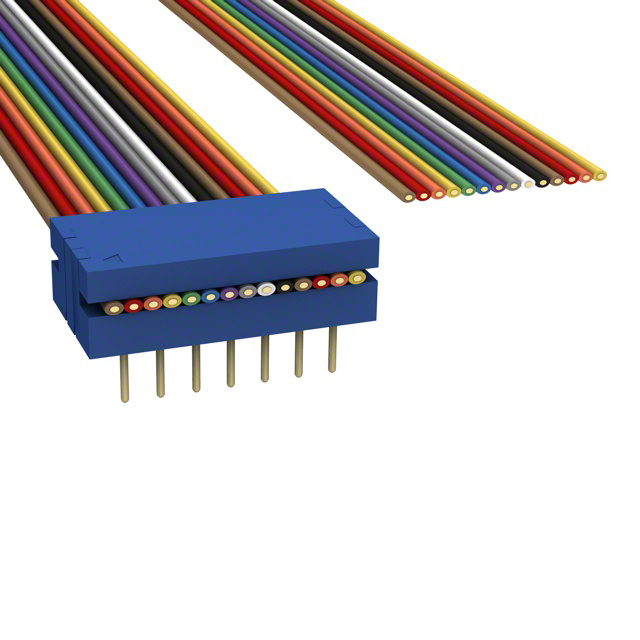

CW Industries C4PXG-1436M	IDC	Multiple Ribbon	Unshielded	0.05 in	1.27 mm	2	0.25 Ám	10 Áin	Board In Socket (0.3")	0.1 in	2.54 mm	14	Gold	DIP to Cable			91.44 cm	3 ft
CW Industries C4PXG-1418M	IDC	Multiple Ribbon	Unshielded	0.05 in	1.27 mm	2	0.25 Ám	10 Áin	Board In Socket (0.3")	0.1 in	2.54 mm	14	Gold	DIP to Cable	457.2 mm	1.5 ft
