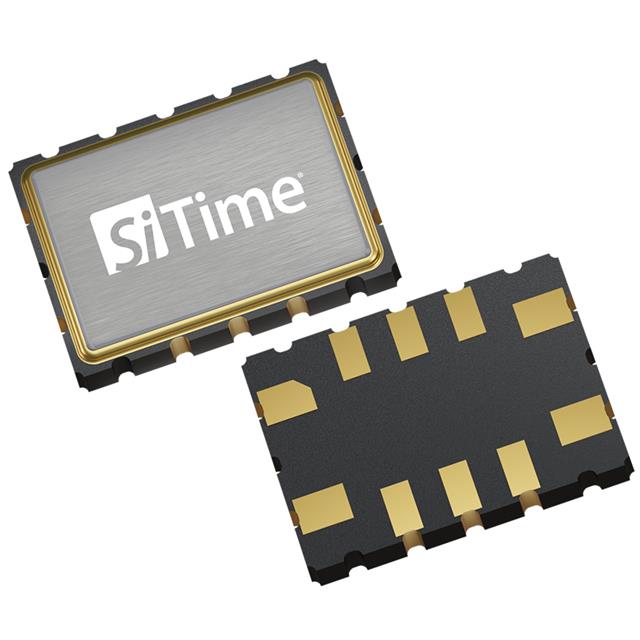

SIT5501 Series
Manufacturer: SiTime
Beta
⌘K
1 MHZ 60 MHZ, ELITE X STRATUM 3
| Part | Current - Supply (Disable) (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Function | Frequency | Output | Voltage - Supply | Package / Case | Mounting Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Absolute Pull Range (APR) | Base Resonator | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Frequency Stability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
51 mA | 5 mm | 7 mm | 0.197 " | 0.276 " | Enable/Disable | 20 MHz | LVCMOS | 3 V | 10-SMD No Lead | Surface Mount | DCXO | 85 °C | -40 C | 10-CQFN (7x5) | 5.68 ppm | MEMS | 0.087 in | 2.2 mm | 20 ppb | |
5 mm | 7 mm | 0.197 " | 0.276 " | 10 MHz | Clipped Sine Wave | 3.3 V | 10-SMD No Lead | Surface Mount | TCXO | 85 °C | -40 C | 10-CQFN (7x5) | MEMS | 0.087 in | 2.2 mm | 10 ppb | ||||
 SiTime | 5 mm | 7 mm | 0.197 " | 0.276 " | 10 MHz | LVCMOS | 3.3 V | 10-SMD No Lead | Surface Mount | DCTCXO | 85 °C | -40 C | 10-CQFN (7x5) | MEMS | 0.087 in | 2.2 mm | 10 ppb | |||
5 mm | 7 mm | 0.197 " | 0.276 " | 10 MHz | LVCMOS | 3.3 V | 10-SMD No Lead | Surface Mount | TCXO | 105 ░C | -40 C | MEMS | 0.087 in | 2.2 mm | 20 ppb |
