TPS62410-Q1 Series

Automotive 2.5V to 6V, 2.25MHz Fixed Frequency Dual (800mA/800mA) Buck Converter

Catalog

Automotive 2.5V to 6V, 2.25MHz Fixed Frequency Dual (800mA/800mA) Buck Converter

Part	Output Type	Supplier Device Package	Voltage - Output (Min/Fixed)	Output Configuration	Frequency - Switching	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Voltage - Input (Max) [Max]	Mounting Type	Number of Outputs	Voltage - Input (Min) [Min]	Package / Case	Function	Topology	Qualification	Grade	Outputs and Type	Outputs and Type	Regulator Topology	Board Type	Utilized IC / Part	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Voltage - Output
Texas Instruments TPS62410DRCTG4	Adjustable	10-VSON (3x3)	0.6 V	Positive	2.25 MHz	85 °C	-40 °C	800 mA	6 V	Surface Mount	2	2.5 V	10-VFDFN Exposed Pad	Step-Down	Buck
Texas Instruments TPS62410DRCT	Adjustable	10-VSON (3x3)	0.6 V	Positive	2.25 MHz	85 °C	-40 °C	800 mA	6 V	Surface Mount	2	2.5 V	10-VFDFN Exposed Pad	Step-Down	Buck
Texas Instruments TPS62410QDRCRQ1	Adjustable	10-VSON (3x3)	0.6 V	Positive	2.25 MHz	125 ¯C	-40 °C	800 mA	6 V	Surface Mount	2	2.5 V	10-VFDFN Exposed Pad	Step-Down	Buck	AEC-Q100	Automotive
Texas Instruments TPS62410DRCR	Adjustable	10-VSON (3x3)	0.6 V	Positive	2.25 MHz	85 °C	-40 °C	800 mA	6 V	Surface Mount	2	2.5 V	10-VFDFN Exposed Pad	Step-Down	Buck

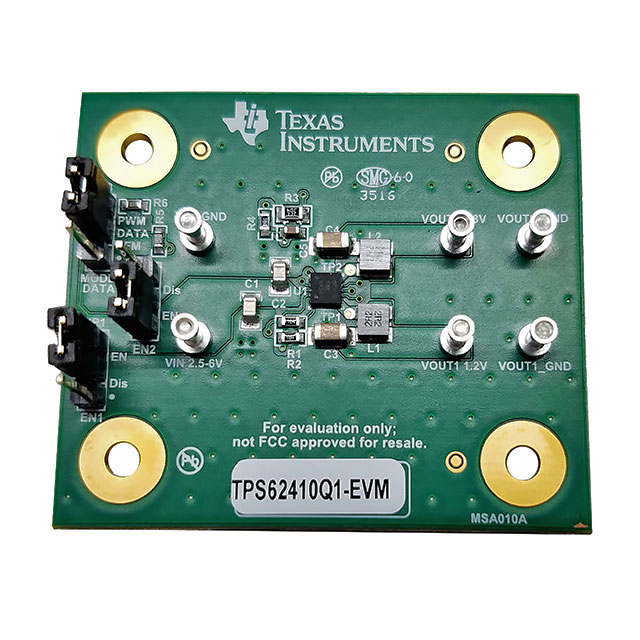

Texas Instruments TPS62410Q1-EVM					2.25 MHz			800 mA										2	Non-Isolated	Buck	Fully Populated	TPS62410-Q1	DC/DC Step Down	6 V	2.5 V	Board(s)	1.2 V 1.8 V

Catalog

Automotive 2.5V to 6V, 2.25MHz Fixed Frequency Dual (800mA/800mA) Buck Converter

Key Features

• Qualified for Automotive ApplicationsHigh Efficiency—up to 95%VINRange From 2.5 V to 6 V2.25 MHz Fixed Frequency OperationOutput Current 2 × 800mAAdjustable Output Voltage From 0.6 V to VINEasyScale™ Optional One Pin Serial Interface forDynamic Output Voltage AdjustmentPower Save Mode at Light Load Currents180° Out of Phase OperationOutput Voltage Accuracy in PWM Mode ±1%Typical 32 µA Quiescent Current for both Converters100% Duty Cycle for Lowest DropoutAvailable in a 10-Pin QFN (3×3mm)EasyScale, PowerPAD are trademarks of Texas Instruments.Qualified for Automotive ApplicationsHigh Efficiency—up to 95%VINRange From 2.5 V to 6 V2.25 MHz Fixed Frequency OperationOutput Current 2 × 800mAAdjustable Output Voltage From 0.6 V to VINEasyScale™ Optional One Pin Serial Interface forDynamic Output Voltage AdjustmentPower Save Mode at Light Load Currents180° Out of Phase OperationOutput Voltage Accuracy in PWM Mode ±1%Typical 32 µA Quiescent Current for both Converters100% Duty Cycle for Lowest DropoutAvailable in a 10-Pin QFN (3×3mm)EasyScale, PowerPAD are trademarks of Texas Instruments.

Description

The TPS62410 device is a synchronous dual step-down DC–DC converter. It provides two independent output voltage rails powered by 1-cell Li-Ion or 3-cell NiMH/NiCD batteries. The device is also suitable to operate from a standard 3.3 V or 5 V voltage rail. With an input voltage range of 2.5 V to 6 V, the TPS62410 is ideal for battery powered portable applications like smart phones, PDAs, and other portable equipment. With the EasyScale™ serial interface, the output voltages can be modified during operation. It therefore supports dynamic voltage scaling for low-power DSP and processors. The TPS62410 operates at 2.25-MHz fixed switching frequency and enter the power-save mode operation at light load currents to maintain high efficiency over the entire load current range. For low-noise applications the devices can be forced into fixed frequency PWM mode by pulling the MODE/DATA pin High. In the shutdown mode, the current consumption is reduced to 1.2 µA. The device allows the use of small inductors and capacitors to achieve a small solution size. The TPS62410 operates over a free-air temperature range of –40°C to 85°C. It is available in a 10-pin leadless package (3 × 3 mm VSON) The TPS62410 device is a synchronous dual step-down DC–DC converter. It provides two independent output voltage rails powered by 1-cell Li-Ion or 3-cell NiMH/NiCD batteries. The device is also suitable to operate from a standard 3.3 V or 5 V voltage rail. With an input voltage range of 2.5 V to 6 V, the TPS62410 is ideal for battery powered portable applications like smart phones, PDAs, and other portable equipment. With the EasyScale™ serial interface, the output voltages can be modified during operation. It therefore supports dynamic voltage scaling for low-power DSP and processors. The TPS62410 operates at 2.25-MHz fixed switching frequency and enter the power-save mode operation at light load currents to maintain high efficiency over the entire load current range. For low-noise applications the devices can be forced into fixed frequency PWM mode by pulling the MODE/DATA pin High. In the shutdown mode, the current consumption is reduced to 1.2 µA. The device allows the use of small inductors and capacitors to achieve a small solution size. The TPS62410 operates over a free-air temperature range of –40°C to 85°C. It is available in a 10-pin leadless package (3 × 3 mm VSON)
