COB-WD Series
Manufacturer: Luxtech, LLC
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

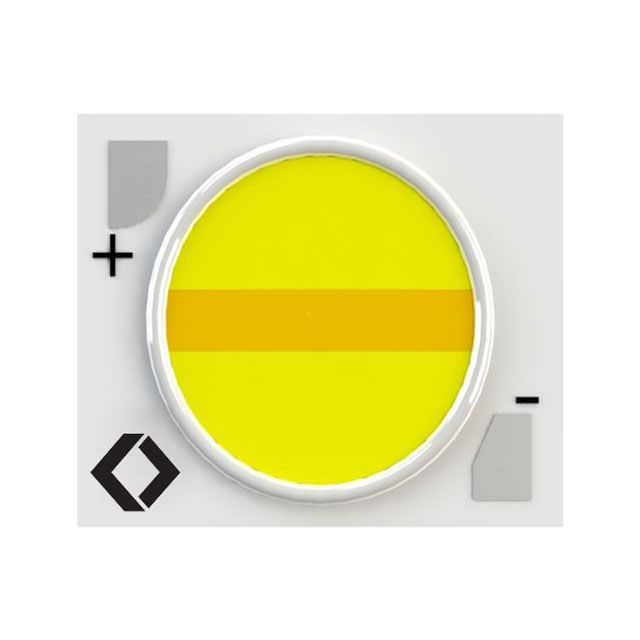

LED COB WARM WHT RECT 3000K
| Part | Voltage - Forward (Vf) (Typ) | Lumens/Watt | Type | Luminous Flux | Current - Test | Current - Max | Light Emitting Surface (LES) Diameter | CCT (K) Maximum | CCT (K) Minimum | Lens Type | Size / Dimension Length | Size / Dimension Width | Configuration | CRI (Color Rendering Index) | Height | Temperature - Test | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Luxtech, LLC | 34.5 V | 110 lm/W | Chip On Board (COB) | 3600 lm | 950 mA | 1.05 A | 17 mm | 3000 K | 1800 K | Flat | 23.9 mm | 19.9 mm | Rectangle | 90 | 1.6 mm | 105 °C | Warm White |
Luxtech, LLC | 36 V | 98 lm/W | Chip On Board (COB) | 1220 lm | 350 mA | 385 mA | 10 mm | 3000 K | 1800 K | Flat | 15 mm | 12 mm | Rectangle | 90 | 1.5 mm | 105 °C | Warm White |
