833-006 Series
Manufacturer: EDAC Inc.
Beta
⌘K

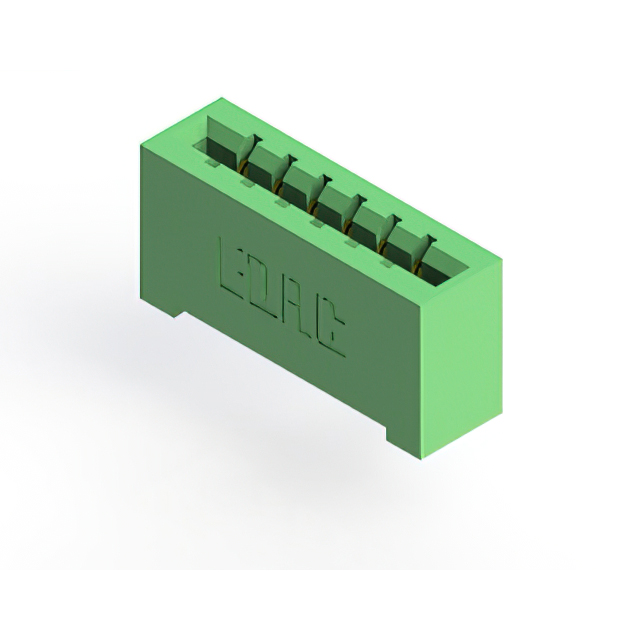

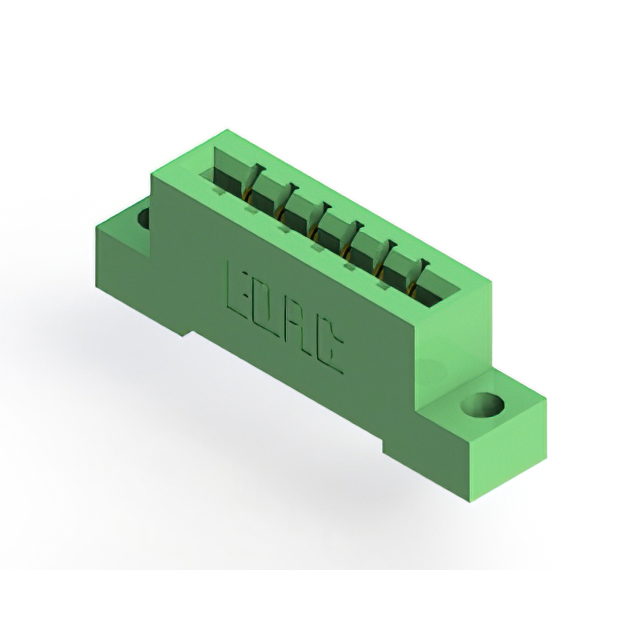

CONN EDGE SGL FMALE 6POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Type | Number of Positions | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Contact Finish | Number of Rows | Number of Positions/Bay/Row | Flange Feature | Pitch | Pitch | Color | Gender | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Termination | Mounting Type | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | 6 | Non Specified - Single Edge | 125 °C | -40 C | Single | Gold | 1 | 6 | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Green | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Through Hole | Copper Alloy | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | 6 | Non Specified - Single Edge | 125 °C | -40 C | Single | Gold | 1 | 6 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | Green | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Through Hole | Copper Alloy | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | 6 | Non Specified - Single Edge | 125 °C | -40 C | Single | Gold | 1 | 6 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | Green | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Through Hole | Copper Alloy | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | 6 | Non Specified - Single Edge | 125 °C | -40 C | Single | Gold | 1 | 6 | 3.96 mm | 0.156 in | Green | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Through Hole | Copper Alloy | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | 6 | Non Specified - Single Edge | 125 °C | -40 C | Single | Gold | 1 | 6 | Side Mount Opening Unthreaded | 3.96 mm | 0.156 in | Green | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Through Hole | Copper Alloy | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | 6 | Non Specified - Single Edge | 125 °C | -40 C | Single | Gold | 1 | 6 | 3.96 mm | 0.156 in | Green | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Through Hole | Copper Alloy | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | 6 | Non Specified - Single Edge | 125 °C | -40 C | Single | Gold | 1 | 6 | M3 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Green | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Through Hole | Copper Alloy | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | 6 | Non Specified - Single Edge | 125 °C | -40 C | Single | Gold | 1 | 6 | Side Mount Opening Unthreaded | 3.96 mm | 0.156 in | Green | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Through Hole | Copper Alloy | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | 6 | Non Specified - Single Edge | 125 °C | -40 C | Single | Gold | 1 | 6 | 3.96 mm | 0.156 in | Green | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Through Hole | Copper Alloy | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Cantilever | 6 | Non Specified - Single Edge | 125 °C | -40 C | Single | Gold | 1 | 6 | 3.96 mm | 0.156 in | Green | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Through Hole | Copper Alloy | 0.156 " | 3.96 mm |
