78276 Series

Catalog

CONN HEADER R/A 10POS 2.54MM

Part	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Material	Termination	Insulation Color	Mounting Type	Number of Positions	Fastening Type	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Finish - Mating	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating [x]	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Insulation Material	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish - Post
Amphenol ICC (FCI) 78276-210HLF	UL94 V-0	15 µin	0.38 µm	All	Phosphor Bronze	Press-Fit Solder	Black	Through Hole Right Angle	10	Push-Pull	4.83 mm	0.19 in	2.54 mm	0.1 in	Square	Gold or Gold GXT™	2	0.318 "	8.08 mm	Header	0.12 in	3.05 mm	Male Pin	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Unshrouded
Amphenol ICC (FCI) 78276-414HLF	UL94 V-0	100 çin	2.54 çm	All	Phosphor Bronze	Press-Fit Solder	Black	Through Hole Right Angle	14	Push-Pull	4.83 mm	0.19 in	2.54 mm	0.1 in	Square		2	0.318 "	8.08 mm	Header	0.12 in	3.05 mm	Male Pin	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Unshrouded	Tin
Amphenol ICC (FCI) 78276-214	UL94 V-0	15 µin	0.38 µm	All	Phosphor Bronze	Press-Fit Solder	Black	Through Hole Right Angle	14	Push-Pull	4.83 mm	0.19 in	2.54 mm	0.1 in	Square	Gold or Gold GXT™	2	0.318 "	8.08 mm	Header	0.12 in	3.05 mm	Male Pin		0.1 in	2.54 mm	Unshrouded
Amphenol ICC (FCI) 78276-420H	UL94 V-0	100 çin	2.54 çm	All	Phosphor Bronze	Press-Fit Solder	Black	Through Hole Right Angle	20	Push-Pull	4.83 mm	0.19 in	2.54 mm	0.1 in	Square		2	0.318 "	8.08 mm	Header	0.12 in	3.05 mm	Male Pin	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Unshrouded
Amphenol ICC (FCI) 78276-130	UL94 V-0	30 Áin	0.76 Ám	All	Phosphor Bronze	Press-Fit Solder	Black	Through Hole Right Angle	30	Push-Pull	4.83 mm	0.19 in	2.54 mm	0.1 in	Square	Gold or Gold GXT™	2	0.318 "	8.08 mm	Header	0.12 in	3.05 mm	Male Pin		0.1 in	2.54 mm	Unshrouded

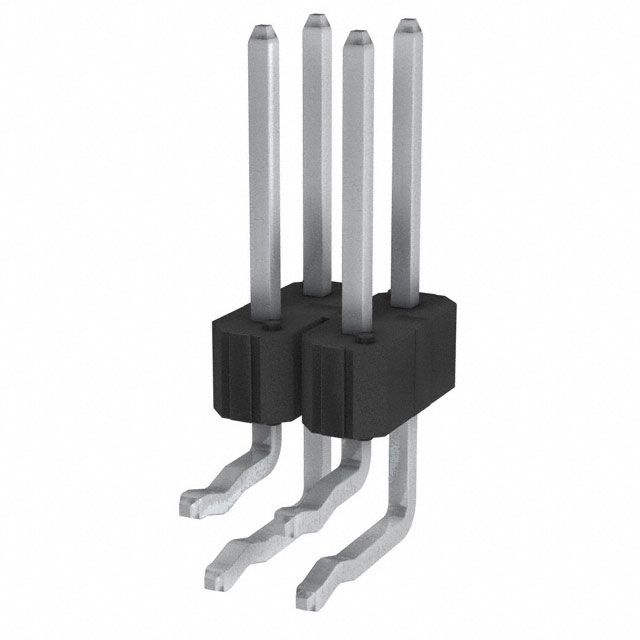

Amphenol ICC (FCI) 78276-404HLF	UL94 V-0	100 çin	2.54 çm	All	Phosphor Bronze	Press-Fit Solder	Black	Through Hole Right Angle	4	Push-Pull	4.83 mm	0.19 in	2.54 mm	0.1 in	Square		2	0.318 "	8.08 mm	Header	0.12 in	3.05 mm	Male Pin	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Unshrouded	Tin
Amphenol ICC (FCI) 78276-272H	UL94 V-0	15 µin	0.38 µm	All	Phosphor Bronze	Press-Fit Solder	Black	Through Hole Right Angle	72	Push-Pull	4.83 mm	0.19 in	2.54 mm	0.1 in	Square	Gold or Gold GXT™	2	0.318 "	8.08 mm	Header	0.12 in	3.05 mm	Male Pin	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Unshrouded
Amphenol ICC (FCI) 78276-120	UL94 V-0	30 Áin	0.76 Ám	All	Phosphor Bronze	Press-Fit Solder	Black	Through Hole Right Angle	20	Push-Pull	4.83 mm	0.19 in	2.54 mm	0.1 in	Square	Gold or Gold GXT™	2	0.318 "	8.08 mm	Header	0.12 in	3.05 mm	Male Pin		0.1 in	2.54 mm	Unshrouded
Amphenol ICC (FCI) 78276-650H	UL94 V-0	30 Áin	0.76 Ám	All	Phosphor Bronze	Press-Fit Solder	Black	Through Hole Right Angle	50	Push-Pull	4.83 mm	0.19 in	2.54 mm	0.1 in	Square	Gold or Gold GXT™	2	0.318 "	8.08 mm	Header	0.12 in	3.05 mm	Male Pin	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Unshrouded

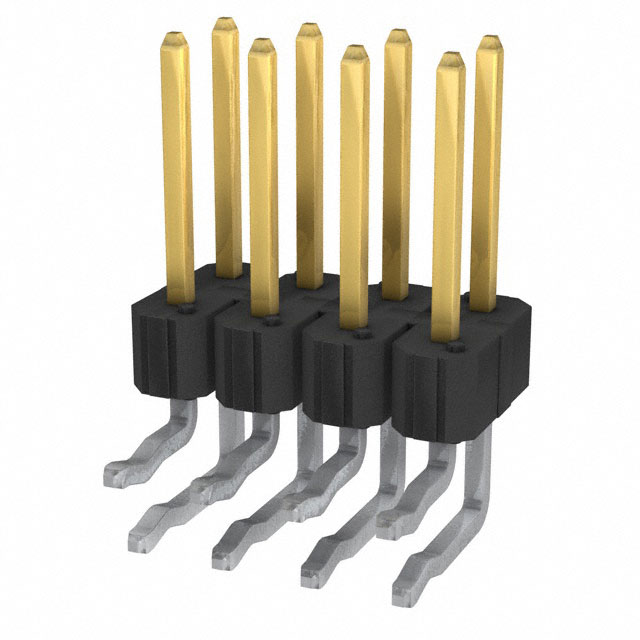

Amphenol ICC (FCI) 78276-208HLF	UL94 V-0	15 µin	0.38 µm	All	Phosphor Bronze	Press-Fit Solder	Black	Through Hole Right Angle	8	Push-Pull	4.83 mm	0.19 in	2.54 mm	0.1 in	Square	Gold or Gold GXT™	2	0.318 "	8.08 mm	Header	0.12 in	3.05 mm	Male Pin	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Unshrouded
