C016 20H003 Series

Catalog

CONN PLUG MALE 4POS GOLD SCREW

Part	Fastening Type	Number of Positions	Connector Type	Ingress Protection	Features	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Termination	Mounting Type

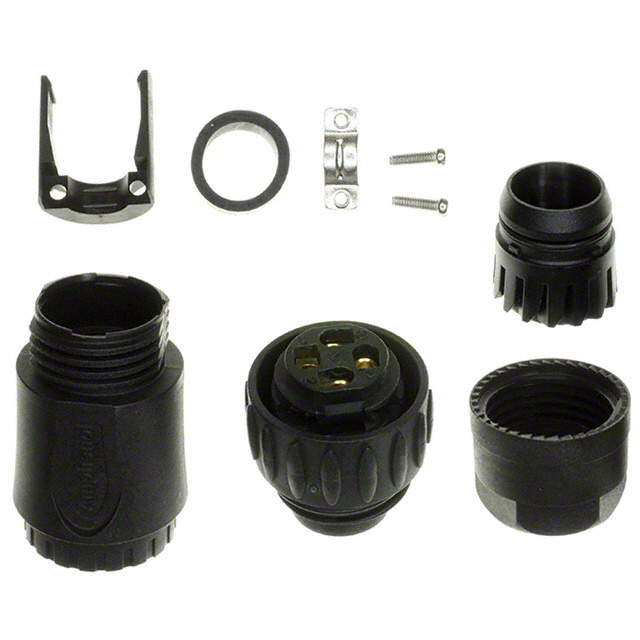

Amphenol Tuchel Industrial C016 20H003 210 12	Threaded	4	Plug Male Pins	IP65 IP67	Cable Clamp Strain Relief	16 A	Plastic	Gold	Keyed	-40 C	100 °C	400 V	Screw	Free Hanging (In-Line)

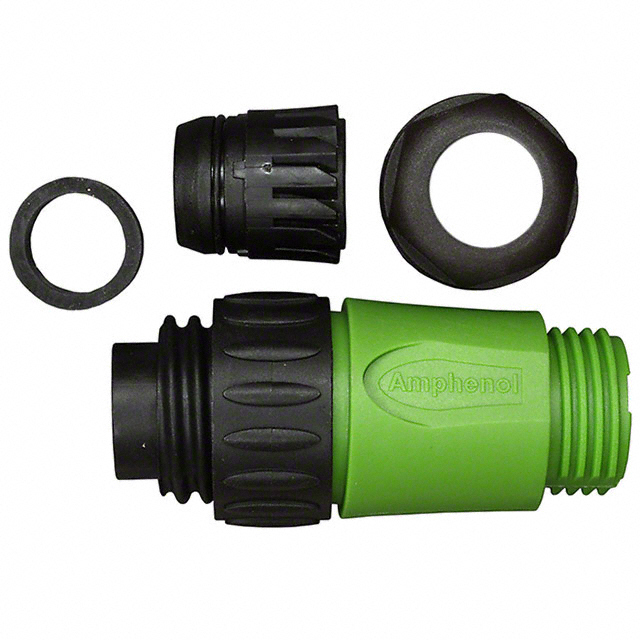

Amphenol Tuchel Industrial C016 20H003 800 17	Threaded	4	Plug Male Pins	IP65 IP67	Cable Clamp	16 A	Plastic		Keyed	-40 C	100 °C	400 V	Screw	Free Hanging (In-Line)

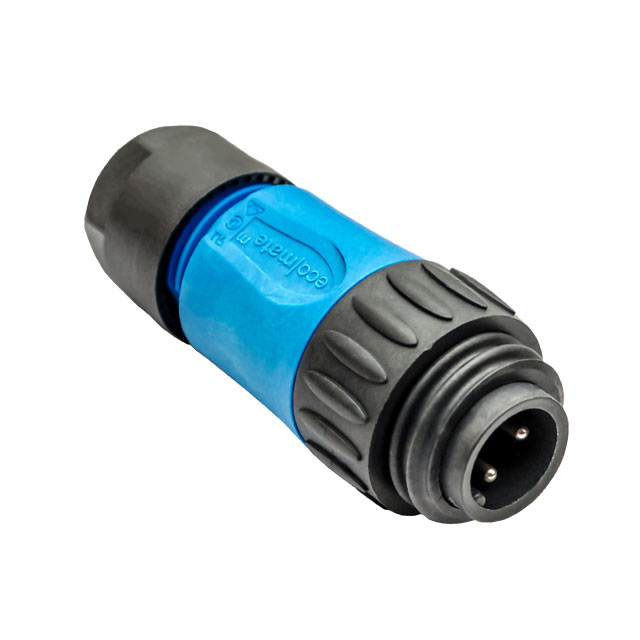

Amphenol Tuchel Industrial C016 20H003 210 10	Threaded	4	Plug Male Pins	IP65 IP67	Cable Clamp Strain Relief	16 A	Plastic	Gold	Keyed	-40 C	100 °C	400 V	Screw	Free Hanging (In-Line)

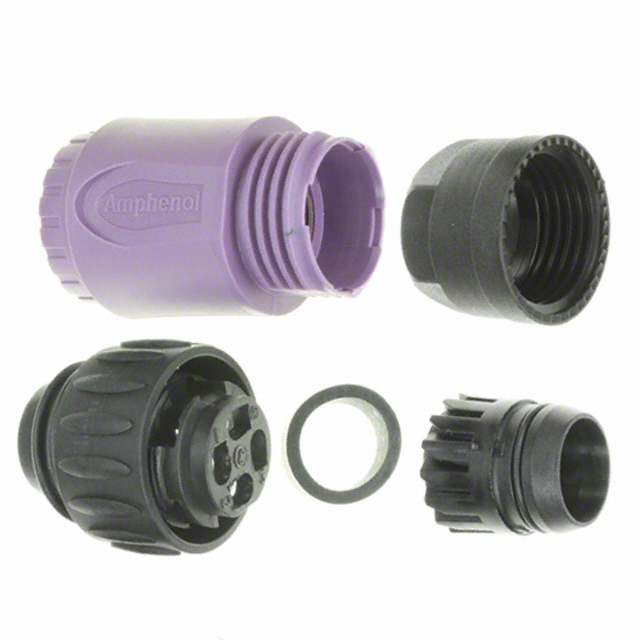

Amphenol Tuchel Industrial C016 20H003 800 18	Threaded	4	Plug Male Pins	IP65 IP67	Cable Clamp	16 A	Plastic		Keyed	-40 C	100 °C	400 V	Screw	Free Hanging (In-Line)

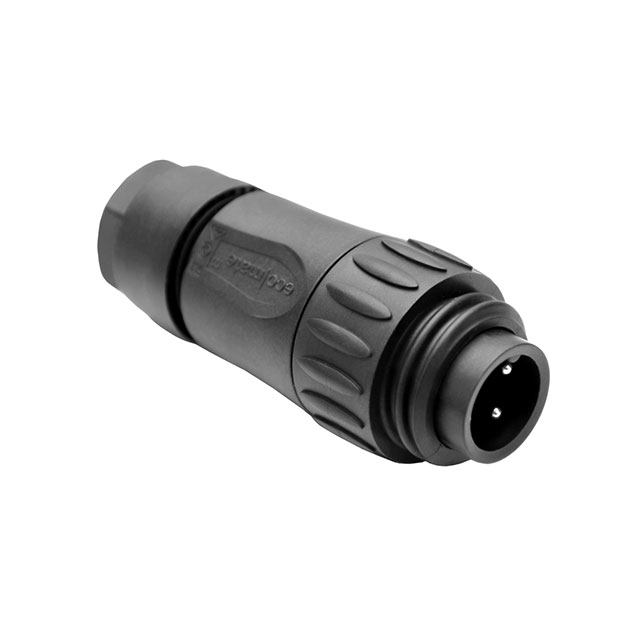

Amphenol Tuchel Industrial C016 20H003 804 12	Threaded	4	Plug Male Pins	IP65 IP67		16 A	Plastic	Gold	Keyed	-40 C	100 °C	400 V	Screw	Free Hanging (In-Line)

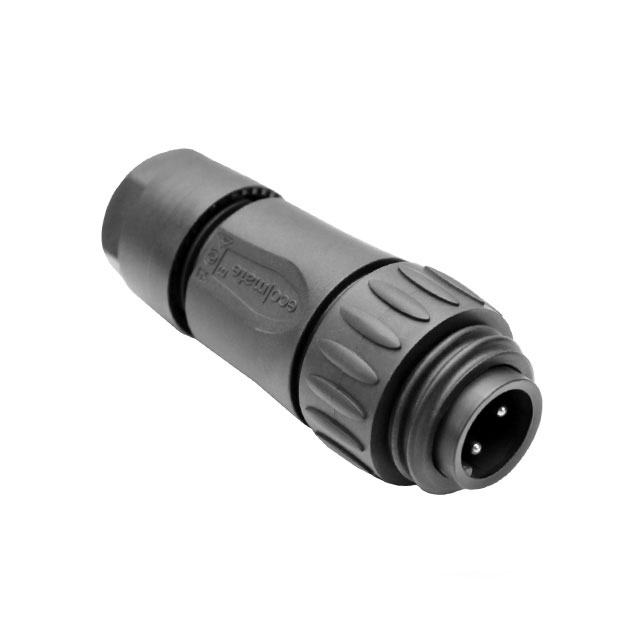

Amphenol Tuchel Industrial C016 20H003 200 12	Threaded	4	Plug Male Pins	IP65 IP67	Cable Clamp	16 A	Plastic	Gold	Keyed	-40 C	100 °C	400 V	Screw	Free Hanging (In-Line)

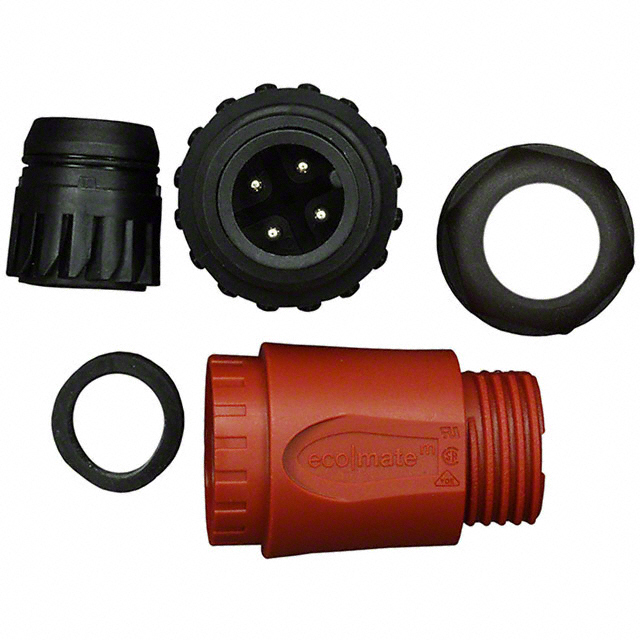

Amphenol Tuchel Industrial C016 20H003 800 11	Threaded	4	Plug Male Pins	IP65 IP67	Cable Clamp	16 A	Plastic		Keyed	-40 C	100 °C	400 V	Screw	Free Hanging (In-Line)
