RT6200 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

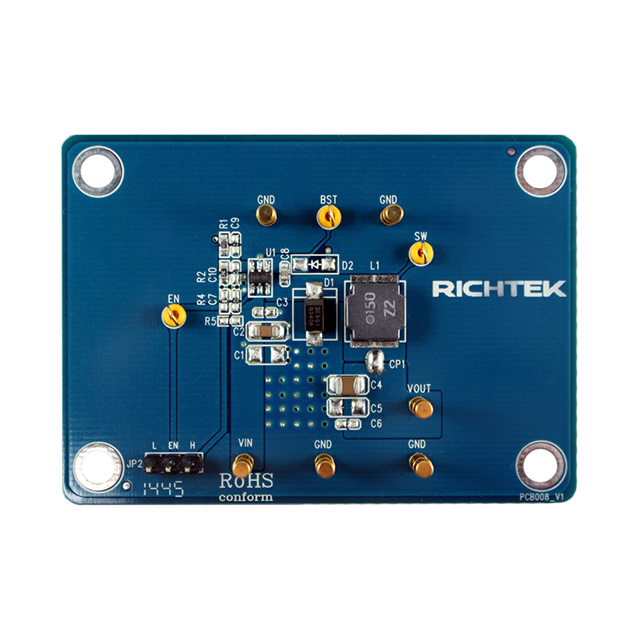

EVAL MODULE FOR RT6200GE
| Part | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Voltage - Output | Main Purpose | Utilized IC / Part | Regulator Topology | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Frequency - Switching | Contents | Output Configuration | Voltage - Output (Min/Fixed) | Voltage - Output (Max) [Max] | Supplier Device Package | Package / Case | Mounting Type | Output Type | Synchronous Rectifier | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Function | Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | 5 V | DC/DC Step Down | RT6200 | Buck | 600 mA | 4.5 V | 36 V | 1.2 MHz | Board(s) | |||||||||||||||
 Richtek USA Inc. | 600 mA | 1.2 MHz | Positive | 0.8 V | 15 V | SOT-23-6 | SOT-23-6 | Surface Mount | Adjustable | 36 V | 4.5 V | 85 C | -40 ¯C | 1 | Step-Down | Buck |
