PCA.0S Series

Manufacturer: LEMO

Catalog

CONN CIRC RCPT 2P GOLD SLDR CUP

Part	Mounting Type	Ingress Protection	Orientation	Fastening Type	Number of Positions	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Features	Contact Material	Primary Material	Color	Contact Finish - Mating	Shielding	Insert Material	Shell Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Current Rating (Amps)	Material Flammability Rating	Connector Type	Shell Size - Insert	Cable Opening [Max] [custom]	Body Finish	Mating Cycles	Impedance	Shield Termination	Cable Group	Center Contact Material	Connector Style	Body Material	Center Contact Plating	Contact Termination	Number of Ports	Housing Color	Dielectric Material	Cable Opening [custom]	Cable Opening [custom]
LEMO PCA.0S.302.CLAC42	Free Hanging (In-Line)	IP50	Keyed	Push-Pull	2	Chrome	-55 °C	250 °C	Brass Chrome	Backshell	Brass Bronze	Metal	Silver	Gold	Shielded	Polyetheretherketone (PEEK)	Brass	0.126 in	4.2 mm	0.165 in	3.2 mm	10 A	UL94 V-0	Female Sockets Male Pins Receptacle	302
LEMO PCA.0S.303.CLLC37	Free Hanging (In-Line)	IP50	Keyed	Push-Pull		Chrome	-55 °C	250 °C	Brass Chrome	Backshell	Brass Bronze	Metal	Silver	Gold	Shielded	Polyetheretherketone (PEEK)	Brass	0.126 in		0.146 in	3.2 mm	7 A	UL94 V-0	Female Sockets Male Pins Receptacle	303	3.7 mm
LEMO PCA.0S.650.CTLC32	Free Hanging (In-Line)	IP50		Push-Pull			-55 °C	250 °C																Female Socket Receptacle			Chrome	1000	50 Ohms	Clamp	178 RG-174	Beryllium Copper	Triaxial	Brass	Gold	Solder	1	Silver	Polytetrafluoroethylene (PTFE)
LEMO PCA.0S.302.CLLL42	Free Hanging (In-Line)	IP50	Keyed	Push-Pull	2	Chrome	-55 °C	250 °C	Brass Chrome	Backshell	Brass Bronze	Metal	Silver	Gold	Shielded	Polyetheretherketone (PEEK)	Brass	0.126 in	4.2 mm	0.165 in	3.2 mm	10 A	UL94 V-0	Female Sockets Male Pins Receptacle	302
LEMO PCA.0S.304.CLLC32Z	Free Hanging (In-Line)	IP50	Keyed	Push-Pull	4	Chrome	-55 °C	250 °C	Brass Chrome	Backshell	Brass Bronze	Metal	Silver	Gold	Shielded	Polyetheretherketone (PEEK)	Brass					7 A	UL94 V-0	Female Sockets Male Pins Receptacle	304															2.2 mm 3.2 mm	0.087 in 0.126 in
LEMO PCA.0S.303.CLLC42Z	Free Hanging (In-Line)	IP50	Keyed	Push-Pull		Chrome	-55 °C	250 °C	Brass Chrome	Backshell	Brass Bronze	Metal	Silver	Gold	Shielded	Polyetheretherketone (PEEK)	Brass	0.126 in	4.2 mm	0.165 in	3.2 mm	7 A	UL94 V-0	Female Sockets Male Pins Receptacle	303
LEMO PCA.0S.302.ZLLT		IP50	Keyed		2		-55 °C	250 °C		Insert Only Requires Shell	Brass Bronze			Gold	Shielded	Polyetheretherketone (PEEK)						10 A	UL94 V-0	Female Sockets Insert Male Pins	302

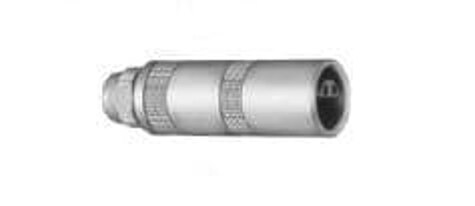

LEMO PCA.0S.250.CTLC27	Free Hanging (In-Line)	IP50		Push-Pull			-55 °C	250 °C																Female Socket Receptacle			Chrome	1000	50 Ohms	Clamp	174 174A 178B 188A 196A 316B RG-122	Beryllium Copper	Coaxial	Brass	Gold	Solder		Silver	Polytetrafluoroethylene (PTFE)
LEMO PCA.0S.303.CLLC44	Free Hanging (In-Line)	IP50	Keyed	Push-Pull		Chrome	-55 °C	250 °C	Brass Chrome	Backshell	Brass Bronze	Metal	Silver	Gold	Shielded	Polyetheretherketone (PEEK)	Brass					7 A	UL94 V-0	Female Sockets Male Pins Receptacle	303
LEMO PCA.0S.650.CTLC32Z	Free Hanging (In-Line)	IP50		Push-Pull			-55 °C	250 °C																Female Socket Receptacle			Chrome	1000	50 Ohms	Clamp	178 RG-174	Beryllium Copper	Triaxial	Brass	Gold	Solder	1	Silver	Polytetrafluoroethylene (PTFE)
