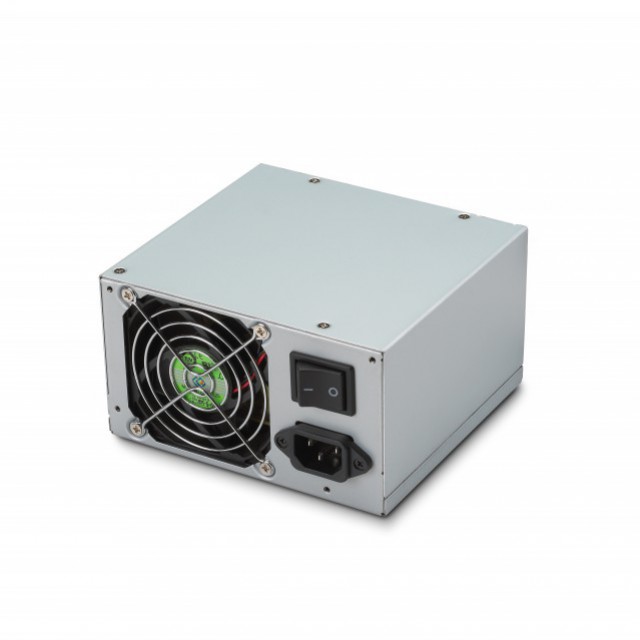

FSP500 Series
Manufacturer: FSP Technology Inc.
Beta
⌘K
AC/DC CNVT 3.3V 5V 2X12V 2X-5V
| Part | Power (Watts) | Minimum Load Required | Voltage - Output 4 | Voltage - Output 1 | Voltage - Output 2 | Number of Outputs | Current - Output 1 | Mounting Type | Voltage - Output 5 | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output 5 | Current - Output 2 | Current - Output 4 | Current - Output 3 | Voltage - Output 3 | Approval Agency | Standard Number | Applications | Current - Output 6 | Features | Type | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 FSP Technology Inc. | 500 W 698 W | 12 V | 3.3 V | 5 V | 6 | 32 A | Chassis Mount | -5 V | 264 VAC | 90 VAC | 200 mA | 30 A | 18 A | 18 A | 12 V | CE cURus FCC TUV VCCI | 60601-1 60950-1 | ITE (Commercial) Medical | 800 mA | PFC Standby Output Universal Input | ATX | 0 °C | 50 °C | 78 % | 5.91 in | 140 mm | 3.39 " | 86 mm | 5.51 in | 150 mm | -5 V |
