HL21 Series

Catalog

PREMIUM CAST COPPER MECHANICAL PREMIUM SINGLE BARREL ONE-HOLE LUG, TYPE HL, 2/0-4/0 AWG STRANDED OR 150-200 NAVY CABLE, 3/8" BOL

Part	Contact Material	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Length - Overall	Length - Overall	Features	Terminal Style	Termination	Terminal Type	Mounting Type	Tab Thickness [custom]	Tab Thickness [custom]	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]

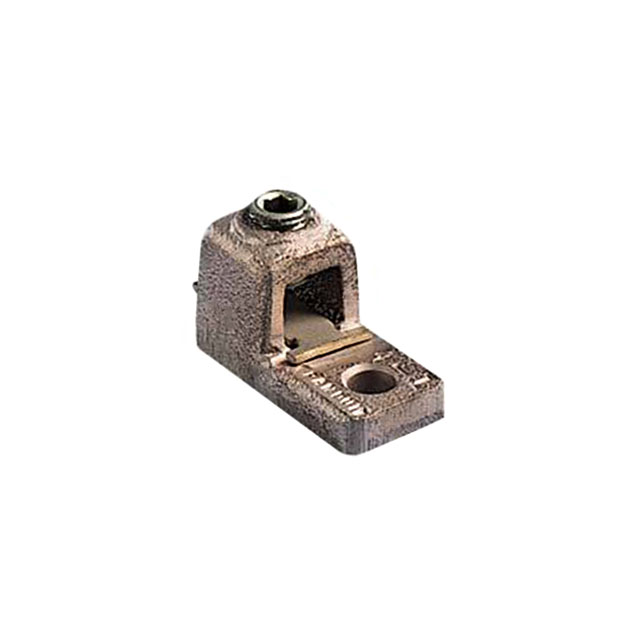

Panduit Corp HL21-1-5	Copper	0.44 in	11.18 mm	55.63 mm	2.19 in	With Screw	Single Stud Hole	Screw	Lug Grounding	Free Hanging (In-Line)	0.25 in	6.35 mm	Non-Insulated	4 aught AWG	2 aught AWG	25.4 mm	1 in

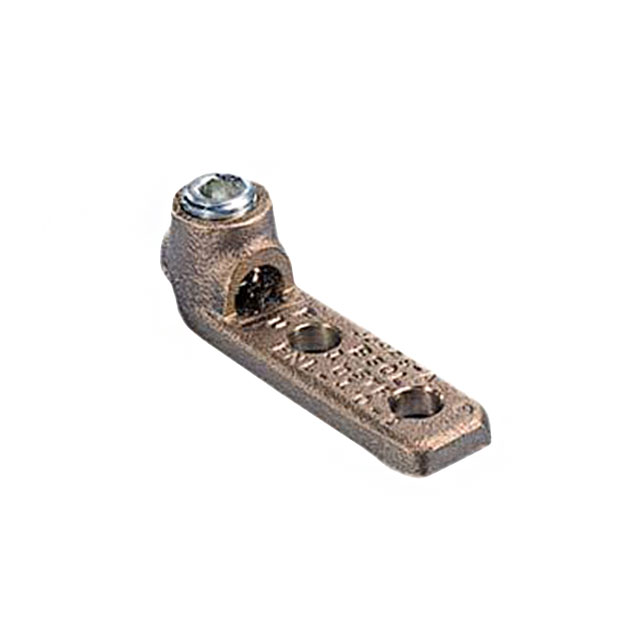

Panduit Corp HL21-2N-5	Copper Alloy					With Screw	Two Stud Holes	Screw	Lug Grounding	Free Hanging (In-Line)	0.25 in	6.35 mm	Non-Insulated	4 aught AWG	2 aught AWG	1.25 in		0.5 Stud	31.75 mm

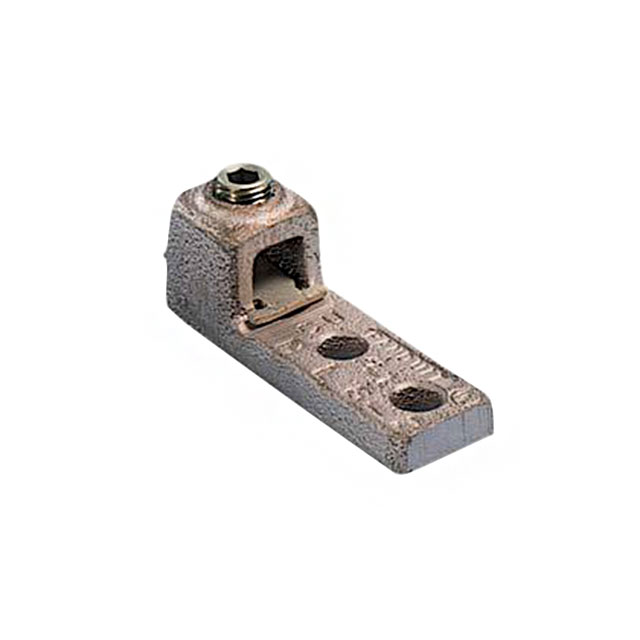

Panduit Corp HL21-2-5	Copper Alloy					With Screw	Two Stud Holes	Screw	Lug Grounding	Free Hanging (In-Line)	0.25 in	6.35 mm	Non-Insulated	4 aught AWG	2 aught AWG	25.4 mm	1 in	0.375 Stud		3 in	76.2 mm
