CLT Series

Catalog

SPIRAL WRAPS, SLEEVES, TUBING & CONDUIT CORR. LOOM TUBING SOLID .62

Part	Material	Abrasion Protection	Type	Features	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type Attributes	Length	Length	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material Flammability Rating	Wall Thickness [Min]	Wall Thickness [Min]	Wall Thickness [Max]	Wall Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Color	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Heat Protection	Length [x]	Length [x]
Panduit Corp CLTS62F-C3	Polyethylene (PE)	Abrasion Resistant	Wire Loom Protective Hose	Crush Resistant Impact Resistant	0.664 in	16.87 mm	Convoluted Corrugated	100 '	30.48 m	21.51 mm	0.847 in	UL94 HB	0.007 in	0.18 mm	0.02 in	0.51 mm	-40 C	50 °C
Panduit Corp CLT35F-C20	Polyethylene (PE)	Abrasion Resistant	Slit Wrap	Crush Resistant Impact Resistant			Slit Harness	100 '	30.48 m				0.006 in	0.15 mm	0.025 in	0.64 mm	-40 C	50 °C	0.35 in	8.89 mm	Black	12.8 mm	0.504 in
Panduit Corp CLTS35N-C		Abrasion Resistant	Wire Loom Protective Hose	Crush Resistant Impact Resistant	0.35 in	8.89 mm	Convoluted Corrugated	100 '	30.48 m	12.79 mm	0.503 in	UL94 HB	0.006 in	0.15 mm	0.025 in	0.64 mm	-40 C	110 °C			Black			Heat Stabilized
Panduit Corp CLT100N-C630		Abrasion Resistant	Slit Wrap	Crush Resistant Impact Resistant			Slit Harness	100 '	30.48 m				0.008 "	0.2 mm	0.03 "	0.76 mm	-40 C	110 °C	0.912 "	23.16 mm	Black	28.02 mm	1.103 "	Heat Stabilized

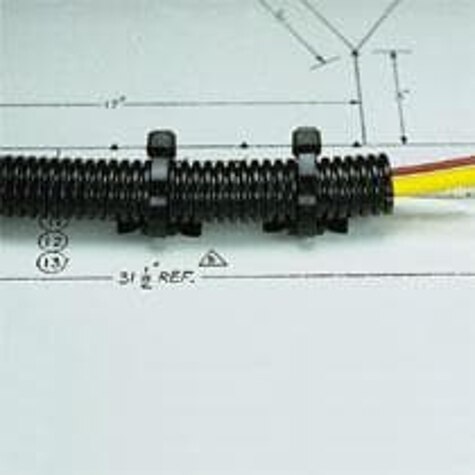

Panduit Corp CLTS150F-D	Polyethylene (PE)	Abrasion Resistant	Wire Loom Protective Hose	Crush Resistant Impact Resistant	1.575 in	40 mm	Convoluted Corrugated			47.02 mm	1.851 in	UL94 HB	0.01 in	0.25 mm	0.032 in	0.81 mm	-40 C	50 °C			Black				152.4 m	500 ft
Panduit Corp CLTS25F-10M	Polyethylene (PE)	Abrasion Resistant	Wire Loom Protective Hose	Crush Resistant Impact Resistant	0.284 in	7.21 mm	Convoluted Corrugated	10000 ft	3048 m	10.11 mm	0.398 in	UL94 HB	0.007 in	0.18 mm	0.02 in	0.51 mm	-40 C	50 °C			Black
Panduit Corp CLT100PUV-0		Abrasion Resistant	Slit Wrap				Slit Harness					UL94 HB	0.5 "	12.7 mm	0.66 "	16.76 mm			1.142 in	29 mm	Black	34.5 mm	1.358 in		709.88 m	2329 '
Panduit Corp CLT100N-125M630		Abrasion Resistant	Slit Wrap	Crush Resistant Impact Resistant			Slit Harness	1250 ft	381 m				0.008 "	0.2 mm	0.03 "	0.76 mm	-40 C	110 °C	0.912 "	23.16 mm	Black	28.02 mm	1.103 "	Heat Stabilized
Panduit Corp CLTS35F-C	Polyethylene (PE)	Abrasion Resistant	Wire Loom Protective Hose	Crush Resistant Impact Resistant	0.35 in	8.89 mm	Convoluted Corrugated	100 '	30.48 m	12.79 mm	0.503 in	UL94 HB	0.006 in	0.15 mm	0.025 in	0.64 mm	-40 C	50 °C			Black
Panduit Corp CLTS125N-L		Abrasion Resistant	Wire Loom Protective Hose	Crush Resistant Impact Resistant	1.278 in	32.46 mm	Convoluted Corrugated	50 ft	15.24 m	39.01 mm	1.536 in	UL94 HB	0.008 "	0.2 mm	0.03 "	0.76 mm	-40 C	110 °C			Black			Heat Stabilized
