701W-15 Series

Manufacturer: Qualtek

Catalog

PWR ENT RCPT IEC320-C14 PNL SLDR

Part	Panel Thickness	Panel Thickness	Filter Type	Approval Agency	Voltage Rating - Appliance Inlet	Connector Style	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Appliance Inlet	Mounting Type	Connector Type	Panel Cutout Dimensions	Termination	Termination

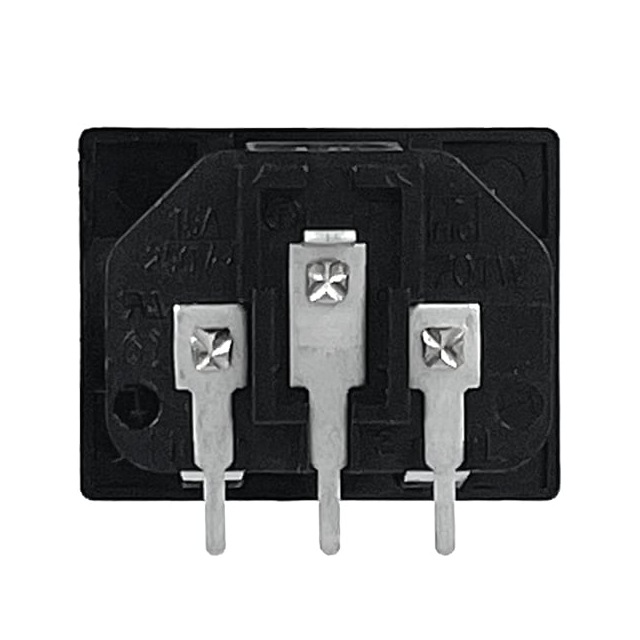

Qualtek 701W-15/06	1.5 mm	0.059 in	Unfiltered - Commercial	CCC CSA UL VDE	250 VAC	IEC 320-C14	Solder	27.2 mm	19.7 mm	10 A	Panel Mount Right Angle Snap-In Through Hole	Receptacle Male Blades
Qualtek 701W-15/10	1.5 mm	0.059 in	Unfiltered - Commercial	CCC CSA UL VDE	250 VAC	IEC 320-C14	Solder	27.2 mm	20 mm	10 A	Panel Mount Right Angle Snap-In Through Hole	Receptacle Male Blades	Rectangular

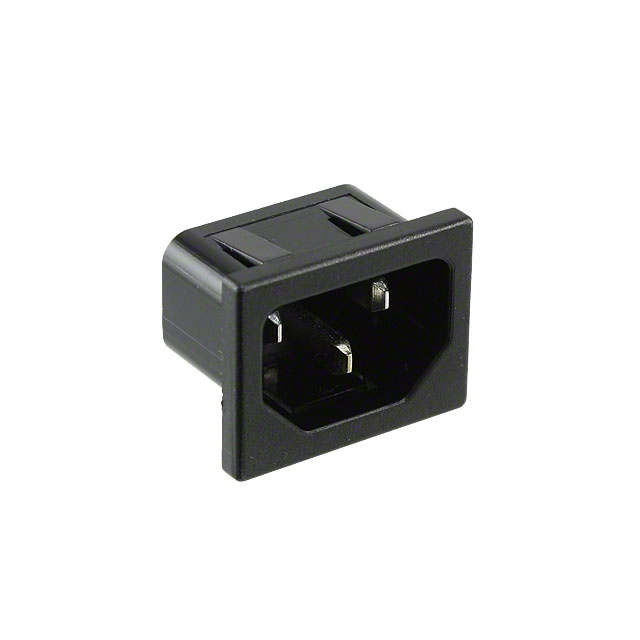

Qualtek 701W-15/21	1.5 mm	0.059 in	Unfiltered - Commercial	CCC CSA UL VDE	250 VAC	IEC 320-C14	Solder Eyelet	27.2 mm	19.7 mm	10 A	Panel Mount Snap-In	Receptacle Male Blades
Qualtek 701W-15/48	1.5 mm	0.059 in	Unfiltered - Commercial	CCC CSA UL VDE	250 VAC	IEC 320-C14	Solder Eyelet	26.7 mm	19.8 mm	10 A	Panel Mount Snap-In	Receptacle Male Blades

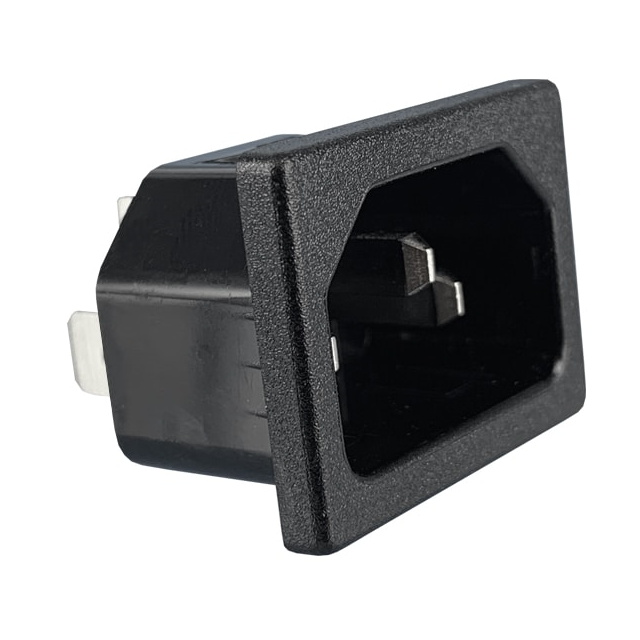

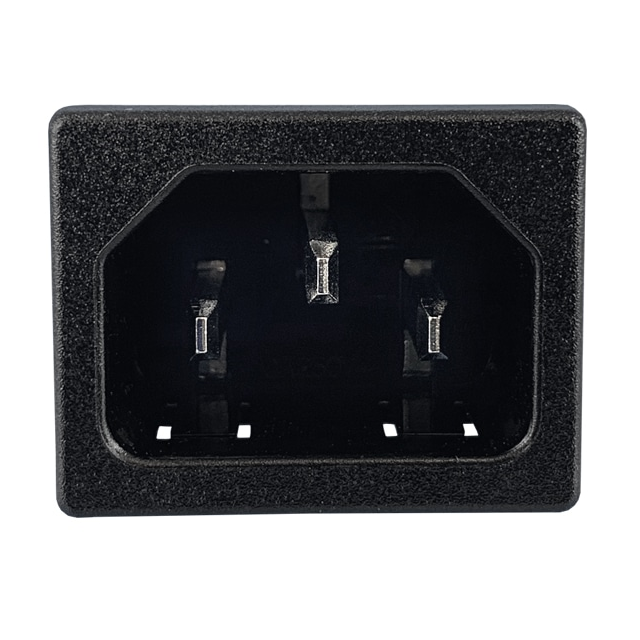

Qualtek 701W-15/26	1.5 mm	0.059 in	Unfiltered - Commercial	CCC CSA UL VDE	250 VAC	IEC 320-C14	Quick Connect	27.2 mm	19.7 mm	10 A	Panel Mount Snap-In	Receptacle Male Blades		0.189 "	4.8 mm
