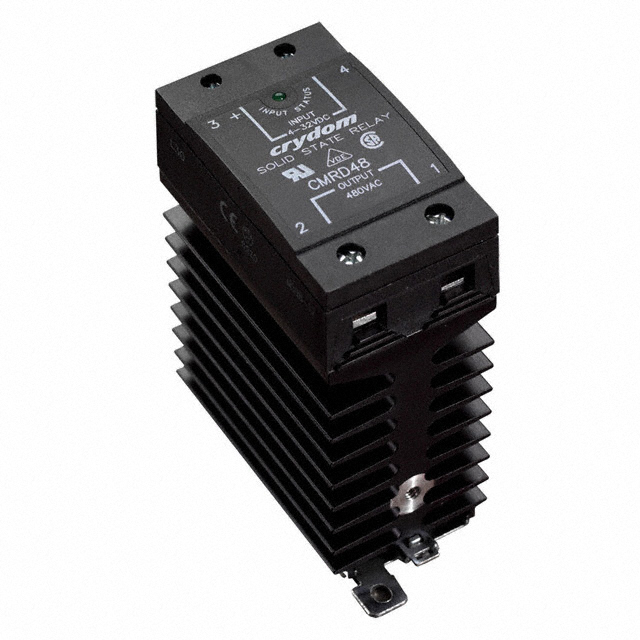

CMRD48 Series

Catalog

SSR RELAY SPST-NO 65A 48-530V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Approval Agency	Mounting Type	Load Current	Output Type	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style
Sensata-Crydom CMRD4865P-10	80 °C	-40 C	SSR with Integrated Heat Sink	CE CSA cURus	DIN Rail	65 A	AC	32 VDC	4 V	Screw Terminal
Sensata-Crydom CMRD4865	80 °C	-40 C	SSR with Integrated Heat Sink	CE CSA cURus	DIN Rail	65 A	AC Zero Cross	32 VDC	4 V	Screw Terminal

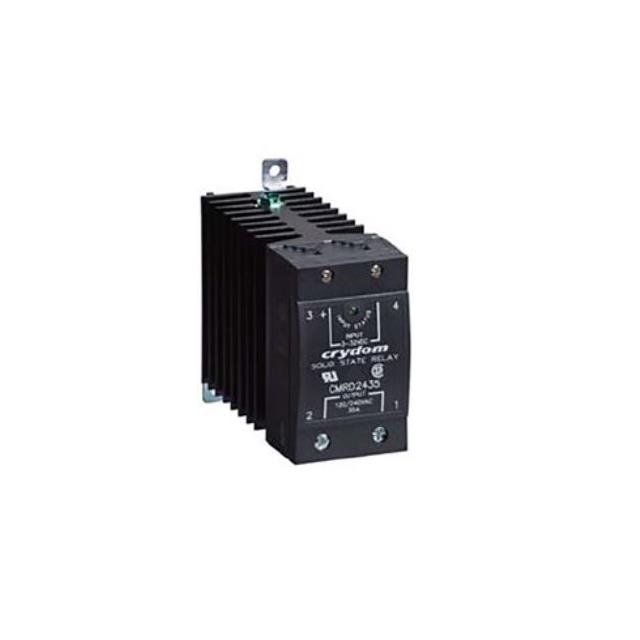

Sensata-Crydom CMRD4855-10	80 °C	-40 C	SSR with Integrated Heat Sink	CE CSA cURus	DIN Rail	55 A	AC	32 VDC	4 V	Screw Terminal
Sensata-Crydom CMRD4865P	80 °C	-40 C	SSR with Integrated Heat Sink	CE CSA cURus	DIN Rail	65 A	AC Zero Cross	32 VDC	4 V	Screw Terminal
Sensata-Crydom CMRD4865-10	80 °C	-40 C	SSR with Integrated Heat Sink	CE CSA cURus	DIN Rail	65 A	AC	32 VDC	4 V	Screw Terminal
Sensata-Crydom CMRD4835-10	80 °C	-40 C	SSR with Integrated Heat Sink	CE CSA cURus	DIN Rail	35 A	AC	32 VDC	4 V	Screw Terminal
Sensata-Crydom CMRD4845P	80 °C	-40 C	SSR with Integrated Heat Sink	CE CSA cURus	DIN Rail	45 A	AC Zero Cross	32 VDC	4 V	Screw Terminal
Sensata-Crydom CMRD4855	80 °C	-40 C	SSR with Integrated Heat Sink	CE CSA cURus	DIN Rail	55 A	AC Zero Cross	32 VDC	4 V	Screw Terminal
