5754 Series

Manufacturer: BRADY

Catalog

B689 5754-O WHT/GRN STYLE O

Part	Legend (Text)	Color - Legend	Print Type	Shape	Width [x]	Width [x]	Material - Body	Features	Mounting Type	Location	Language	Color - Background	Legend (Symbol Only)	Application Specifics	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Arrangement	Length	Length	Applications	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Width	Width	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Min) [Min]	Length [x]	Length [x]	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]
BRADY 5754-O	Roof Drain	White	Pre-Printed	Rectangle	127 mm	127 mm	Plastic	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Snap On	Outdoor	63000 A 69000 A	Green	Directional Arrow	Directionality	0.5 in	12.7 mm	Symbol and Text	8 in	203.2 mm	Pipe	34.93 mm	1.375 in

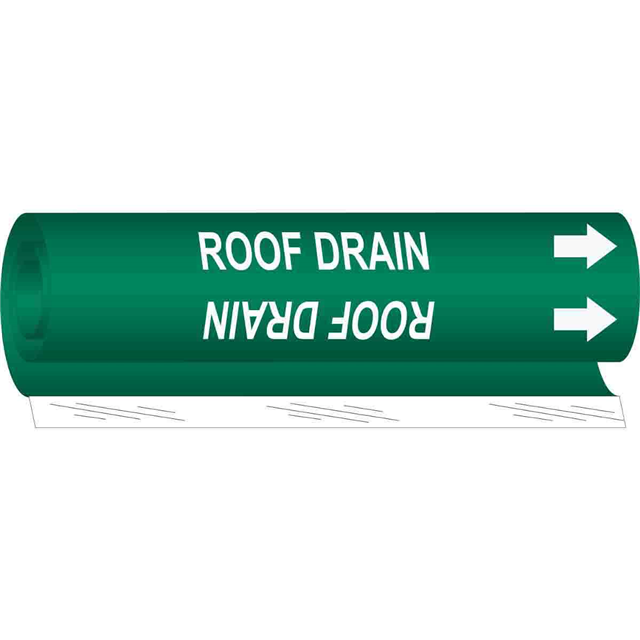

BRADY 5754-II	Roof Drain	White	Pre-Printed	Rectangle			Plastic	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Snap On	Outdoor	63000 A 69000 A	Green	Directional Arrow	Directionality			Symbol and Text			Pipe		7.875 in	304.8 mm	12 in	63.5 mm	2.5 in	200.03 mm	660.4 mm	26 in
BRADY 5754-I	Roof Drain	White	Pre-Printed	Rectangle			Plastic	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant		Outdoor	63000 A 69000 A	Green	Directional Arrow	Directionality			Text Only	9 in	228.6 mm	General	60.33 mm	2.375 in	203.2 mm	8 in						1.5 in	38.1 mm
