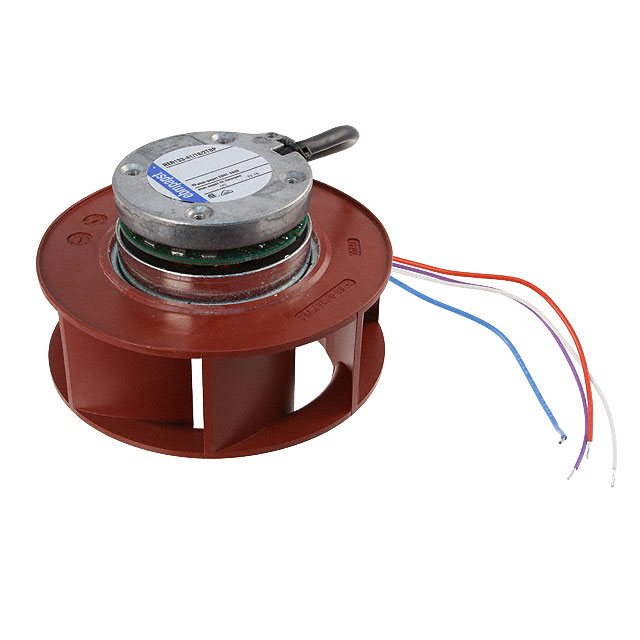

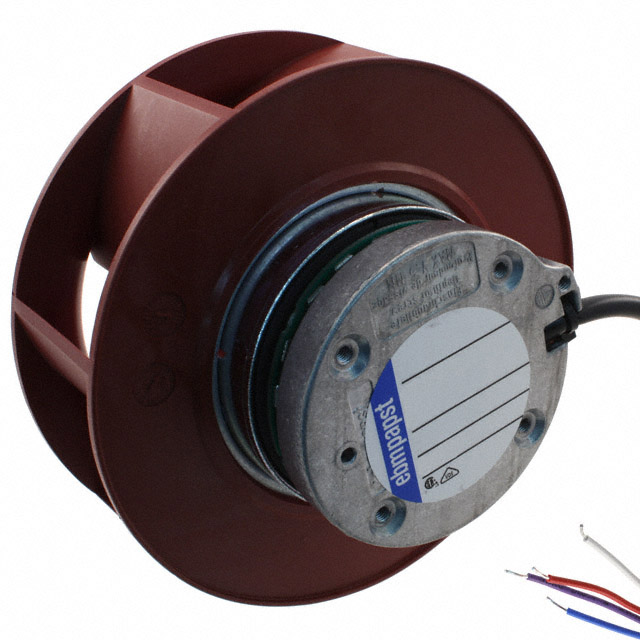

RER133 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
BLOWERS & CENTRIFUGAL FANS EC RADIAL BLOWER, 133X91MM, 48VDC, 332.4CFM, SPEED SIGNAL/OPEN COLLECTOR OUTPUT
| Part | Lifetime @ Temp. | Air Flow | Air Flow | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Power (Watts) | Termination | Bearing Type | Fan Type | Voltage - Rated | Weight | Weight | Width [x] | Features | RPM | Operating Temperature | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [diameter] | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 140000 Hrs | 332.4 CFM | 9.31 m³/min | Fiberglass Reinforced Plastic | 72 VDC | 36 VDC | 87 W | 4 Wire Leads | Ball | Motorized Impellers | 48 VDC | 907.2 g | 2 lbs | 91 mm | PWM Control Speed Sensor (Tach) | 6000 RPM | (-20 ~ 65°C) | -20 ░C | 65 °C | 133 mm | Round |
 ebm-papst Inc. | 145000 Hrs | 270.6 CFM | 7.58 m³/min | Fiberglass Reinforced Plastic | 30 V | 16 VDC | 50 W | 4 Wire Leads | Ball | Motorized Impellers | 24 VDC | 907.2 g | 2 lbs | 91 mm | PWM Control Speed Sensor (Tach) | 5000 RPM | (-20 ~ 65°C) | -20 ░C | 65 °C | 133 mm | Round |
