BZS55 Series

Catalog

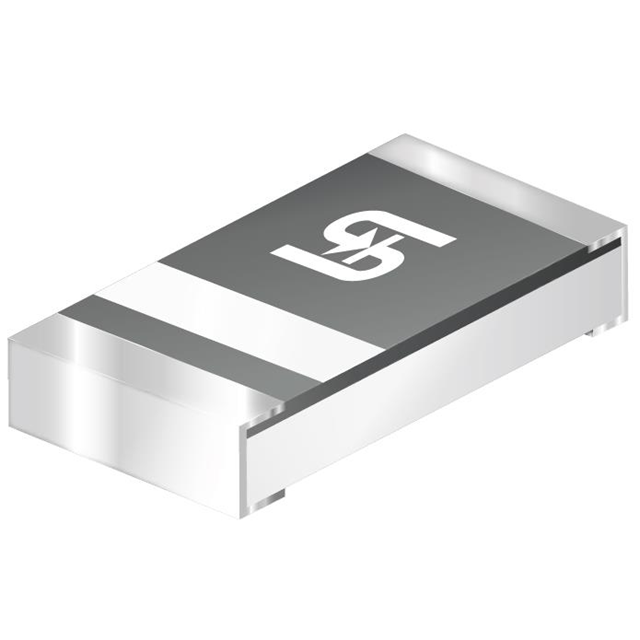

DIODE ZENER 20V 500MW 1206

Part	Supplier Device Package	Voltage - Zener (Nom) (Vz)	Operating Temperature [Max]	Operating Temperature [Min]	Impedance (Max) (Zzt) [Max]	Tolerance	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Power - Max [Max]	Mounting Type	Current - Reverse Leakage @ Vr
Taiwan Semiconductor Corporation BZS55C20 RAG	1206	20 V	150 °C	-55 °C	55 Ohms	5 %	1.5 V	1206 (3216 Metric)	500 mW	Surface Mount	100 nA
Taiwan Semiconductor Corporation BZS55C13 RAG	1206	13 V	150 °C	-55 °C	26 Ohms	5 %	1.5 V	1206 (3216 Metric)	500 mW	Surface Mount	100 nA
Taiwan Semiconductor Corporation BZS55C30 RAG	1206	30 V	150 °C	-55 °C		5 %	1.5 V	1206 (3216 Metric)	500 mW	Surface Mount	100 nA
Taiwan Semiconductor Corporation BZS55C3V3	1206	3.3 V	150 °C	-55 °C	85 Ohms	5 %	1.5 V	1206 (3216 Metric)	500 mW	Surface Mount	2 µA
Taiwan Semiconductor Corporation BZS55C24	1206	24 V	150 °C	-55 °C		5 %	1.5 V	1206 (3216 Metric)	500 mW	Surface Mount	100 nA
Taiwan Semiconductor Corporation BZS55C36	1206	36 V	150 °C	-55 °C		5 %	1.5 V	1206 (3216 Metric)	500 mW	Surface Mount	100 nA
Taiwan Semiconductor Corporation BZS55C3V6 RAG	1206	3.6 V	150 °C	-55 °C	85 Ohms	5 %	1.5 V	1206 (3216 Metric)	500 mW	Surface Mount	2 µA
Taiwan Semiconductor Corporation BZS55C24 RAG	1206	24 V	150 °C	-55 °C		5 %	1.5 V	1206 (3216 Metric)	500 mW	Surface Mount	100 nA
Taiwan Semiconductor Corporation BZS55C16	1206	16 V	150 °C	-55 °C	40 Ohms	5 %	1.5 V	1206 (3216 Metric)	500 mW	Surface Mount	100 nA
Taiwan Semiconductor Corporation BZS55C3V9	1206	3.9 V	150 °C	-55 °C	85 Ohms	5 %	1.5 V	1206 (3216 Metric)	500 mW	Surface Mount	2 µA
