LDS-A3923 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K

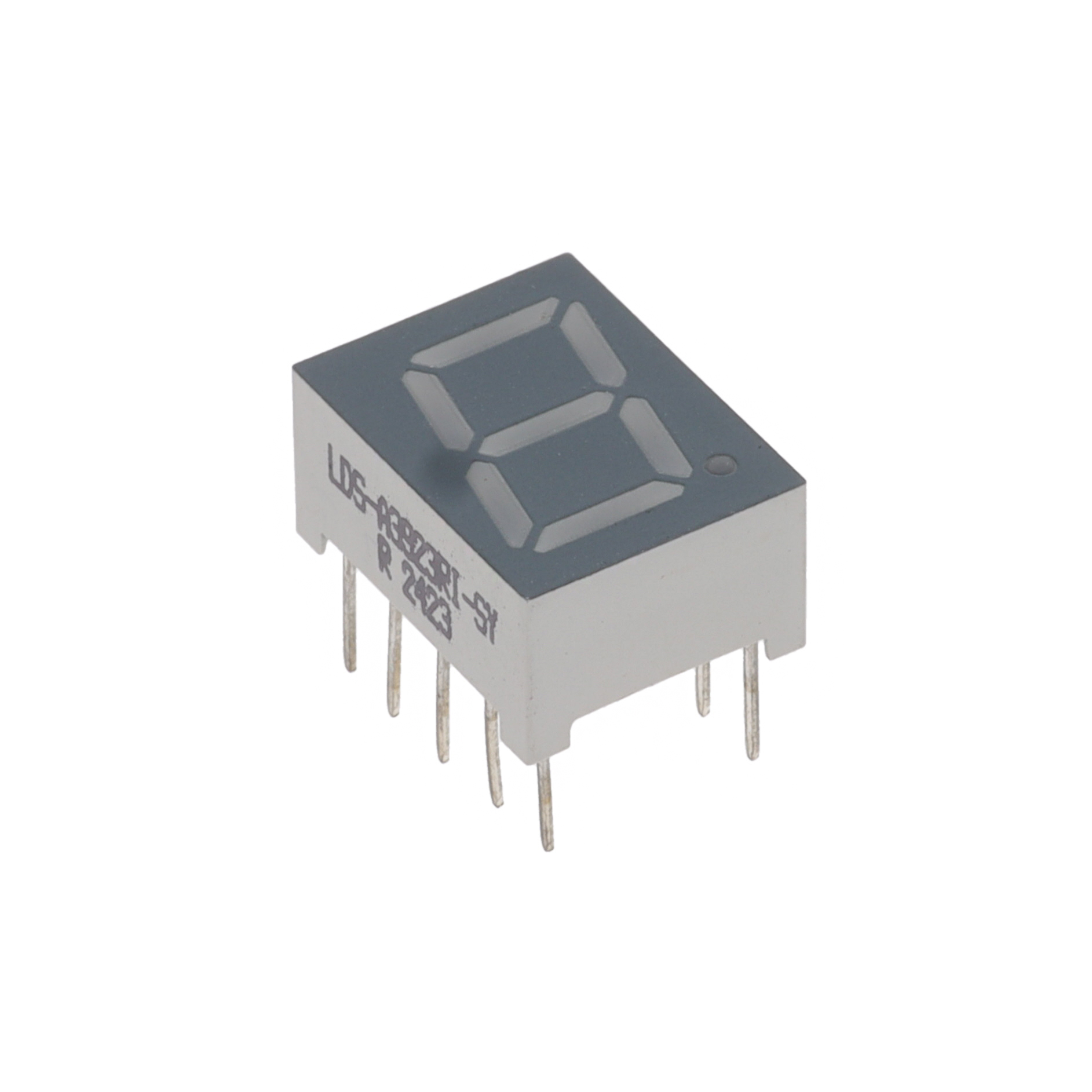

DISPLAY 7SEG 0.39" SGL YLW 10DIP
| Part | Color | Voltage - Forward (Vf) (Typ) | Display Type | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Power Dissipation (Max) [Max] | Current - Test | Number of Characters | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Common Pin | Wavelength - Peak | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | Yellow | 2 V | 7-Segment | 10-DIP (0.300" 7.62mm) | 9.9 mm | 0.39 in | 105 mW | 10 mA | 1 | 12.9 mm | 9.79 mm | 0.25 " | 0.385 " | 0.508 in | 6.36 mm | Common Anode | 590 nm | 13 mcd |
