SLLP40 Series

Catalog

SAFETY LIGHT CURTAIN, PL E, LEVEL 4, SIL3, CL3, 1.19 M, 12 M

Part	Operating Temperature [Max]	Operating Temperature [Min]	Protective Height [z]	Detection Capability	Operating Range [Min]	Operating Range [Max]	Voltage - Supply	Ingress Protection	Protection	Protective Height [custom]
BANNER ENGINEERING SLLP40-1190P88	55 °C	-20 ░C	1190 mm	40 mm	0.1 m	12 m	24 V	IP65 IP67	Arm/Foot
BANNER ENGINEERING SLLP40-700P88	55 °C	-20 ░C	700 mm	40 mm	0.1 m	12 m	24 V	IP65 IP67	Arm/Foot
BANNER ENGINEERING SLLP40-1260P88	55 °C	-20 ░C	1260 mm	40 mm	0.1 m	12 m	24 V	IP65 IP67	Arm/Foot

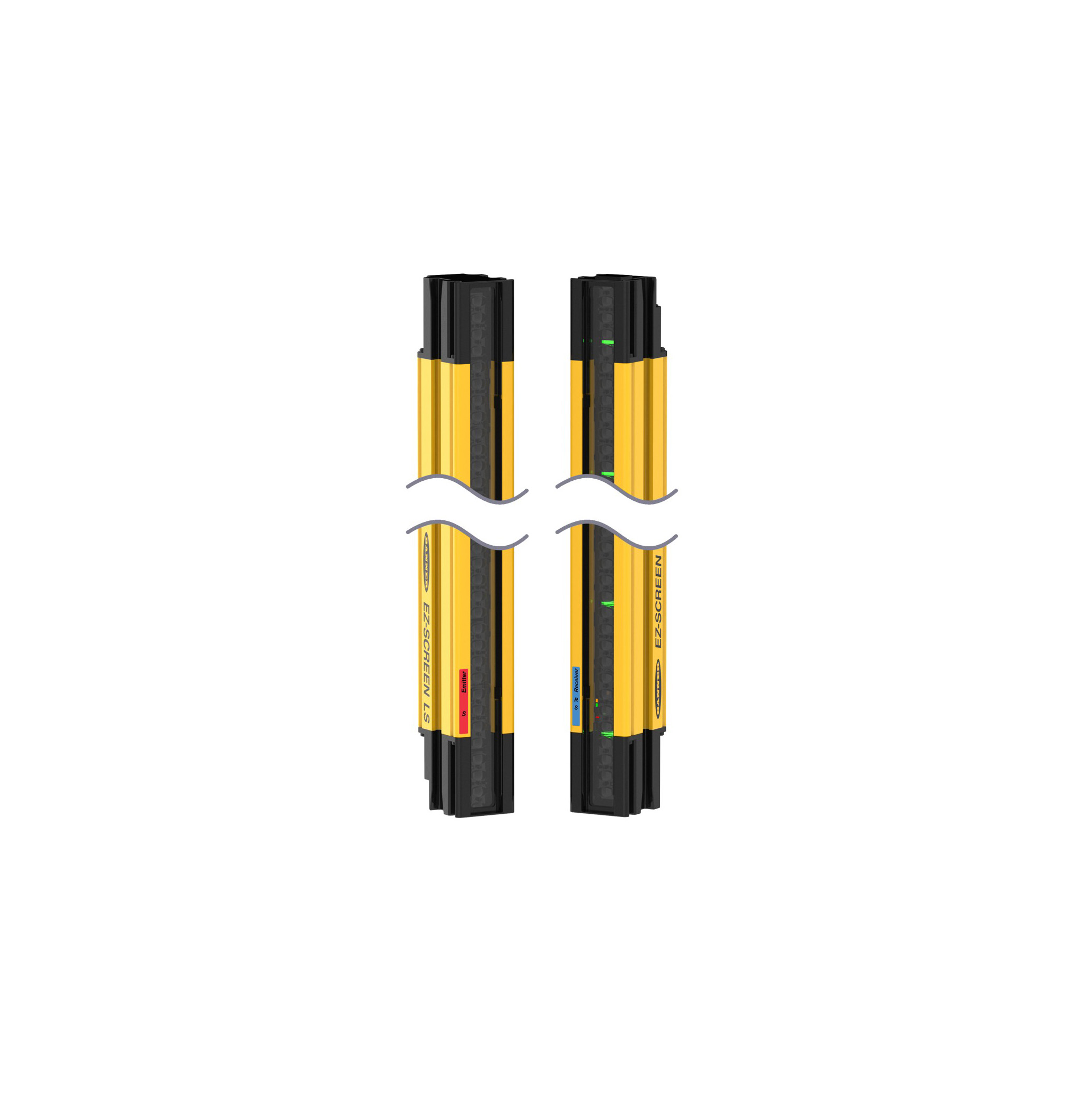

BANNER ENGINEERING SLLP40-840	55 °C	-20 ░C		40 mm	0.1 m	12 m	24 V	IP65 IP67	Hand/Arm	840 mm
BANNER ENGINEERING SLLP40-1120P88	55 °C	-20 ░C	1120 mm	40 mm	0.1 m	12 m	24 V	IP65 IP67	Arm/Foot
BANNER ENGINEERING SLLP40-1400P88	55 °C	-20 ░C	1470 mm	40 mm	0.1 m	12 m	24 V	IP65 IP67	Arm/Foot
BANNER ENGINEERING SLLP40-980P88	55 °C	-20 ░C	980 mm	40 mm	0.1 m	12 m	24 V	IP65 IP67	Arm/Foot
BANNER ENGINEERING SLLP40-1050P88	55 °C	-20 ░C	1050 mm	40 mm	0.1 m	12 m	24 V	IP65 IP67	Arm/Foot
BANNER ENGINEERING SLLP40-560P88	55 °C	-20 ░C		40 mm	0.1 m	12 m	24 V	IP65 IP67	Arm/Foot	560 mm
BANNER ENGINEERING SLLP40-1680P88	55 °C	-20 ░C	1.68 m	40 mm	0.1 m	12 m	24 V	IP65 IP67	Arm/Foot
