BU-P5167 Series
Manufacturer: Mueller Electric Co
Beta
⌘K

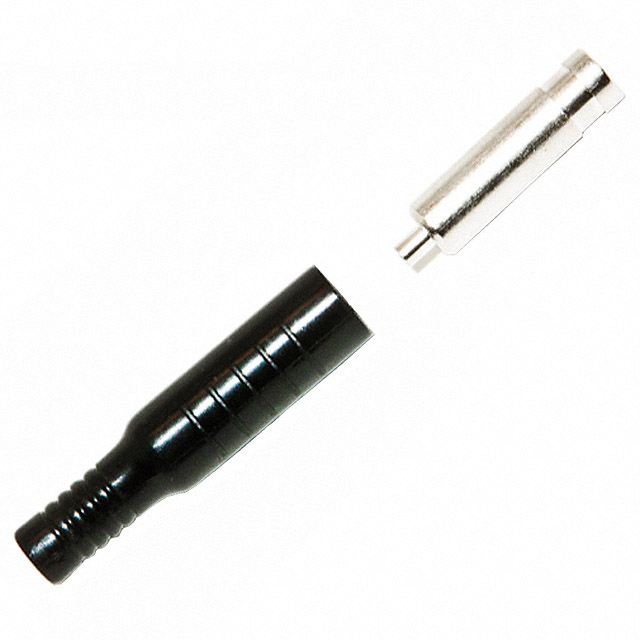

BANANA TEST CONNECTOR, JACK, CABLE MOUNT, 15 A, 5 KV, NICKEL PLATED CONTACTS, BLACK
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Material | Gender | Plug/Mating Plug Diameter | Type | Wire Gauge [Max] | Wire Gauge [Min] | Color | Insulation | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mueller Electric Co | Polyvinyl Chloride (PVC) | -70 °C | 50 °C | Nickel | Brass | Female | Standard Banana | Banana Jack | 22 AWG | 17.5 AWG | Black | Fully Insulated | Crimp or Solder | Free Hanging (In-Line) |

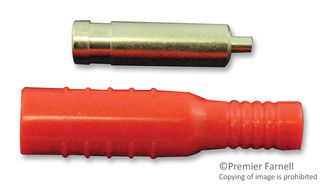

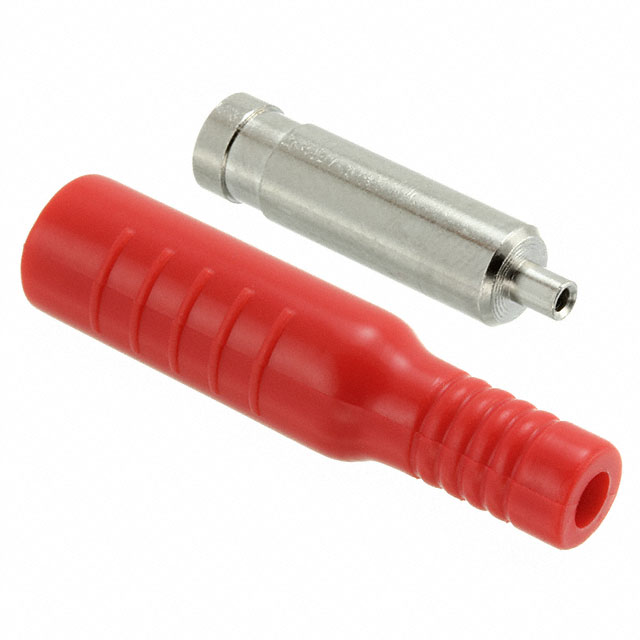

 Mueller Electric Co | Polyvinyl Chloride (PVC) | -70 °C | 50 °C | Nickel | Brass | Female | Standard Banana | Banana Jack | 22 AWG | 17.5 AWG | Red | Fully Insulated | Crimp or Solder | Free Hanging (In-Line) |
