LB26SKG01 Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Electrical Life	Mechanical Life	Voltage Rating - AC	Mounting Type	Switch Function	Voltage Rating - DC	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Voltage (Nominal)	Actuator Marking	Actuator Type	Illumination Type, Color	Type	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Current Rating (Amps)	Circuit
NKK Switches LB26SKG01-5F-JB	100000 Cycles	200000 Cycles	28 V	Panel Mount Snap-In	On-On	28 V	Solder Quick Connect - 0.110" (2.8mm)	16.2 mm	16.2 mm	2.1 VDC	No Marking	Button Square	Green LED	Illuminated Standard	50 °C	-25 °C	Clear	0.4 VA	DPDT
NKK Switches LB26SKG01-1D-A	100000 Cycles	200000 Cycles	28 V	Panel Mount Snap-In	On-On	28 V	Solder Quick Connect - 0.110" (2.8mm)	16.2 mm	16.2 mm	2 VDC	No Marking	Button Square	Amber LED	Illuminated Standard	50 °C	-25 °C	Black	0.4 VA	DPDT
NKK Switches LB26SKG01-5C24-JB	100000 Cycles	200000 Cycles	28 V	Panel Mount Snap-In	On-On	28 V	Solder Quick Connect - 0.110" (2.8mm)	16.2 mm	16.2 mm	24 V	No Marking	Button Square	LED Red	Illuminated Standard	50 °C	-25 °C	Clear	0.4 VA	DPDT
NKK Switches LB26SKG01-CF-B	100000 Cycles	200000 Cycles	28 V	Panel Mount Snap-In	On-On	28 V	Solder Quick Connect - 0.110" (2.8mm)	16.2 mm	16.2 mm	2 VDC 2.2 VDC	No Marking	Button Square	Green/Red LED	Illuminated Standard	50 °C	-25 °C	White	0.4 VA	DPDT

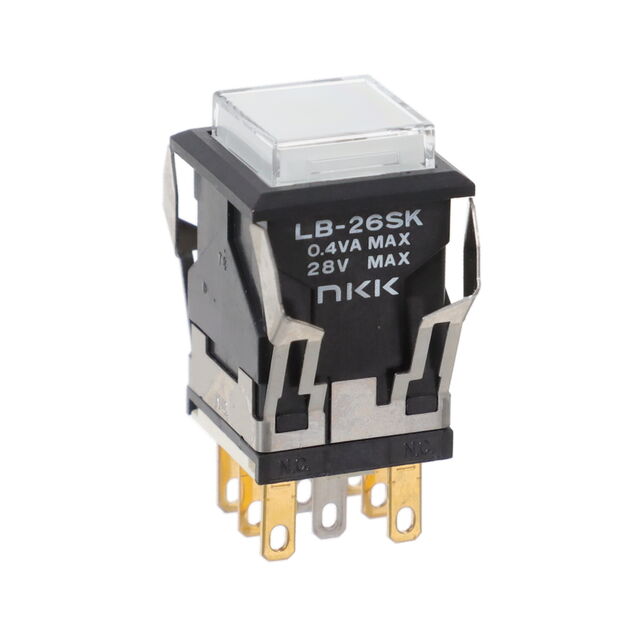

NKK Switches LB26SKG01-5D24-JB	100000 Cycles	200000 Cycles	28 V	Panel Mount Snap-In	On-On	28 V	Solder Quick Connect - 0.110" (2.8mm)	16.2 mm	16.2 mm	24 V	No Marking	Button Square	Amber LED	Illuminated Standard	50 °C	-25 °C	Clear	0.4 VA	DPDT

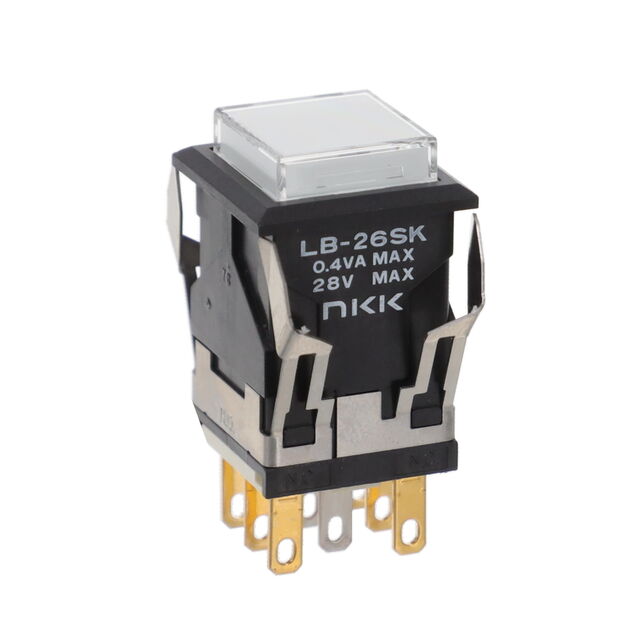

NKK Switches LB26SKG01-6B-JB	100000 Cycles	200000 Cycles	28 V	Panel Mount Snap-In	On-On	28 V	Solder Quick Connect - 0.110" (2.8mm)	16.2 mm	16.2 mm	3.3 VDC	No Marking	Button Square	LED White	Illuminated Standard	50 °C	-25 °C	Clear	0.4 VA	DPDT
NKK Switches LB26SKG01-C	100000 Cycles	200000 Cycles	28 V	Panel Mount Snap-In	On-On	28 V	Solder Quick Connect - 0.110" (2.8mm)	16.2 mm	16.2 mm		No Marking	Button Square		Standard	70 °C	-25 °C	Red	0.4 VA	DPDT
NKK Switches LB26SKG01-5F24-JF	100000 Cycles	200000 Cycles	28 V	Panel Mount Snap-In	On-On	28 V	Solder Quick Connect - 0.110" (2.8mm)	16.2 mm	16.2 mm	24 V	No Marking	Button Square	Green LED	Illuminated Standard	50 °C	-25 °C	Clear	0.4 VA	DPDT
NKK Switches LB26SKG01-5C24-JC	100000 Cycles	200000 Cycles	28 V	Panel Mount Snap-In	On-On	28 V	Solder Quick Connect - 0.110" (2.8mm)	16.2 mm	16.2 mm	24 V	No Marking	Button Square	LED Red	Illuminated Standard	50 °C	-25 °C	Clear	0.4 VA	DPDT
NKK Switches LB26SKG01-5C05-JC	100000 Cycles	200000 Cycles	28 V	Panel Mount Snap-In	On-On	28 V	Solder Quick Connect - 0.110" (2.8mm)	16.2 mm	16.2 mm	5 VDC	No Marking	Button Square	LED Red	Illuminated Standard	50 °C	-25 °C	Clear	0.4 VA	DPDT
