UB Series

Catalog

PUSHBUTTON SWITCHES 0.4VAMAX@28VAC/DCMAX DPDT ON ON AU RATED

Part	Mounting Type	Illumination Type, Color	Illumination Voltage (Nominal)	Circuit	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Features	Actuator Type	Type	Voltage Rating - AC	Color - Actuator/Cap	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating (Amps)	Termination Style	Voltage Rating - DC	Electrical Life	Mechanical Life	Lens Color	Lens Transparency	Lamp Color	Current	Voltage	Panel Cutout Shape	Lens Style
NKK Switches UB25NBKG015F-FF	Panel Mount Snap-In	Green LED	2.1 VDC	DPDT	No Marking	50 °C	-25 °C	On-Mom	With Barrier	Button Rectangular	Illuminated Standard	28 V	Green	16.2 mm	22.4 mm	0.4 VA	Solder Lug	28 V

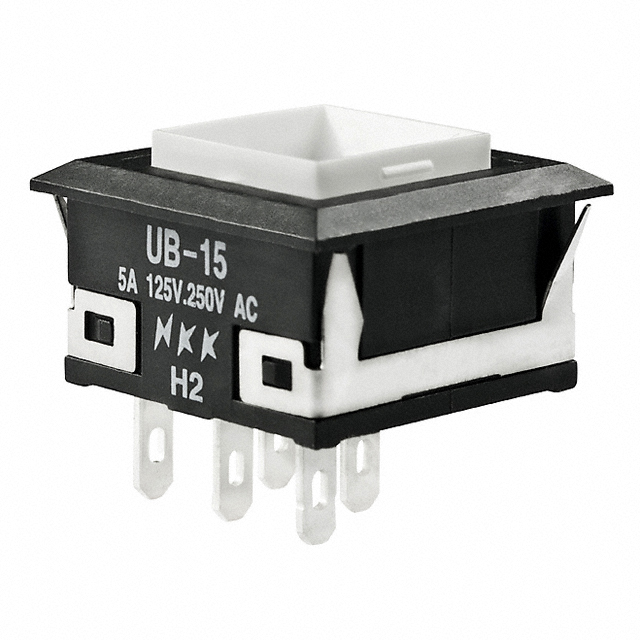

NKK Switches UB15KKW016G	Panel Mount Snap-In	Blue LED	2.9 VDC	SPDT	No Marking	50 °C	-25 °C	On-Mom	Photo Interrupter	Plunger for Cap	Illuminated Standard	125 V		16.2 mm	16.2 mm	5 A	Solder Lug	30 V	10000 Cycles	1000000 Cycles
NKK Switches UB15SKG035C-AB	Through Hole	LED Red	1.85 VDC	SPDT	No Marking	50 °C	-25 °C	On-Mom	Process Sealed	Button Square	Illuminated Standard	28 V	Black			0.4 VA	PC Pin	28 V	200000 Cycles	1000000 Cycles

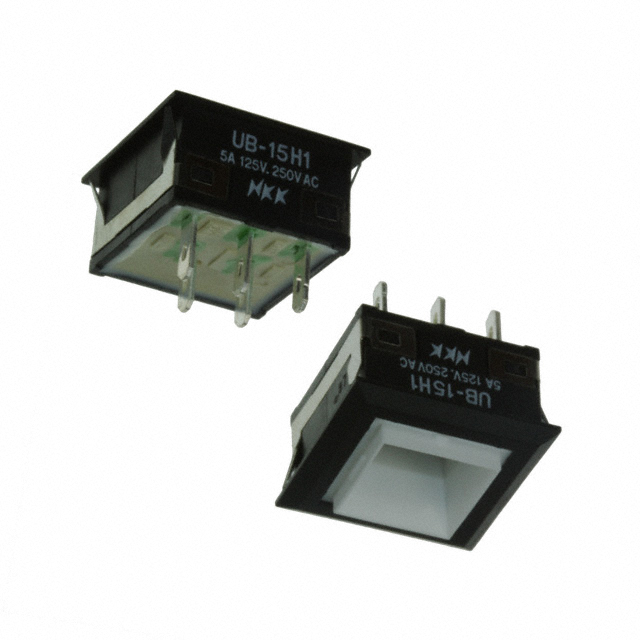

NKK Switches UB15KKW015D	Panel Mount Snap-In	Amber LED	2 VDC	SPDT	No Marking	50 °C	-25 °C	On-Mom	Overtravel Tactile Feedback	Plunger for Cap	Illuminated Standard	125 V		16.2 mm	16.2 mm	5 A	Solder Lug	30 V	10000 Cycles	1000000 Cycles
NKK Switches UB25KKG015D	Panel Mount Snap-In	Amber LED	2 VDC	DPDT	No Marking	50 °C	-25 °C	On-Mom	Sealed - Fully Stackable	Plunger for Cap	Illuminated Standard	28 V		16.2 mm	16.2 mm	0.4 VA	Solder Lug	28 V	200000 Cycles	1000000 Cycles
NKK Switches UB25NBKG015D-DD	Panel Mount Snap-In	Amber LED	2 VDC	DPDT	No Marking	50 °C	-25 °C	On-Mom	With Barrier	Button Rectangular	Illuminated Standard	28 V	Amber	16.2 mm	22.4 mm	0.4 VA	Solder Lug	28 V	200000 Cycles	1000000 Cycles
NKK Switches UB15SKW035D-DJ	Through Hole	Amber LED	2 VDC	SPDT	No Marking	50 °C	-25 °C	On-Mom	Process Sealed	Button Square	Illuminated Standard	125 V	Amber			5 A	PC Pin	30 V	10000 Cycles	1000000 Cycles
NKK Switches UB01KW035F-FF											LED						PC Pin				Green	Diffused	Green	25 mA	2.1 V	Square	Square with Flat Top

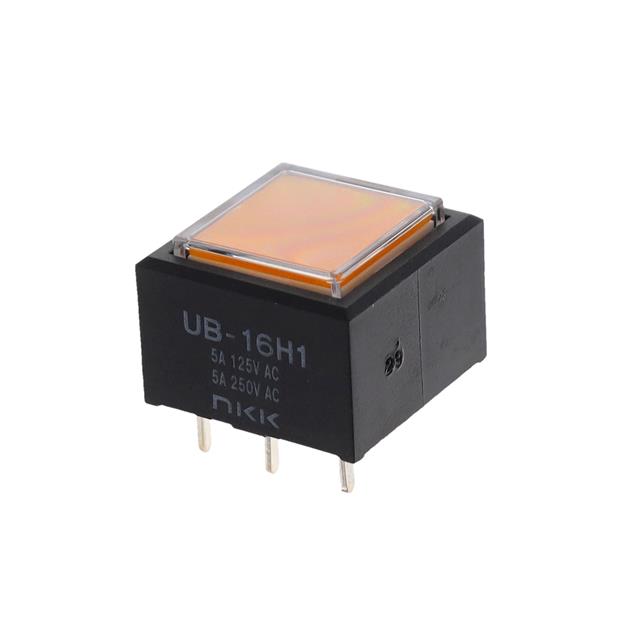

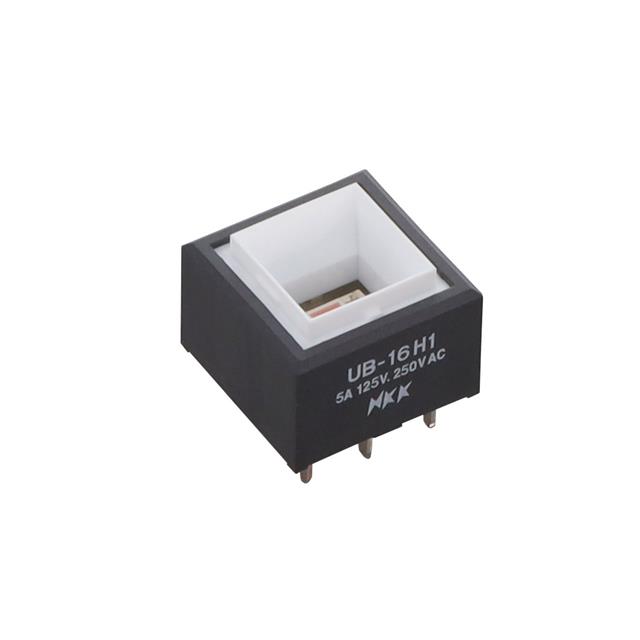

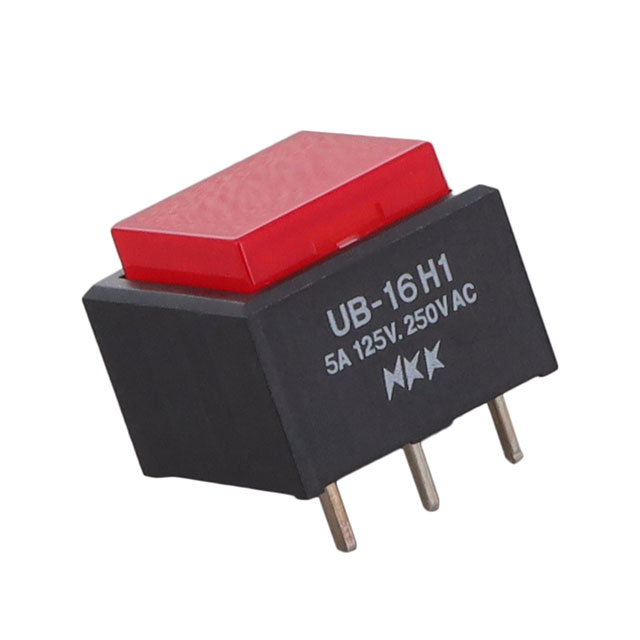

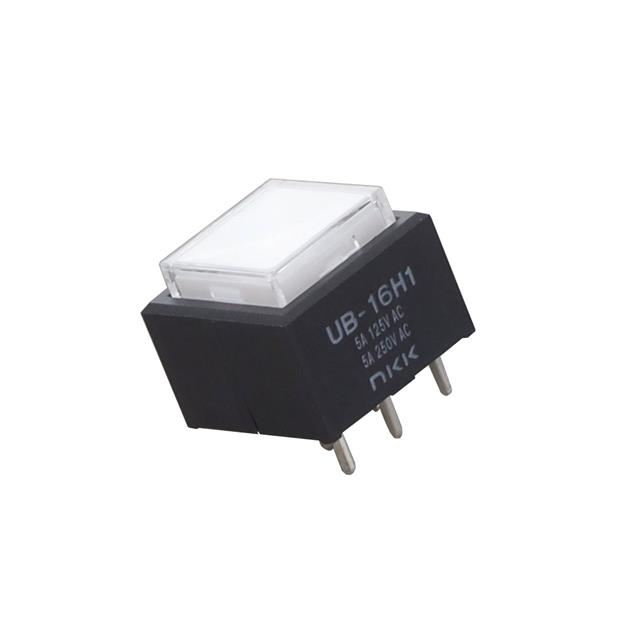

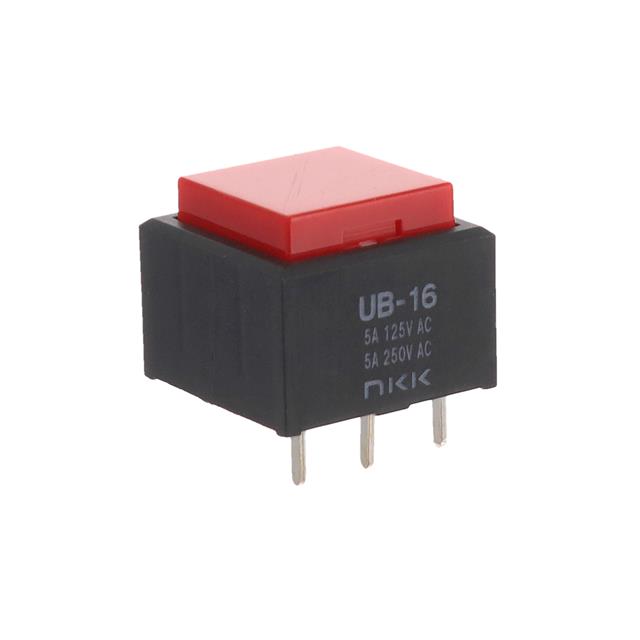

NKK Switches UB16KKW015C-CC	Panel Mount Snap-In	LED Red	1.85 VDC	SPDT	No Marking	50 °C	-25 °C	On-On	Process Sealed	Button Square	Illuminated Standard	125 V	Red	16.2 mm	16.2 mm	5 A	Solder Lug	30 V	10000 Cycles	200000 Cycles
NKK Switches UB15NBKW015F-JB	Panel Mount Snap-In	Green LED	2.1 VDC	SPDT	No Marking	50 °C	-25 °C	On-Mom	With Barrier	Button Rectangular	Illuminated Standard	125 V	Clear	16.2 mm	22.4 mm	5 A	Solder Lug	30 V
