L77DFE09 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

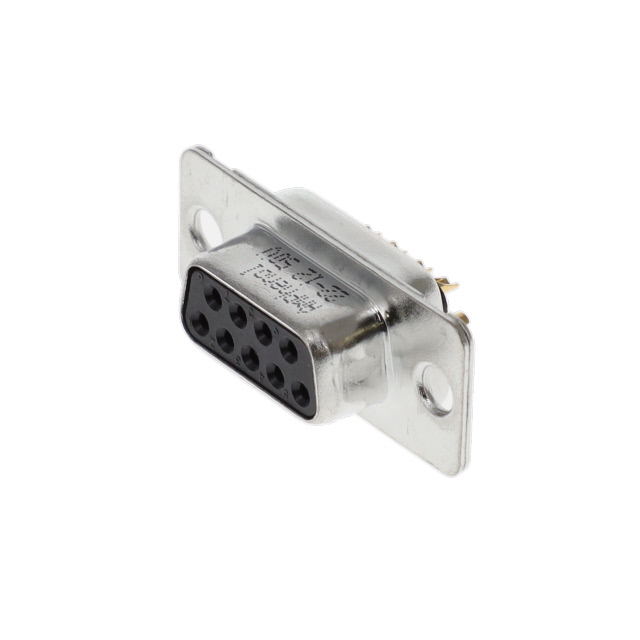

CONN D-SUB RCPT 9POS R/A SLDR
| Part | Color | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Backset Spacing | Backset Spacing | Contact Finish | Termination | Contact Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Mounting Type | Features | Flange Feature | Current Rating (Amps) | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | 10.3 mm | 0.406 in | Gold | Solder | Signal | 9 | 20 µin | 0.51 µm | 2 | Panel Mount Right Angle Through Hole | Mounting Brackets | Housing/Shell (Unthreaded) | 7.5 A | D-Sub | 1 | DE E | Receptacle Female Sockets | UL94 V-0 |
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | 8.1 mm | 0.319 in | Gold | Solder | Signal | 9 | 20 µin | 0.51 µm | 2 | Panel Mount Right Angle Through Hole | Board Lock Mounting Brackets | 4-40 Mating Side Female Screwlock | 7.5 A | D-Sub | 1 | DE E | Receptacle Female Sockets | UL94 V-0 |
Amphenol ICC (Commercial Products) | Black | Copper Alloy | 300 VDC | -55 C | 155 C | Thermoplastic Glass Filled | 8.1 mm | 0.319 in | Gold | Solder | Signal | 9 | 20 µin | 0.51 µm | 2 | Panel Mount Right Angle Through Hole | Mounting Brackets | Housing/Shell (Unthreaded) | 7.5 A | D-Sub | 1 | DE E | Receptacle Female Sockets | UL94 V-0 |
Amphenol ICC (Commercial Products) | Black | Copper Alloy | 300 VDC | -55 C | 155 C | Thermoplastic Glass Filled | 8.1 mm | 0.319 in | Gold | Solder | Signal | 9 | 20 µin | 0.51 µm | 2 | Panel Mount Right Angle Through Hole | Housing/Shell (Unthreaded) | 7.5 A | D-Sub | 1 | DE E | Receptacle Female Sockets | UL94 V-0 | |
Amphenol ICC (Commercial Products) | Black | Copper Alloy | 300 VDC | -55 C | 155 C | Thermoplastic Glass Filled | Gold | Solder | Signal | 9 | 20 µin | 0.51 µm | 2 | Panel Mount Through Hole | Housing/Shell (Unthreaded) | 7.5 A | D-Sub | 1 | DE E | Receptacle Female Sockets | UL94 V-0 | |||
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | Gold | Signal | 9 | 20 µin | 0.51 µm | 2 | Panel Mount | Housing/Shell (Unthreaded) | 7.5 A | D-Sub | 1 | DE E | Receptacle Female Sockets | UL94 V-0 | ||||
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | Gold | Wire Wrap | Signal | 9 | 20 µin | 0.51 µm | 2 | Panel Mount Through Hole | Housing/Shell (Unthreaded) | 7.5 A | D-Sub | 1 | DE E | Receptacle Female Sockets | UL94 V-0 | |||
Amphenol ICC (Commercial Products) | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | 10.3 mm | 0.406 in | Gold | Solder | Signal | 9 | 20 µin | 0.51 µm | 2 | Panel Mount Right Angle Through Hole | Mounting Brackets | Housing/Shell (Unthreaded) | 7.5 A | D-Sub | 1 | DE E | Receptacle Female Sockets | UL94 V-0 |
Amphenol ICC (Commercial Products) | Black | Copper Alloy | 300 VDC | -55 C | 155 C | Thermoplastic Glass Filled | 8.1 mm | 0.319 in | Gold | Solder | Signal | 9 | 20 µin | 0.51 µm | 2 | Panel Mount Right Angle Through Hole | Mounting Brackets | Housing/Shell (Unthreaded) | 7.5 A | D-Sub | 1 | DE E | Receptacle Female Sockets | UL94 V-0 |
 Amphenol ICC (Commercial Products) | Black | Copper Alloy | 300 VDC | -55 C | 125 °C | Thermoplastic Glass Filled | Gold | Solder | Signal | 9 | 20 µin | 0.51 µm | 2 | Panel Mount Through Hole | Housing/Shell (Unthreaded) | 7.5 A | D-Sub | 1 | DE E | Receptacle Female Sockets | UL94 V-0 |
