391-019 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 19POS 0.100
| Part | Termination Rows | Material - Insulation | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Mounting Type | Number of Rows | Contact Type | Card Type | Termination | Card Thickness [Max] | Card Thickness [Min] | Gender | Color | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Pitch | Pitch | Contact Finish | Number of Positions/Bay/Row | Read Out |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

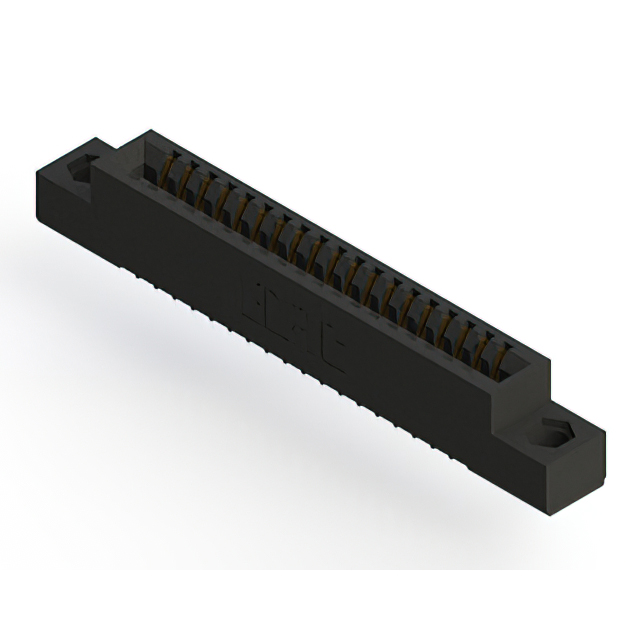

 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 1 | Semi Bellows | Non Specified - Single Edge | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Black | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.1 " | 2.54 mm | Gold | 19 | Single |

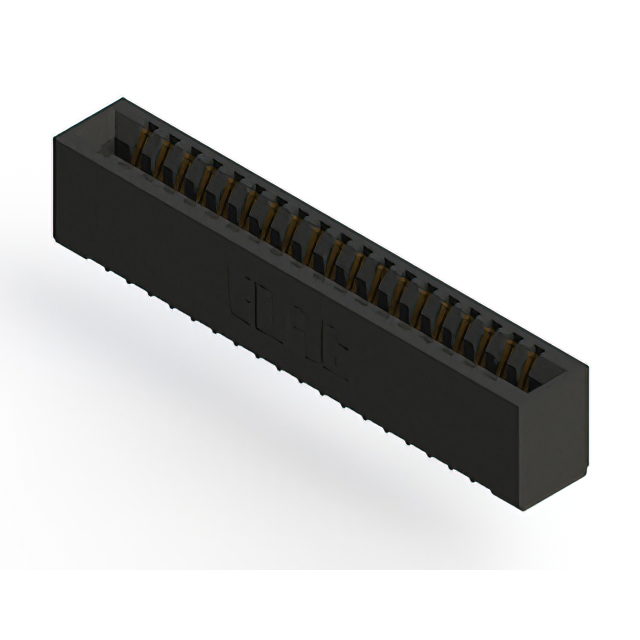

 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 1 | Semi Bellows | Non Specified - Single Edge | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Black | -40 C | 105 ░C | 0.1 " | 2.54 mm | Gold | 19 | Single | |||

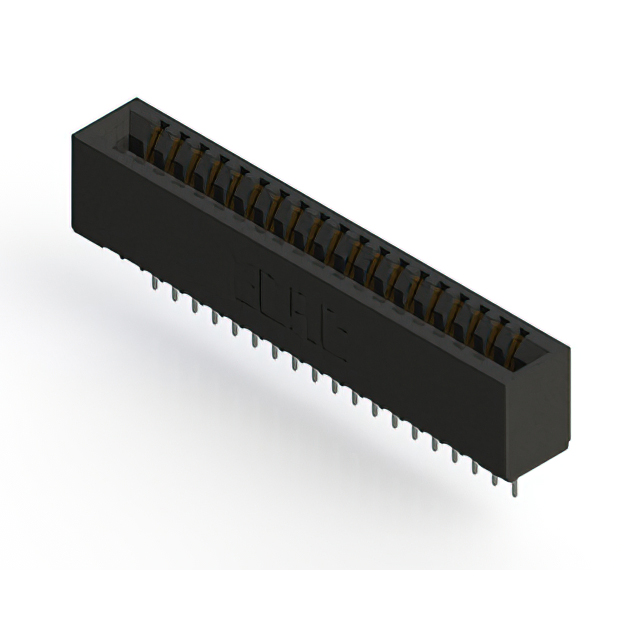

 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 1 | Semi Bellows | Non Specified - Single Edge | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Black | -40 C | 105 ░C | 0.1 " | 2.54 mm | Gold | 19 | Single | |||

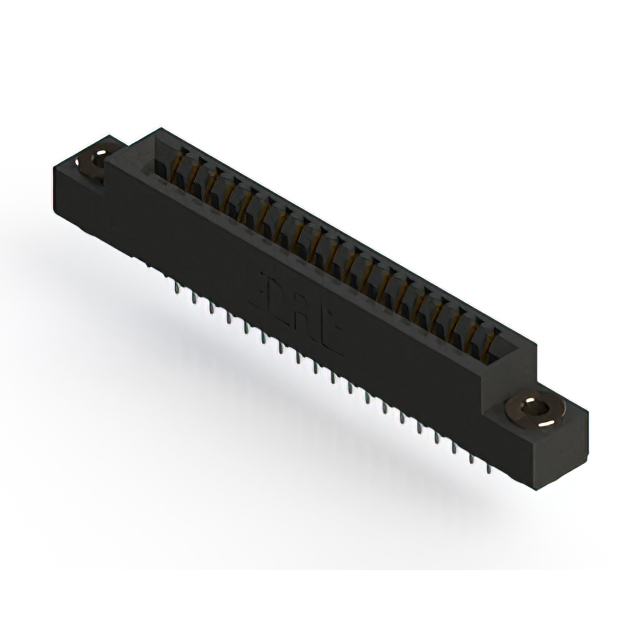

 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 1 | Semi Bellows | Non Specified - Single Edge | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Black | -40 C | 105 ░C | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 0.1 " | 2.54 mm | Gold | 19 | Single |
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 1 | Semi Bellows | Non Specified - Single Edge | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Black | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 0.1 " | 2.54 mm | Gold | 19 | Single | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 1 | Semi Bellows | Non Specified - Single Edge | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Black | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | 0.1 " | 2.54 mm | Gold | 19 | Single | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 1 | Semi Bellows | Non Specified - Single Edge | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Black | -40 C | 105 ░C | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 0.1 " | 2.54 mm | Gold | 19 | Single |
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 1 | Semi Bellows | Non Specified - Single Edge | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Black | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 0.1 " | 2.54 mm | Gold | 19 | Single | ||

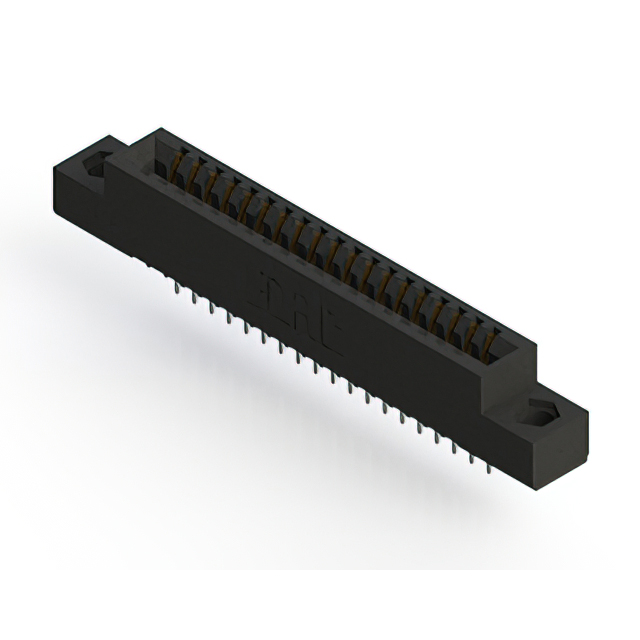

 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 1 | Semi Bellows | Non Specified - Single Edge | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Black | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | 0.1 " | 2.54 mm | Gold | 19 | Single |
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 1 | Semi Bellows | Non Specified - Single Edge | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Black | -40 C | 105 ░C | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 0.1 " | 2.54 mm | Gold | 19 | Single |
