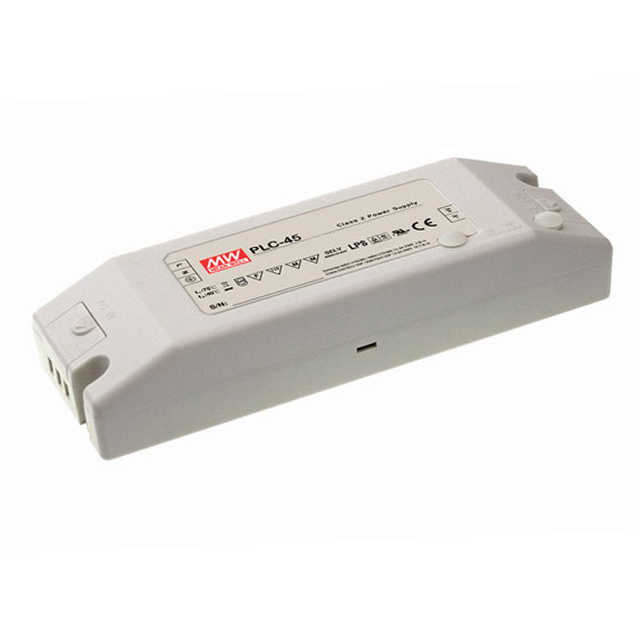

PLC-45 Series

Catalog

LED DRVR CC AC/DC 27-36V 1.25A

Part	Mounting Type	Voltage - Output [Max]	Voltage - Output [Min]	Current - Output (Max) [Max]	Features	Voltage - Input (Max) [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Approval Agency	Number of Outputs	Topology	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Termination Style	Voltage - Input (Min) [Min]
MEAN WELL USA Inc. PLC-45-36	Chassis Mount	36 V	27 V	1.25 A	OCP OTP OVP SCP	264 VAC	45 W	7.15 in	35 mm	2.44 "	181.5 mm	1.38 in	62 mm	Constant Current	CB CCC CE cURus ENEC PSE TUV	1	AC DC Converter	87.5 %	-30 ░C	50 °C	3750 VDC	Terminal Block	90 VAC
MEAN WELL USA Inc. PLC-45-24	Chassis Mount	24 V	18 V	1.9 A	OCP OTP OVP SCP	264 VAC	46 W	7.15 in	35 mm	2.44 "	181.5 mm	1.38 in	62 mm	Constant Current	CB CCC CE cURus ENEC PSE TUV	1	AC DC Converter	86.5 %	-30 ░C	50 °C	3750 VDC	Terminal Block	90 VAC
MEAN WELL USA Inc. PLC-45-20	Chassis Mount	20 V	15 V	2.3 A	OCP OTP OVP SCP	264 VAC	46 W	7.15 in	35 mm	2.44 "	181.5 mm	1.38 in	62 mm	Constant Current	CB CCC CE cURus ENEC PSE TUV	1	AC DC Converter	86.5 %	-30 ░C	50 °C	3750 VDC	Terminal Block	90 VAC
MEAN WELL USA Inc. PLC-45-12	Chassis Mount	12 V	9 V	3.8 A	OCP OTP OVP SCP	264 VAC	46 W	7.15 in	35 mm	2.44 "	181.5 mm	1.38 in	62 mm	Constant Current	CB CCC CE cURus ENEC PSE TUV	1	AC DC Converter	83.5 %	-30 ░C	50 °C	3750 VDC	Terminal Block	90 VAC
