ERZ-VS34 Series

Catalog

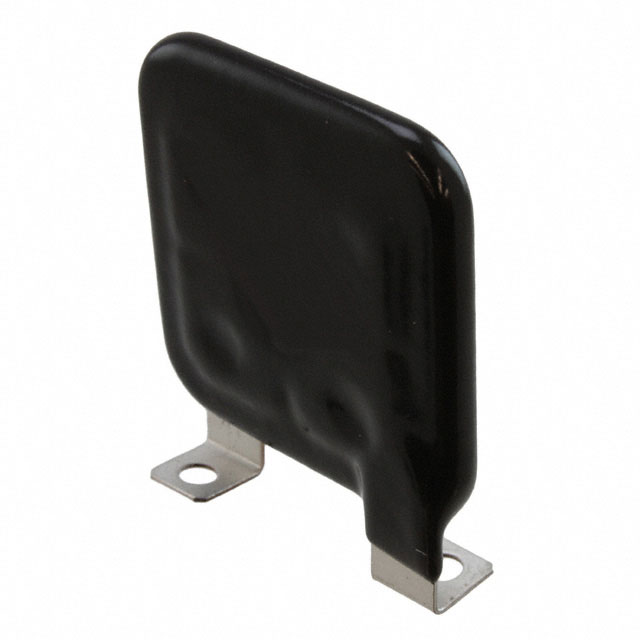

VARISTOR 470V 40KA SQUARE 36MM

Part	Package / Case	Varistor Voltage (Typ)	Maximum AC Volts	Varistor Voltage (Min) [Min]	Mounting Type	Number of Circuits	Varistor Voltage (Max) [Max]	Maximum DC Volts [Max]	Current - Surge	Maximum DC Volts	Maximum AC Volts [Max]
Panasonic Industrial Automation Sales ERZ-VS34C471	Square 36mm Formed Tabs	470 V	300 V	423 V	Chassis Mount	1	517 V	385 V	40 kA
Panasonic Industrial Automation Sales ERZ-VS34C821	Square 36mm Formed Tabs	820 V		738 V	Chassis Mount	1	902 V		40 kA	670 V	510 V
Panasonic Industrial Automation Sales ERZ-VS34C621	Square 36mm Formed Tabs	620 V	385 V	558 V	Chassis Mount	1		505 V	40 kA
Panasonic Industrial Automation Sales ERZ-VS34C431	Square 36mm Formed Tabs	430 V		387 V	Chassis Mount	1	473 V	350 V	40 kA		275 V
Panasonic Industrial Automation Sales ERZ-VS34C951	Square 36mm Formed Tabs	950 V		855 V	Chassis Mount	1	1.045 kV	765 V	40 kA		575 V
Panasonic Industrial Automation Sales ERZ-VS34C201	Square 36mm Formed Tabs	200 V		185 V	Chassis Mount	1	225 V	170 V	40 kA		130 V
