737-034 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 34POS 0.156

Part	Material - Insulation	Termination Rows	Contact Finish	Termination	Color	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Read Out	Card Type	Mounting Type	Contact Type	Contact Material	Number of Rows	Pitch	Pitch	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Termination Rows [custom]	Number of Rows [custom]	Number of Positions/Bay/Row [custom]
EDAC Inc. 737-034-541-106	Polyester Thermoplastic	1	Gold	Press-Fit Wire Wrap	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34	30 Áin	0.76 Ám	Single	Non Specified - Single Edge	Through Hole	Cantilever	Copper Alloy	1	3.96 mm	0.156 in	Female	-40 C	105 ░C	34

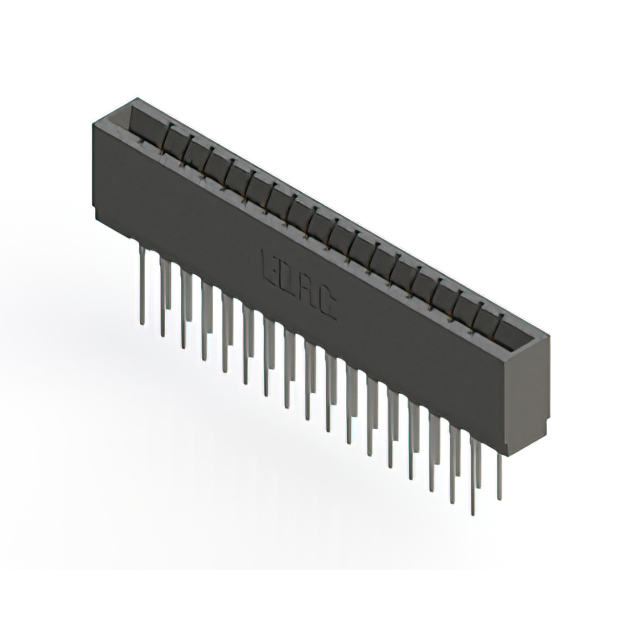

EDAC Inc. 737-034-545-201	Polyester Thermoplastic		Gold	Press-Fit Wire Wrap	Black	0.07 in 1.78 mm	0.054 in 1.37 mm		30 Áin	0.76 Ám	Dual	Non Specified - Dual Edge	Through Hole	Cantilever	Copper Alloy		3.96 mm	0.156 in	Female	-40 C	105 ░C	34	2	2	17
EDAC Inc. 737-034-520-106	Polyester Thermoplastic	1	Gold	Press-Fit	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34	30 Áin	0.76 Ám	Single	Non Specified - Single Edge	Through Hole	Cantilever	Copper Alloy	1	3.96 mm	0.156 in	Female	-40 C	105 ░C	34
EDAC Inc. 737-034-545-106	Polyester Thermoplastic	1	Gold	Press-Fit Wire Wrap	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34	30 Áin	0.76 Ám	Single	Non Specified - Single Edge	Through Hole	Cantilever	Copper Alloy	1	3.96 mm	0.156 in	Female	-40 C	105 ░C	34
EDAC Inc. 737-034-522-201	Polyester Thermoplastic		Gold	Press-Fit	Black	0.07 in 1.78 mm	0.054 in 1.37 mm		30 Áin	0.76 Ám	Dual	Non Specified - Dual Edge	Through Hole	Cantilever	Copper Alloy		3.96 mm	0.156 in	Female	-40 C	105 ░C	34	2	2	17
EDAC Inc. 737-034-522-206	Polyester Thermoplastic		Gold	Press-Fit	Black	0.07 in 1.78 mm	0.054 in 1.37 mm		30 Áin	0.76 Ám	Dual	Non Specified - Dual Edge	Through Hole	Cantilever	Copper Alloy		3.96 mm	0.156 in	Female	-40 C	105 ░C	34	2	2	17
EDAC Inc. 737-034-541-201	Polyester Thermoplastic		Gold	Press-Fit Wire Wrap	Black	0.07 in 1.78 mm	0.054 in 1.37 mm		30 Áin	0.76 Ám	Dual	Non Specified - Dual Edge	Through Hole	Cantilever	Copper Alloy		3.96 mm	0.156 in	Female	-40 C	105 ░C	34	2	2	17

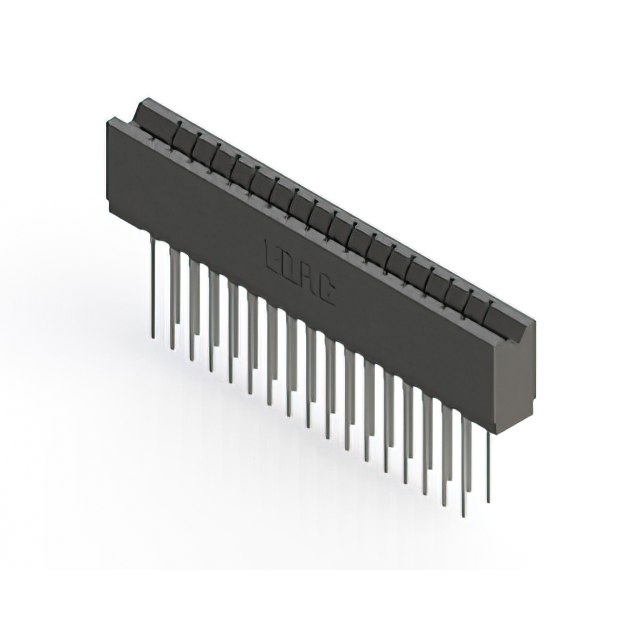

EDAC Inc. 737-034-541-206	Polyester Thermoplastic		Gold	Press-Fit Wire Wrap	Black	0.07 in 1.78 mm	0.054 in 1.37 mm		30 Áin	0.76 Ám	Dual	Non Specified - Dual Edge	Through Hole	Cantilever	Copper Alloy		3.96 mm	0.156 in	Female	-40 C	105 ░C	34	2	2	17
EDAC Inc. 737-034-525-206	Polyester Thermoplastic		Gold	Press-Fit	Black	0.07 in 1.78 mm	0.054 in 1.37 mm		30 Áin	0.76 Ám	Dual	Non Specified - Dual Edge	Through Hole	Cantilever	Copper Alloy		3.96 mm	0.156 in	Female	-40 C	105 ░C	34	2	2	17

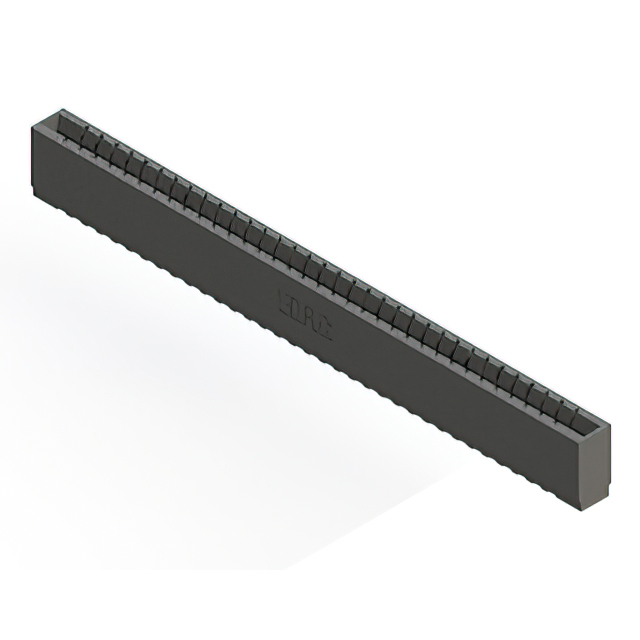

EDAC Inc. 737-034-520-101	Polyester Thermoplastic	1	Gold	Press-Fit	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34	30 Áin	0.76 Ám	Single	Non Specified - Single Edge	Through Hole	Cantilever	Copper Alloy	1	3.96 mm	0.156 in	Female	-40 C	105 ░C	34
