87547 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

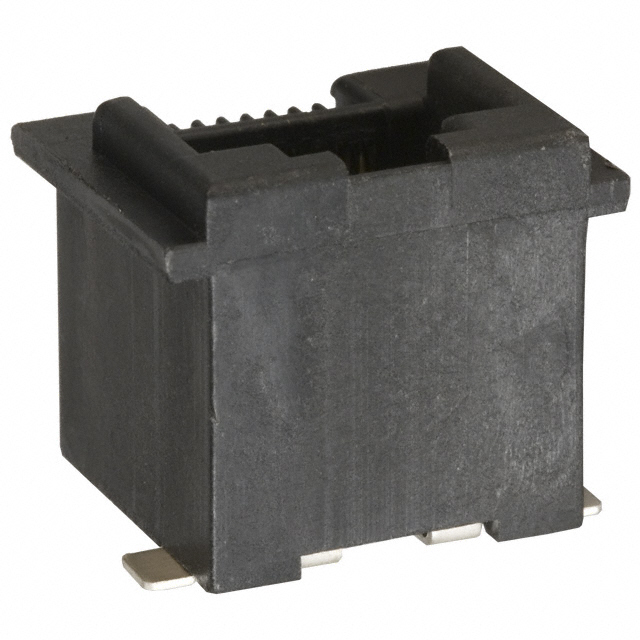

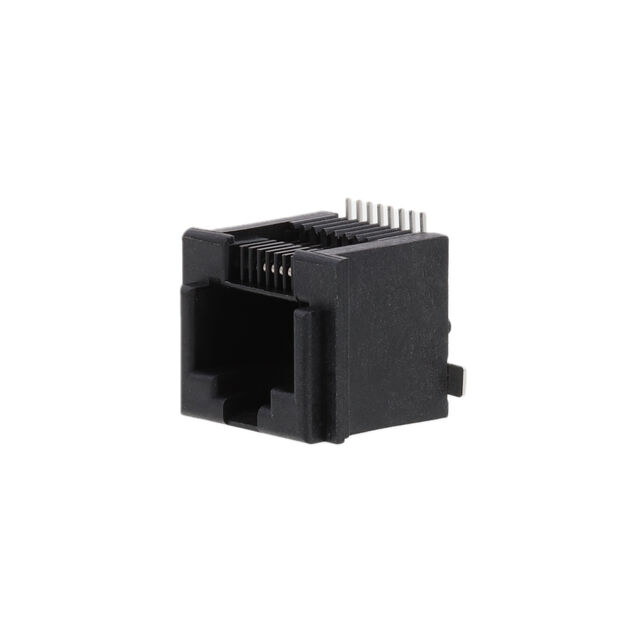

CONN MOD JACK 8P8C
| Part | Mounting Type | Tab Direction | Shielding | Contact Finish Thickness | Contact Finish Thickness | Ratings | Termination | Contact Material | Housing Material | Orientation | Number of Rows | Features | Connector Type | Number of Positions/Contacts | LED Color | Number of Ports | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Surface Mount | User Selectable | Unshielded | 0.76 Ám | 30 Áin | Cat3 | Solder | Phosphor Bronze | Thermoplastic | Vertical | 1 | Board Guide Panel Stops Solder Retention | Jack | 8p8c (RJ45 Ethernet) | Does Not Contain LED | 1 | Gold | -40 °C | 70 °C |
Amphenol ICC (FCI) | Surface Mount | User Selectable | Unshielded | 0.76 Ám | 30 Áin | Cat3 | Solder | Phosphor Bronze | Thermoplastic | Vertical | 1 | Board Guide Panel Stops Solder Retention | Jack | 8p8c (RJ45 Ethernet) | Does Not Contain LED | 1 | Gold | -40 °C | 70 °C |
Amphenol ICC (FCI) | Surface Mount | User Selectable | Unshielded | 0.76 Ám | 30 Áin | Cat3 | Solder | Phosphor Bronze | Thermoplastic | Vertical | 1 | Board Guide Panel Stops Solder Retention | Jack | 8p8c (RJ45 Ethernet) | Does Not Contain LED | 1 | Gold | -40 °C | 70 °C |
Amphenol ICC (FCI) | Surface Mount | User Selectable | Unshielded | 0.76 Ám | 30 Áin | Cat3 | Solder | Phosphor Bronze | Thermoplastic | Vertical | 1 | Board Guide Panel Stops Solder Retention | Jack | 8p8c (RJ45 Ethernet) | Does Not Contain LED | 1 | Gold | -40 °C | 70 °C |
 Amphenol ICC (FCI) | Surface Mount | User Selectable | Unshielded | 0.76 Ám | 30 Áin | Cat3 | Solder | Phosphor Bronze | Thermoplastic | Vertical | 1 | Board Guide Panel Stops Solder Retention | Jack | 8p8c (RJ45 Ethernet) | Does Not Contain LED | 1 | Gold | -40 °C | 70 °C |
